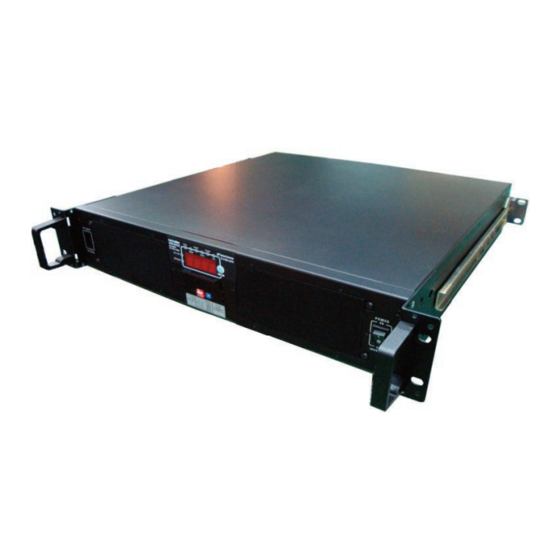

YK- UIPSW2KVA Series
Pure Sine Wave Inverter
User Manual
YK-UIPSW122KVA/E
YK-UIPSW242KVA/E
YK-UIPSW482KVA/E
YK-UIPSW1102KVA/E
YK-UIPSW2202KVA/E
klick to
www
Y O U R C O N N E C T I O N TO S A F E T Y
Y O U R C O N N E C T I O N TO S A F E T Y
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
klick to
www
www
Y O U R C O N N E C T I O N TO S A F E T Y
CONTACT
CALLBACK
Y O U R C O N N E C T I O N TO S A F E T Y
Advertisement
Related Manuals for Thiele YK-UIPSW2KVA Series
Summary of Contents for Thiele YK-UIPSW2KVA Series

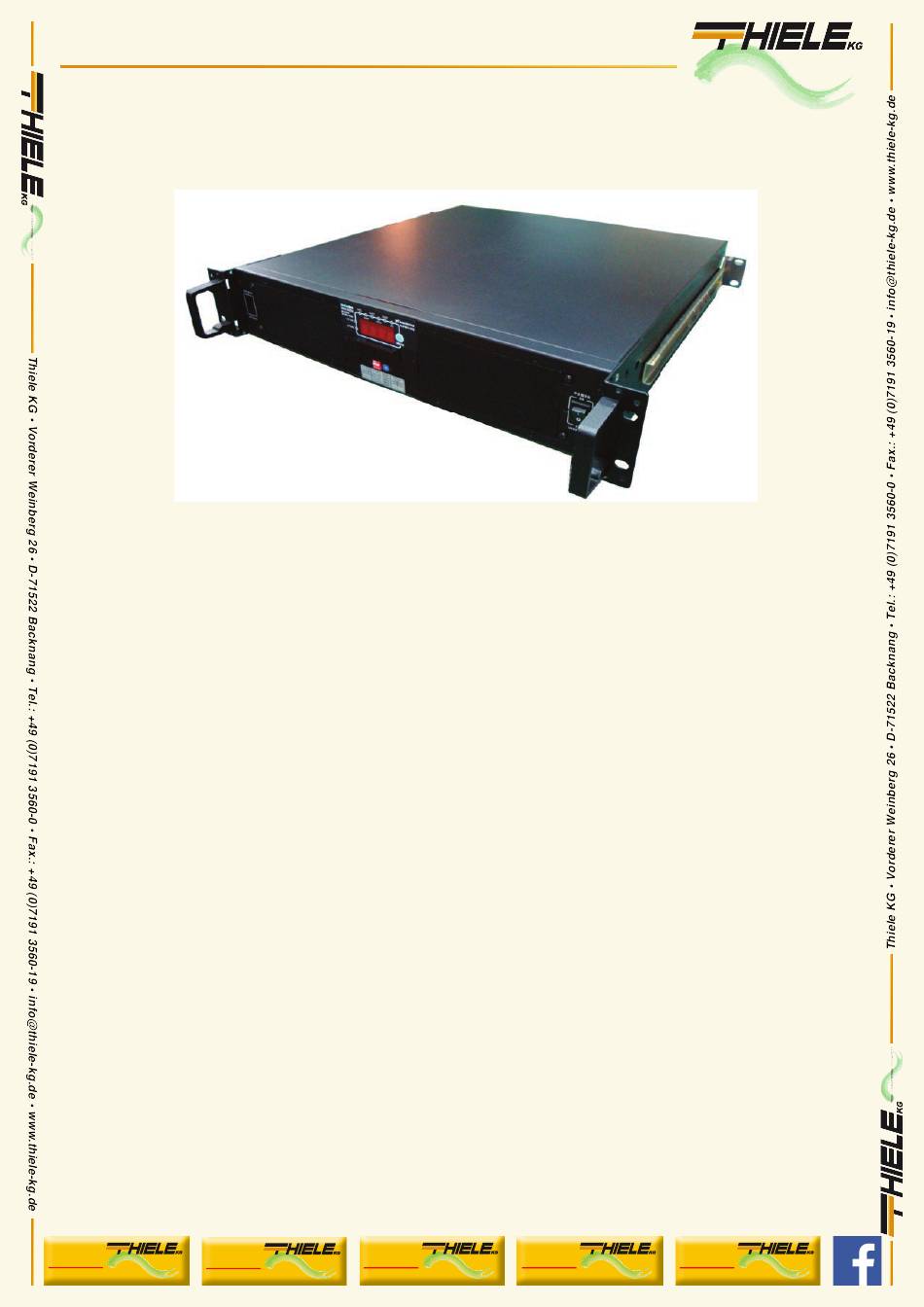

- Page 1 YOUR CONNECTION TO SAFETY 2U 19”/23”Rack-mount Model 2U 19”/23”Open Frame Cabinet model YK- UIPSW2KVA Series Pure Sine Wave Inverter User Manual YK-UIPSW122KVA/E YK-UIPSW242KVA/E YK-UIPSW482KVA/E YK-UIPSW1102KVA/E YK-UIPSW2202KVA/E klick to klick to klick to klick to klick to u-s-v Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y...
- Page 2 YOUR CONNECTION TO SAFETY List of Contents 1. Features Application Electrical performance Mechanical drawings 2. Introduction Front panel operations Rear panel operations Installation Quick hook – up and testing AC safety grounding Making DC wiring connections Inverter operation Cooling fan working code 3.
- Page 3 YOUR CONNECTION TO SAFETY 1. Features Pure sine wave output (THD < 3%) R Load By pass function Inverter mode / UPS mode Output frequency: 50 / 60Hz switch RS – 232 interface / remote controls port / Wire connection to PC Wired Remote control Loading &...
- Page 4 YOUR CONNECTION TO SAFETY 1-2 Electrical Performance Specification Model YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW YK-UIPSW Item 122KVA 242KVA 482KVA 1102KVA 2202KVA 122KVAE 242KVAE 482KVAE 1102KVAE 2202KVAE (2U) (2U) (2U) (2U) (2U) (2U) (2U) (2U) (2U) (2U) Continuous Output 2000W Power...
- Page 5 YOUR CONNECTION TO SAFETY 1-3 Mechanical Drawings klick to klick to klick to klick to klick to u-s-v Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y...
- Page 6 YOUR CONNECTION TO SAFETY 2. Introduction: The power inverter series are the member of the most advanced line of mobile AC power systems available. To get the most out of the power inverter, it must be installed and used properly. Please read the instructions in this manual before installing and using this model.
- Page 7 YOUR CONNECTION TO SAFETY 2-2 Rear Panel Operation : 2-2-1 Ventilation openings : Do not obstruct, allow at least 3 inch for air flow. 2-2-2 Battery terminals : Connect to 12V / 24V / 48V solar panel or other 12V / 24V / 48V power Source. is positive, is negative.
- Page 8 YOUR CONNECTION TO SAFETY WARNING! Any damages caused by using incorrect RS232 cable will be outside of our warranty scope. If you are not sure which one is correct RS232 cable, please purchase the correct RS232 cable from us directly. 2-2-4 Connect chassis ground terminal to earth or to vehicle chassis using # 8 AWG wire.
- Page 9 YOUR CONNECTION TO SAFETY 2-3 Installation : Where to install. The power inverter should be installed in a location that meets the following requirements. 2-3-1 Dry – Do not allow water to drip or splash on the inverter. 2-3-2 Cool – Ambient air temperature should be between -20 and 50 , the cooler the better.
- Page 10 YOUR CONNECTION TO SAFETY WARNING! Make sure all the DC connections are tight (torque to 9-10 ft-lbs, 11.7-13Nm). Loose connections will overheat and could result in a potential hazard. 2-4-3 Before proceeding further, carefully check that cable you have just connected negative terminal of inverter to the negative output power source.
- Page 11 YOUR CONNECTION TO SAFETY 2-5 AC Safety Grounding: During the AC wiring installation, Ac input and output ground wires are connected to the inverter. The AC input ground wire must connect to the incoming ground from your AC utility source. The AC output ground wire should go to the grounding point for your loads ( for example, a distribution panel of bus chassis).
- Page 12 YOUR CONNECTION TO SAFETY Increasing your DC cable size will help improve the situation. Our company recommends the following cables for optimum inverter performance (apply both 120V and 230V versions) Model No Wire AWG Inline Fuse YK-UIPSW122KVA #2/0 250A YK-UIPSW122KVAE YK-UIPSW242KVA #1/0 125A...
- Page 13 YOUR CONNECTION TO SAFETY DC Input over DC Input over DC Input under DC Input under Model voltage shut-down voltage alarm voltage alarm voltage shut-down YK-UIPSW122KVA 16.0VDC 15.5VDC 10.5VDC 10.0VDC YK-UIPSW122KVAE YK-UIPSW242KVA 32.0VDC 31.0VDC 21.0VDC 20.0VDC YK-UIPSW242KVAE YK-UIPSW482KVA 62.0VDC 61.0VDC 43.0VDC 42.0VDC YK-UIPSW482KVAE...
- Page 14 YOUR CONNECTION TO SAFETY 2-7-8 Over voltage protection indicator: (OVP) The over voltage indicator indicates that the power inverter has shut itself down because its input voltage exceeded 110/220VDC version. (Ref.point 2-7-1) 2-7-9 Under voltage protection indicator: (UVP) The under voltage indicator indicates that the power inverter has shut itself down because its input voltage fell below 110 / 220VDC.
- Page 15 YOUR CONNECTION TO SAFETY A: Inverter Fault B: Back Mode C: UPS Mode D: Inverter Mode 2-7-13 Flow Chart City Power Load DC Input SWITCH UPS MODE INV MODE CONTROL (A) AC INPUT SWITCH (B) DC TO DC (C) DC TO AC (D) SWITCH (E) UPS MODE &...
- Page 16 YOUR CONNECTION TO SAFETY 2-8 Cooling fan working code: Cooling fan of inverter is through detecting output power and over temperature situation to work. When start to turn on the inverter and output power is under 60W, the cooling fan does not start running.
- Page 17 YOUR CONNECTION TO SAFETY 5. Warranty : We warrant this product against defects in materials and workmanship for a period of 12 months from the date of purchase and will repair or replace any defective power inverter when directly returned (postage paid) to us. This warranty will be considered void if the unit has suffered any obvious damage by natural and man-made factors, or alteration either internal or external and does not cover damage arising from improper use such as plugging the unit into an unsuitable power sources attempts...
- Page 18 YOUR CONNECTION TO SAFETY 6-2 Precautions When Working with Battery bank 6-2-1 If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at lease 20minutes and get medical attention immediately.
