Philips DVP3810 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Register your product and get support at
DVP3810
EN
User manual
7
ZH-CN
25

Advertisement

Table of Contents
loading

Related Manuals for Philips DVP3810

Summary of Contents for Philips DVP3810

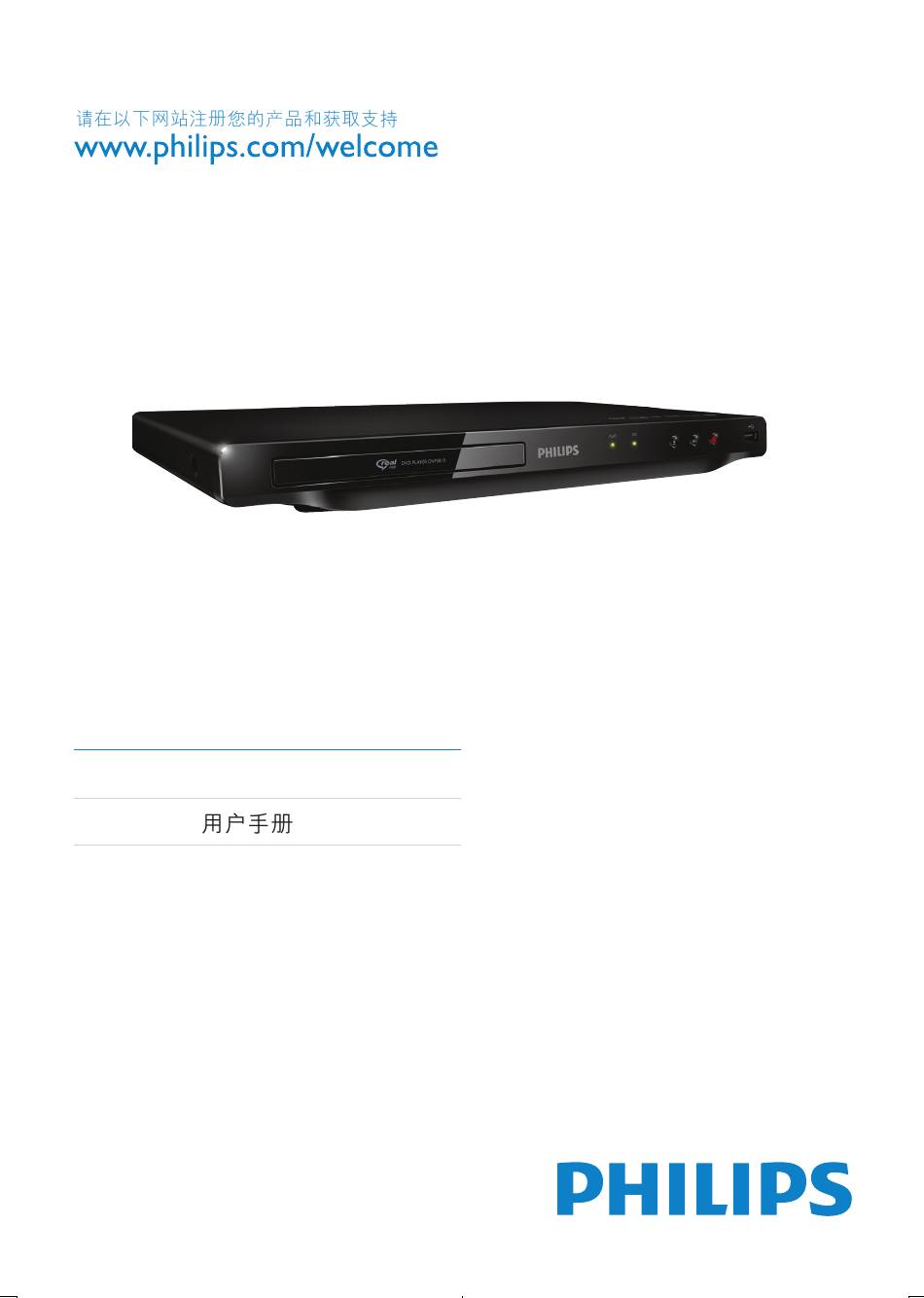

  • Page 1 Register your product and get support at DVP3810 User manual ZH-CN...
  • Page 2 Please refer to the safety information before using the product. ZH-CN...

  • Page 3: Connect And Play

    Register your product and get support at www.philips.com/welcome DVP 3810 User manual COAXIAL AUDIO OUT DIO OUT DIO OUT VIDEO OUT VIDEO OUT...
  • Page 4 VIDEO OUT + AUDIO OUT R VIDEO OUT R VIDE E O OUT T VIDEO...
  • Page 5 SOURCE...
  • Page 6 Disc Disc Disc Create Setup Disc Create Setup...

  • Page 7: Table Of Contents

    Contents Connect and play ............................3 Safety ................................8 Control and play ............................9 Photo and music slideshow ....................... 11 Convert audio CD to MP3 files ......................12 Options ..............................13 Setup General setup ......................................15 Video setup ......................................16 Audio setup ......................................16 Preference ........................................17 Software update ...........................

  • Page 8: Safety

    Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use. •...

  • Page 9: Control And Play

    Control and play Note • When “ X” appears, it means that this operation is unavailable for the current media or at the current time. Media Function Buttons / Actions Stop the play Pause or resume the play Skip to the previous/next title, chapter, track, or file Select an audio language or audio channel...
  • Page 10 Control and play Media Function Buttons / Actions Skip to a track 1) Disable PBC. 2) Press 3) Press to enter the track number. 4) Press OK to confirm. Search backward/forward fast Press repeatedly to select a speed. Search forward slowly Press repeatedly to select a speed.

  • Page 11: Photo And Music Slideshow

    Photo and music slideshow Picture 000001 000002 000001 Press to select , and then press OK. » All supported folders and files are listed. Press to select a music file, and then press OK to start playing. • If the music file is saved in a folder or sub-folder, access its directory first. Press to select a picture file, and then press OK to start the slideshow.

  • Page 12: Convert Audio Cd To Mp3 Files

    Convert audio CD to MP3 files Create Setup Disc Create Make sure disc and USB device are inserted Continue Exit Follow the on-screen instructions to complete the process. » The created MP3 files are saved in a folder named “_PHILIPS”. Note •...

  • Page 13: Options

    Options During play, press to access the following items. Media Setting item Function [Info] Display the play information. [PBC] Enable or disable PBC. [Aspect ratio] Select a display ratio of picture on TV. [Volume] Adjust the volume level. [Angle] Select an available camera angle. [Colour] Select Fun Mode (photos in color) or Simple Mode (photos in black and white).

  • Page 14: Setup

    Setup Create Setup Disc Unlock Disc Lock General OSD Language English Sleep Timer Video Auto Standby Registration DivX(R) VOD Code Audio Preference • Press to select a menu item or setting option. • Press OK to access the lower-level menu or confirm the selected setting option. •...

  • Page 15: General Setup

    General setup Unlock Disc Lock General OSD Language English Sleep Timer Video Auto Standby Registration DivX(R) VOD Code Audio Preference [Disc Lock] - Restrict the play of a disc (maximum 20 discs can be locked). • [Lock] - Lock the current disc. To play or unlock this disc, you must enter the password. •...

  • Page 16: Video Setup

    Setup Video setup TV System General Aspect ratio 4:3 Pan Scan Picture Setting Standard Video Audio Preference [TV System] - Select a TV system that matches your TV. By default, this setting matches common TVs in your country. [Aspect ratio] - Select a display ratio that matches your TV screen. [Picture Setting] - Select a predefined setting for picture color, or customize the setting.

  • Page 17: Preference

    [Volume] - Set the default volume level. [Sound Mode] - Select a preset sound effect. [Night Mode] - Equalize loud sound and soft sound. Enable this feature to watch DVD movies at a low volume at night. Note • Applicable to Dolby Digital encoded DVD discs only. Preference Audio English...
  • Page 18 Setup [PBC] - Enable or disable the PBC (playback control) feature. [Password] - Change the password for playing discs that are locked or restricted with rating levels. Note • If you forget the password, enter “136900” before you set a new password. Change the password Select [Preference] >...

  • Page 19: Software Update

    Software update Note • Power supply must not be interrupted during software update. Check the current software version of this player, and then go to the Philips website for information about software update. Check the current software version Press .

  • Page 20: Troubleshooting

    If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here: Model No.

  • Page 21: Specifications

    Specifications Note • Specifications are subject to change without notice. DVD region code Countries China Playable media • Disc • DVD, DVD-Video, VCD, SVCD, Audio CD • DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer), CD-R/-RW (Maximum number of files: 648) • File •...
  • Page 22 Specifications Main unit • Dimensions (W x H x D): 360 x 42 x 209 (mm) • Net Weight: 1.3 kg Power • Power supply rating: 110–240 V~, 50/60 Hz • Power consumption: < 9 W • Power consumption in standby mode: < 0.8 W Accessories supplied •...

  • Page 23: Notice

    Notice Care for your product • Do not insert any objects other than discs into the disc compartment. • Do not insert warped or cracked discs into the disc compartment. • Remove the discs from the disc compartment if you are not using the product for an extended period of time.
  • Page 24 2011 © Koninklijke Philips Electronics N.V. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
  • Page 25 O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 – 2006. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.
  • Page 26 Language code Inupiaq 7375 Pushto 8083 Abkhazian 6566 Afar 6565 Irish 7165 Russian 8285 Afrikaans 6570 Íslenska 7383 Quechua 8185 Amharic 6577 Italiano 7384 Raeto-Romance 8277 Arabic 6582 Ivrit 7269 Romanian 8279 Armenian 7289 Japanese 7465 Rundi 8278 Assamese 6583 Javanese 7486 Samoan...
  • Page 27 © 2011 Koninklijke Philips Electronics N.V. All rights reserved. DVP3810_93_UM_V1.0...
