Summary of Contents for Philips DVP3820

  • Page 1 Register your product and get support at DVP3820 User manual Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 2 Please refer to the safety information before using the product. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 3: Connect And Play

    DV 3 20 Ma ua d l s a io TV OU TV OUT Pb Pr Pb Pr AUDIO OUT AUDIO OUT AUDIO OUT Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 4 Pr Pb Y + AUDIO OUT TV OUT + AUDIO OUT V OUT V OU U T VIDEO Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 5 SOURCE Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 6 Disc Create Setup Disc Create Setup Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 7: Table Of Contents

    Convert audio CD to MP3 files ......................12 Options ..............................13 Setup General setup ......................................15 Video setup ......................................16 Audio setup ......................................16 Preference ........................................17 Software update ........................... 19 Troubleshooting ............................ 20 Specifications ............................21 Notice ..............................23 Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 8: Safety

    Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use. •...
  • Page 9: Control And Play

    Select a repeat mode 2) Press 1) Press REPEAT/REPEAT A-B twice to select Repeat a specific section within a track the start point. 2) Press REPEAT/REPEAT A-B again to select the end point. To resume the normal play, press REPEAT/ REPEAT A-B. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 10 To pan through an enlarged photo or video image, press Rotate a photo Press Switch between Fun Mode Press DISC MENU during photo slideshow. (pictures in color) and Simple Mode (pictures in black and white) Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 11: Photo And Music Slideshow

    • Music and picture files must be stored on the same disc or USB storage device. • If a large number of files are complied onto one disc or USB storage device, it requires longer time to read and display the content. • This player can only display digital camera pictures with JPEG-EXIF format, which is widely used in digital cameras. It cannot display Motion JPEG, nor pictures in formats other than JPEG. Sound clips associated with pictures cannot be displayed either. • If a JPEG picture is not recorded as an “exif ” type file, its thumbnail picture is displayed as “blue mountain”. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 12: Convert Audio Cd To Mp3 Files

    Convert audio CD to MP3 files Disc Create Setup Create Make sure disc and USB device are inserted Exit Follow the on-screen instructions to complete the process. » The created MP3 files are saved in a folder named “_PHILIPS”. Note • DTS CDs and copy-protected CDs cannot be converted. • A write-protected or encrypted USB storage device cannot be used to store MP3 files. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 13: Options

    Select a display ratio of picture on TV. [Volume] Adjust the volume level. [Angle] Select an available camera angle. [Colour] Select Fun Mode (photos in color) or Simple Mode (photos in black and white). [Photo preview] Display the thumbnail of photos. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 14: Setup

    Press OK to access the lower-level menu or confirm the selected setting option. • BACK to return to the upper-level menu. • Press Note • When a menu item is grayed out, it means that its setting cannot be changed at the current state. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 15: General Setup

    Play a locked disc When you load a locked disc, [Please enter password] is displayed, and “0” is displayed as the first digit of the password. Press / to set a value (0 to 9) to the first digit. Press Repeat steps 1 and 2 to enter the 6-digit password. Press OK to confirm. • Refer to “Setup” > “Preference” > [Password] for how to change the password. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 16: Video Setup

    [Progressive] - Enable or disable the progressive scan mode on this player. [Picture Setting] - Select a predefined setting for picture color, or customize the setting. Audio setup Analogue Output Stereo General Volume Sound Mode Video Night Mode Audio Preference [Analogue Output] - Adjust this setting for audio output through AUDIO OUT L/R . • [Stereo] - Compress multi-channel Dolby digital sound to stereophonic sound. • [LT/RT] - Compress multi-channel Dolby digital sound to 2-channel surround sound. [Volume] - Set the default volume level. [Sound Mode] - Select a preset sound effect. [Night Mode] - Equalize loud sound and soft sound. Enable this feature to watch DVD movies at a low volume at night. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 17: Preference

    “Setup” > “General setup” > “Play a locked disc” for details) • The rating levels are country-dependent. To allow all discs to be played, select [8 Adult]. • Some discs have ratings printed on but are not recorded with ratings. This function has no effect on such discs. [PBC] - Enable or disable the PBC (playback control) feature. [Password] - Change the password for playing discs that are locked or restricted with rating levels. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 18 Repeat steps 3 and 4 to enter the 6-digit old password. Repeat steps 3 and 4 to enter the new password behind [New Password]. Repeat steps 3 and 4 to enter the new password behind [Confirm PWD]. [Version Info] - Display the information about software version of this player. [Default] - Reset all settings to factory default, except for the settings for [Disc Lock], [Parental Control], and [Password]. Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 19: Software Update

    Software update Note • Power supply must not be interrupted during software update. Check the current software version of this player, and then go to the Philips website for information about software update. Check the current software version Press .
  • Page 20: Troubleshooting

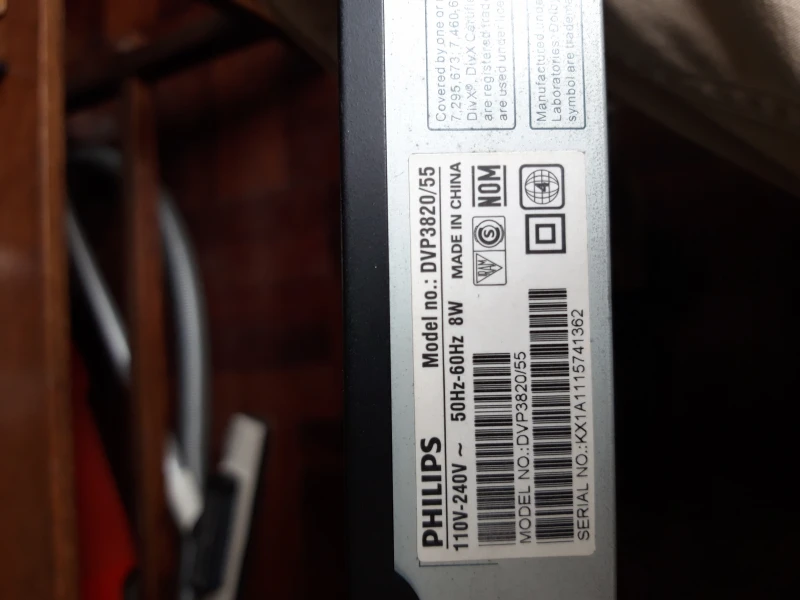

    If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here: Model No.
  • Page 21: Specifications

    File system: FAT16, FAT32 • Maximum number of albums/folders: 300 • Maximum number of tracks/titles: 648 Video • Signal system: PAL, NTSC • Composite video output: 1 Vp-p (75 Ohm) • Component video output: 0.7 Vp-p (75 Ohm) Audio • 2-channel analog output • AUDIO OUT L&R : 2 Vrms (47k Ohm) • Sampling frequency: • MP3: 8 kHz, 11 kHz, 12 kHz, 16 kHz, 22 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz • WMA: 44.1 kHz, 48 kHz Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 22 Remote control and one battery • Audio/Video cables • User Manual Laser specification • Type: Semiconductor laser InGaAIP (DVD), AIGaAs (CD) • Wave length: 658 nm (DVD), 790 nm (CD) • Output Power: 7.0 mW (DVD), 10.0 mW (VCD/CD) • Beam divergence: 60 degrees Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 23: Notice

    Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area. Compliance This apparatus includes this label: Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 24 Corporation. Reverse engineering and disassembly are prohibited. 2011 © Koninklijke Philips Electronics N.V. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. Warranty •...
  • Page 25 For any sales or service related queries: Visit us on web at www.philips.com/support or Call us on Tel No. 1860-180-1111 1800-102-2929 “standard call rates apply” Email: customercare.india@philips.com Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 26: Language Code

    Oriya 7982 Yoruba 8979 Hindi 7273 Oromo 7977 Zulu 9085 Hiri Motu 7279 Ossetian; Ossetic 7983 Hrwatski 6779 Pali 8073 7379 Panjabi 8065 Persian 7065 Interlingua (International)7365 Interlingue 7365 Polski 8076 Inuktitut 7385 Português 8084 Downloaded From DvDPlayer-Manual.com Philips Manuals...
  • Page 27 © 2012 Koninklijke Philips Electronics N.V. All rights reserved. DVP3820_94_UM_V1.0 Downloaded From DvDPlayer-Manual.com Philips Manuals...
