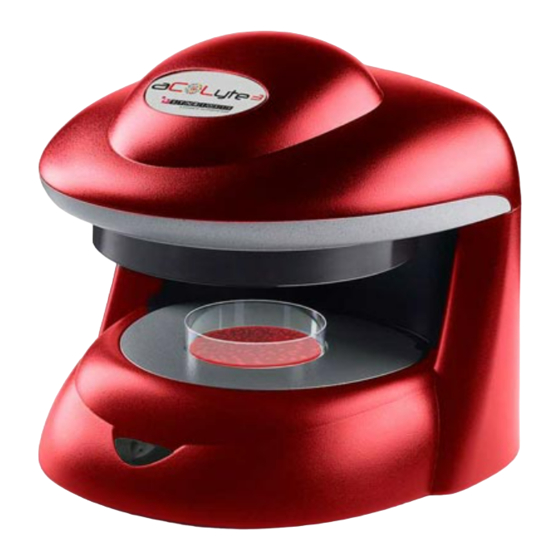

SynOptics SYNBIOSIS aCOLyte 3 HD Quick Manual

2 Sector Spiral Batch set-up - Quick Guide
Start aCOLyte 3 HD software
1
Position plate
2
Capture image
Click
3
Slide
Click
Create batch
4
Click
Plate configuration
5
Select
Choose an application
6
Select
aCOLyte 3 HD
Insert the plate onto the plate holder.
Press lighting button on the front of
the aCOLyte 3 HD to obtain an image
which
between
background being used
Select the image tab and check the
live box
Adjust the exposure by increasing/
decreasing the sliding scale
Capture image
Log onto aCOLyte 3 HD
gives the
the
Click New Batch
Select Plate Configuration to set
plate size, sample volume and
threshold. Defaults are Circular
plate 90mm, Spiral volume
100µl and threshold of 20.
Change if necessary
Select Spiral Plate
best contrast
colonies and
Page 1 of 2
