- Page 1 SkyMesh HYC-4011-27 5GHz 4x4 MIMO HT-OFDM Radio Dual Channels Mobile Mesh network User Manual Includes install, configuration and trouble shooting information for the broadband wireless access outdoor radio. Version 1.0.2 www.hypercable.fr www.e-rake.us.com Mars 2016...
- Page 2 Hypercable. ATTENTION selon le découplage des antennes et la largeur du canal en version 4x4 le canal CH1 2x2 doit être éloigné du canal Ch2 2x2 de 200 Mhz à 400 Mhz par exemple CH1 sur 5700 MHz et Ch2 sur 5300 MHz pour des antennes omnidirectionnelles découplées dans le plan vertical afin d’éviter interférences et désensibilisation.
-
Page 3: Conventions
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. www.hypercable.fr www.e-rake.us.com... -
Page 4: Table Of Contents
NSTALLATION 2-5 LED I ......................... 16 NDICATORS CHAPTER 3 CONFIGURATION ....................17 3-1 S ........................17 TART UP AND OG IN 3-2 M ....................26 ROTOCOL ONFIGURATION 3-3 W ......................... 27 IRELESS ETUP 3-4 M ..........................32 ANAGEMENT www.hypercable.fr www.e-rake.us.com... -
Page 5: Chapter 1 Introduction
Network design makes the Mesh Network working better and more efficiency because of below advantages. 1. Reduce the Co-channel interferences, 2. Better efficiency and throughput after multi-hops repeating. 3. Shorter latency for the Mesh Network. 4. More possibilities of the deployment plan with different antenna design for different applications and environments. www.hypercable.fr www.e-rake.us.com... -
Page 6: Features And Benefits
OFDM technology. Work with the variable channel BW options, these two combination features provides great benefits for both crowded urban area and rural area with less interference. Channel BW (MHz) Real throughput (Mbps) Application area Valuable spectrum Crowded urban Rural www.hypercable.fr www.e-rake.us.com... - Page 7 14 Channel BW (2.5 / 3 / 3.5 / 4 / 5 / 6 / 7 / 8 / 10 / 15 / 20 / 30 / 40 / 52 MHz) GPS Coordinates and Internet map database www.hypercable.fr www.e-rake.us.com...
- Page 8 Short Latency increased @ 40MHz Ch BW (≦35 ms @ 20 hops) Network Architecture: P-T-P: 1+0 / 2+0 / 1+1 P-T-MP Ring (Redundant) Mobile MESH Fast Seamless Roaming High Speed up to 180km/hr IEC61000-4-5 Surge Protection IP-68 Water & Dust Resistant www.hypercable.fr www.e-rake.us.com...
-
Page 9: Chapter 2 Hardware Installation
The network administrator or other IT professional responsible for installing and configuring the unit is a suitable professional installer. Following installation, access to the unit should be password protected by the network administrator to maintain regulatory compliance. www.hypercable.fr www.e-rake.us.com... -
Page 10: Product Kit
Category 5 UTP or STP networking cable. (From the PC to POE) Category 5 SSTP or SFTP networking cable. (From the radio to POE) A Web browser for configuration: Google Chrome or Microsoft IE 9.0 or later. Installing TCP/IP protocol to the computer. www.hypercable.fr www.e-rake.us.com... -
Page 11: Mechanical Description
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. www.hypercable.fr www.e-rake.us.com... - Page 12 RF2- Secondary RF1- Secondary RF1- Primary ※ Note: 1. When you set the RF to 1x1 instead of 2x2 MIMO, only Primary port works. 2. RF1 = Wireless 1 / RF2 = Wireless 2 in the configuration page. www.hypercable.fr www.e-rake.us.com...
- Page 13 This RJ-45 port (10 / 100 / 1000) is used to connect to the ODU. . DC Input Connect to the Power adaptor for DC input. (Passive 48V DC) LED Indicator Power LED Power Over Ethernet Injector is not a waterproof unit, should not be exposed to the outdoor without any protection. www.hypercable.fr www.e-rake.us.com...
-
Page 14: Hardware Installation
5GHz 4x4 MIMO HT-OFDM MESH Radio operations first before you mount the radio in a remote location. Power Over Ethernet Injector is not a waterproof unit, should not be exposed to outdoor without any protection. www.hypercable.fr www.e-rake.us.com... - Page 15 Applications With Ground Station Without Ground Station www.hypercable.fr www.e-rake.us.com...
-
Page 16: Led Indicators
Note 1: when the radio is configured as mesh mode, the RSSI is value is average RSSI which is calculated from all the connected mesh nodes. Note 2: LED indicator showed the status of Wireless1 and wireless 2 by turns. www.hypercable.fr www.e-rake.us.com... -
Page 17: Chapter 3 Configuration
Management and Logout buttons will be shown in left part. The main menu provides links to the whole sections of the web configuration interface. Information This page shows most of the product information briefly, that includes General Information, Network Information, MESH, Wireless Network 1, Wireless Network 2 and Wired Network www.hypercable.fr www.e-rake.us.com... - Page 18 Information -1 Information -2 www.hypercable.fr www.e-rake.us.com...
- Page 19 Status Status -1 Status -2 www.hypercable.fr www.e-rake.us.com...
- Page 20 1. You can select “Obtain current position from GPS receiver” with the radio type that integrated GPS module. Attach an external GPS active antenna to the GPS port, you can see the received list of the GPS satellites. www.hypercable.fr www.e-rake.us.com...
- Page 21 2. Enter the coordinates manually (this can also be done in System / Basic Setup) or 3. Drag the location mark of the radio to anywhere in the map you want. www.hypercable.fr www.e-rake.us.com...

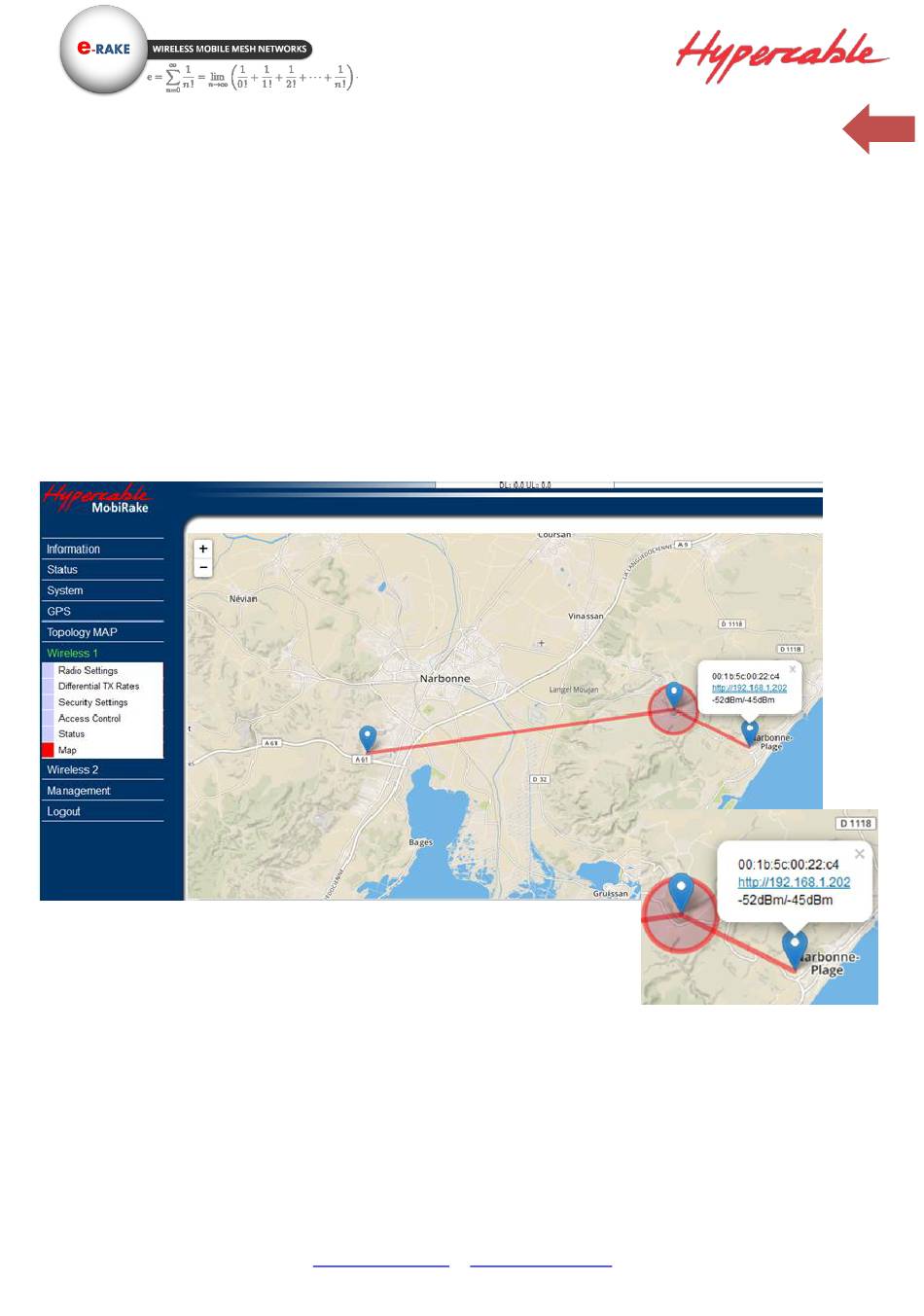

- Page 22 MAP – Topology Topology Map – Radio info (IP address/ MAC / operating mode & Frequency) Topology Map – Link status (Data rate / RSSI / Distance / Frequency) Topology Map – Multi-hops repeating Topology Map – Mesh Network www.hypercable.fr www.e-rake.us.com...
- Page 23 If your radio type support integrated GPS module, you can check the select box “Obtain current position from GPS receiver” System / IP Settings IP Address: Type the IP address you want to set to your 5GHz 4x4 MIMO HT-OFDM MESH Radio (Default: 192.168.1.1). www.hypercable.fr www.e-rake.us.com...
- Page 24 Specifies the interval that the bridge waits to hear BPDUs Max Age from the spanning tree root Forward Delay Specifies a forward delay interval on the bridge Note: If you complete the settings, please click on “Apply” for changes to take effect. www.hypercable.fr www.e-rake.us.com...
- Page 25 GPS time settings: Sync the time with GPS module. Time Server: the central time of the Time Server. Time Server Port: the port of the Time Server. Time server for a Lan connection to an Orange ADSL router is 192.168.1.1 www.hypercable.fr www.e-rake.us.com...
-
Page 26: Mesh Protocol Configuration
Maximum Hops (1~30): Define the max repeating hops in the mesh network. Acceptable RSSI (-50~-90dBm): This RSSI threshold is an important reference parameter to decide to hold the link between the Mesh nodes or change to other better optional path. Probe interval time: Configuring the Time Interval between Probes. www.hypercable.fr www.e-rake.us.com... -
Page 27: Wireless Setup
Perform as a client station associated to other BS. Be sure that they share the same SSID when connected. Bridge (Point-to-point) Perform as a point to point bridge, enter the MAC address of the remote radio that you want to connect. MESH (Peer-to-peer) Perform as a mesh node in the mesh network. www.hypercable.fr www.e-rake.us.com... - Page 28 / 20 / 30 / 40 / 52 MHz, default is 20MHz. Channel / Frequency: Set the operation frequency of the radio. TX Rate Range: Here you can setup the min. Rate and max. Rate of the Tx Rate range. www.hypercable.fr www.e-rake.us.com...
- Page 29 400ns to enhance the efficiency of data transmission. Transmission Antenna: There are 3 antenna options for selection Receiving Antenna: Same as Transmission Antenna, there are 3 antenna options for selection too. www.hypercable.fr www.e-rake.us.com...
- Page 30 Security/Cipher To prevent unauthorized radios from accessing data transmitted over the link, the Encryption Settings window offers WPA2 PSK features, making your data transmission over air more secure and allows you to specify Encryption Key(s). Open System – without encryption WPA2 PSK – AES encryption www.hypercable.fr www.e-rake.us.com...
- Page 31 Wireless Setup / Access control (This is NOT Available in Mesh mode) You can enable the MAC address Access control feature and decide which mode you want to control, Allow or Deny. www.hypercable.fr www.e-rake.us.com...
-
Page 32: Management
Note: After you change password, please take note of your new password. Otherwise, you will not able to access the radio with correct password. Management / Remote Management You can doing the remote Management via Secure Shell (SSH) or SNMP by setting the parameters in this page. www.hypercable.fr www.e-rake.us.com... - Page 33 The current system settings can be saved into a file as a backup by clicking “Backup”. The saved file can be loaded back on the radio by clicking “Browse”. When you have selected the settings file, click “Retrieve” to begin the process. Furthermore, you may click “Restore” to factory default settings. www.hypercable.fr www.e-rake.us.com...
- Page 34 www.e-rake.us.com...
- Page 35 The Web-browser will not be accessible until the Wireless backhaul has finished its reboot process. Management / Logout Click log out when you finished all the configuration, if there is anything missed, you can selected “login again” to enter the configuration process again. www.hypercable.fr www.e-rake.us.com...
- Page 36 Then use a stick to press in and hold the RESET button for 6~9 seconds. This will reset the Radio to the factory default settings. If you applied any personal configuration settings, you will need to make the changes again. Reset button Reset button of the radio www.hypercable.fr www.e-rake.us.com...
