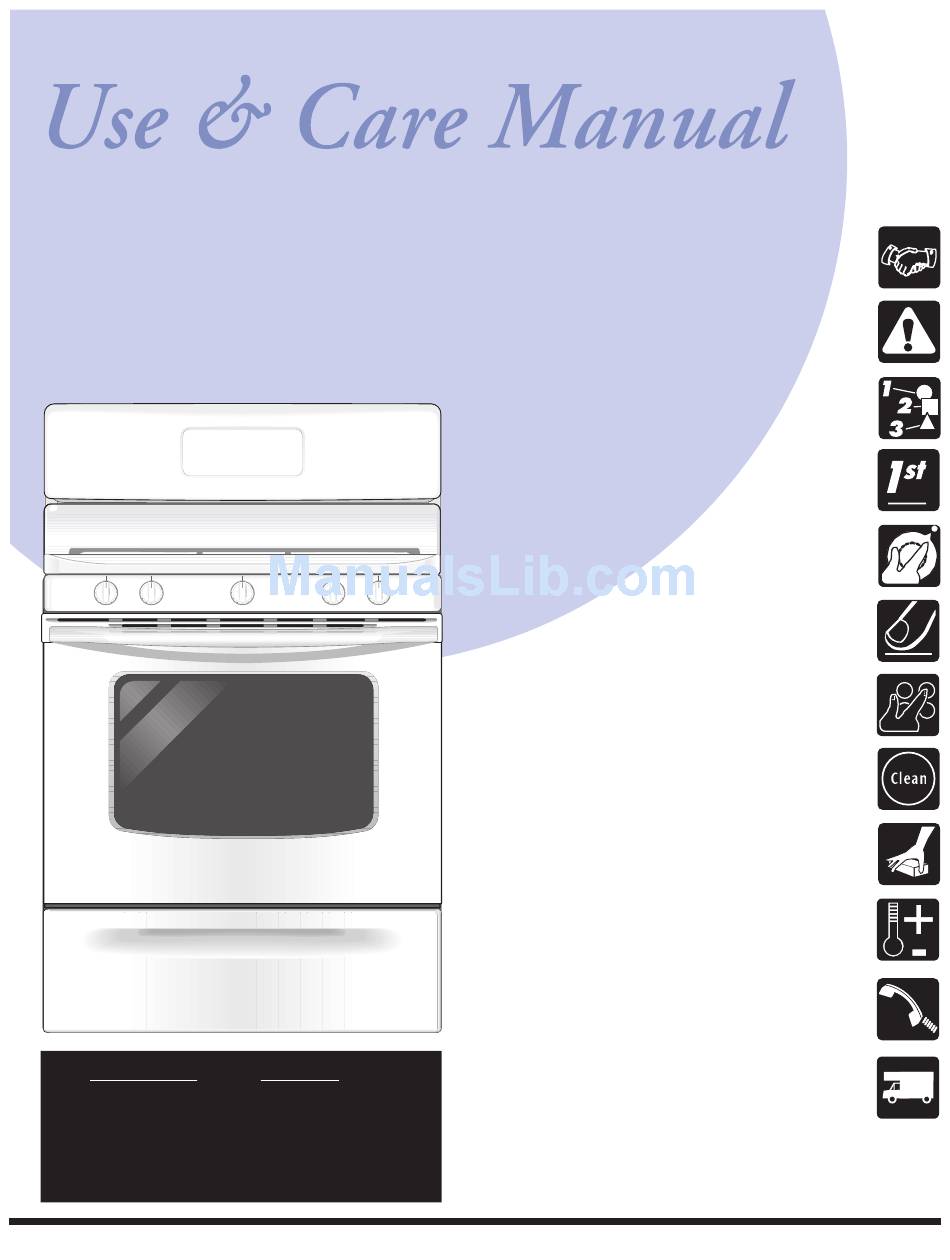

Frigidaire GLGFZ386FC Important Safety Instructions Manual

Gas range
Hide thumbs

Advertisement

Visit the Frigidaire Web Site at:
Gas
http://www.frigidaire.com
Range
Welcome.......................................... 2
ES340 Control, Self-Cleaning Oven
with Sealed Gas Burners
Features at a Glance ...................... 5
Setting Surface Controls ............... 7
Oven Control Functions ................ 8
Setting Oven Controls .............. 9-13
Self Cleaning ........................... 14-15
19
Solutions to Common Problems ........................
Questions or for Service Call:
1-800-944-9044
Warranty ......................... Back Page
(U.S.)
1-800-668-4606
(Canada)
READ AND SAVE THESE INSTRUCTIONS
p/n 316417130 (0606)

Advertisement

loading

  Summary of Contents for Frigidaire GLGFZ386FC

  • Page 1: Table Of Contents

    Visit the Frigidaire Web Site at: http://www.frigidaire.com Range Welcome... 2 ES340 Control, Self-Cleaning Oven with Sealed Gas Burners Important Safety Instructions ...2-4 Features at a Glance ... 5 Before Setting Oven Controls ... 6 Setting Surface Controls ... 7 Oven Control Functions ... 8 Setting Oven Controls ...
  • Page 2: Welcome

    Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases.
  • Page 3 Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency. • User servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals.
  • Page 4 • Do Not Heat Unopened Food Containers—Buildup of pressure may cause container to burst and result in injury. • Remove the oven door from any unused range if it is to be stored or discarded. IMPORTANT—ELECTRIC IGNITION MODELS ONLY: Do not attempt to operate the oven during a power failure.
  • Page 5: Features At A Glance

    26. Broil Pan (some models). 27. Broil Pan Insert (some models). 28. Leveling Legs & Anti-tip Bracket (included). Burner Drip pans (some models). NOTE: The features of your range may vary according to model type & color. Features At A Glance...
  • Page 6: Before Setting Oven Controls

    Shelf Fig. 2 Oven Racks Your range is equipped with one or more Flat Oven Rack(s). Place the rack(s) into the positions shown in Fig. 2. See the Recommended Rack Positions in the chart above. Baking Layer Cakes with 1 or 2 Oven Racks For best results when baking cakes using 2 oven racks, place cookware on rack positions 1 &...
  • Page 7: Setting Surface Controls

    Setting Surface Controls Setting Surface Controls Your range may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases. The SIMMER burner (some models) is best used for simmering delicate sauces, etc.
  • Page 8: Oven Control Functions

    READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. CLOCK BAKE TIME PAD— Used PAD— Used to to set the enter the length of time of day.
  • Page 9: Setting Oven Controls

    Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 10 To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: 1. Press . "— — —" appears in the display. 2.
  • Page 11 To Set the Timed Bake and Delay Start (Delayed Timed Bake) Features BAKE TIME and START TIME pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start).
  • Page 12 Speed Bake™ Cooking System Benefits of Speed Bake™ Cooking System: —Foods cook up to 25 to 30% faster, saving time and energy. —Multiple rack baking. —No special pans or bakeware needed. Fig. 1 General Cooking Instructions: For Baking: 1. For optimum cooking results it is recommended to preheat the oven when baking foods such as cookies, biscuits and breads. 2.
  • Page 13: Setting Oven Controls

    To Set for Broiling: 1. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. 2. Press . " — — "will appear in display. 3. Press and hold the until the desired broil setting level appears in the display.
  • Page 14: Self Cleaning

    During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 15 Choose a Self-Clean Cycle Time Determine which Self-Clean Cycle time as required. Your appliance comes with two choices; hour Self-Clean cycle (for lighter soils) or instructions provided below. PLEASE NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.
  • Page 16: General Care & Cleaning

    Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may Double Oven become damaged during future heating. DO NOT use spray oven cleaners on the range. Oven Racks Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.
  • Page 17 4. Replace glass shield over bulb and snap wire holder into place. 5. Turn power back on again at the main source (or plug the range back in). 6. The clock will then need to be reset. To reset, see Setting the Clock and oven light.
  • Page 18: Adjusting Oven Temperature

    Cleaning the Contoured Well Areas, Burner Cap, Burner Head and Burner Drip Pans he contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: Note: The burner grate style shown above may be a different depending on your model.
  • Page 19: Before You Call

    Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately support range. (3) If floor is sagging or sloping, contact a carpenter to correct the situation.
  • Page 20: Warranty

    Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

This manual is also suitable for:

Glgfz386fccGlgfz386fc - 30 inch gas range
