RF-1012-07-5 Wireless Micro DWS LoNa
Installation Sheet
EN DE ES FR IT
NL PL PT SV
EN: Installation Sheet
Enrolling
To enroll the sensor, set your panel into program mode. Then
go to the Learn Sensors menu. Refer to your specific alarm
panel manual for details on these menus. Insert the battery.
Close the case (you will hear a click when the case latches are
engaging and disengaging). Then select the appropriate
sensor group and number.
Mounting

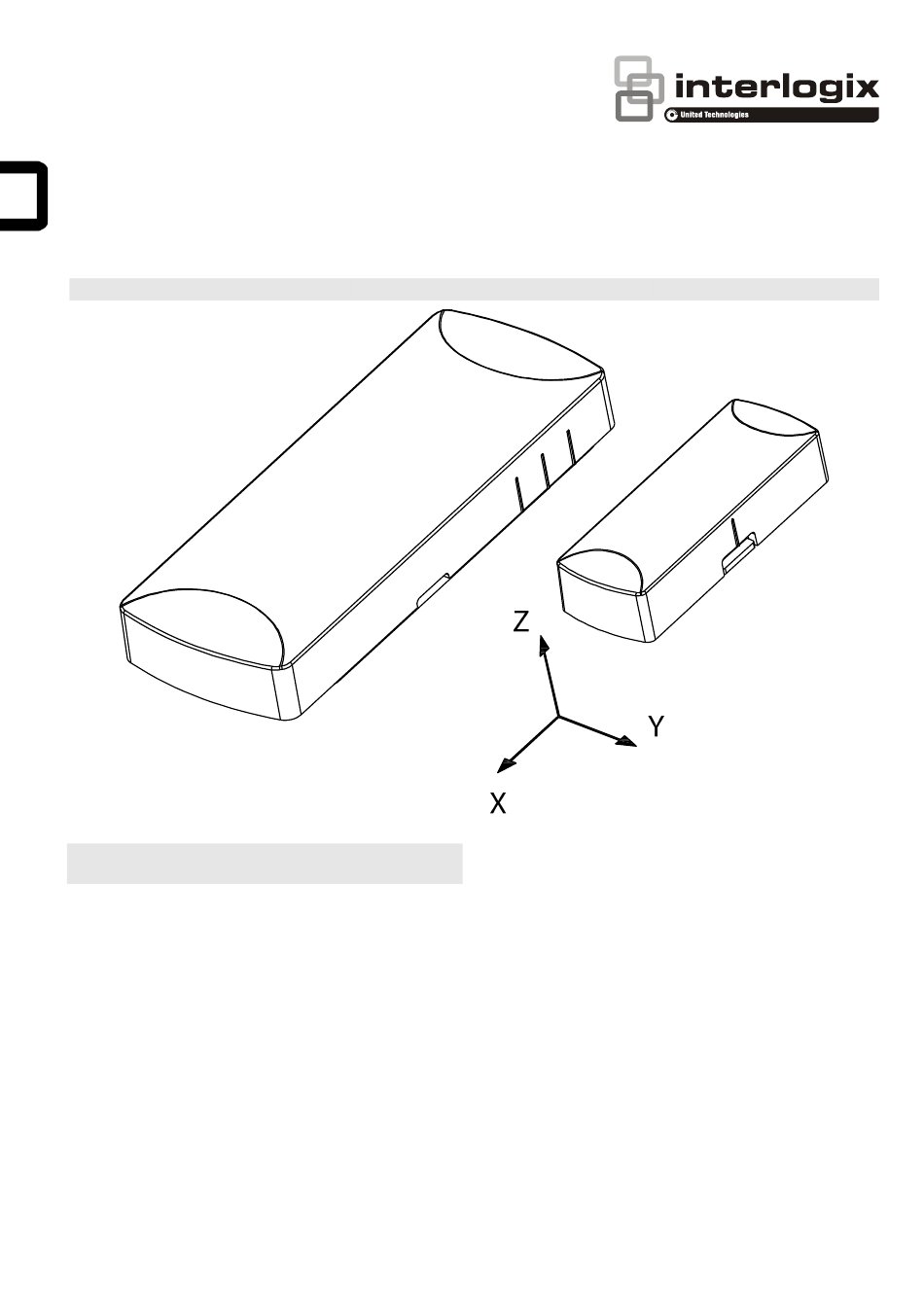

One side of the sensor is marked with 3 lines; this indicates the
location of the reed switch. The magnet should be mounted
facing this side of the sensor. Please check the table about
distances to define the maximum distance in each direction.
Included with this device is double sided tape for the contact
and the magnet. Choose a suitable location for the sensor by
© 2018 UTC Fire & Security Americas Corporation, Inc.
following the procedure in the section "Testing the Sensor"
ensuring desired signal strength is achieved. For reliable
bonding, ensure the surface is clean and dry. Apply the tape to
the sensor and then to the desired location. Apply firm
pressure for several seconds.
Note:
When mounting with double sided tape, ensure
temperatures are above 10°C and will remain above 10°C for
at least 24 hours to ensure proper bond. After 24 hours, the
bond will hold at lower temperatures.
You can also use the contact back plate that shall be screwed
to the mounting surface. Any removal from the surface will
activate the back tamper.
Where possible, install sensors within 30 m of the panel. While
a transmitter may have an open-air range of 150 m or more,
the environment at the installation site may have a significant
effect on operational range. Changing a sensor location may
improve wireless communication.
1 / 14
P/N 422-5829 • REV C • ISS 01FEB18
