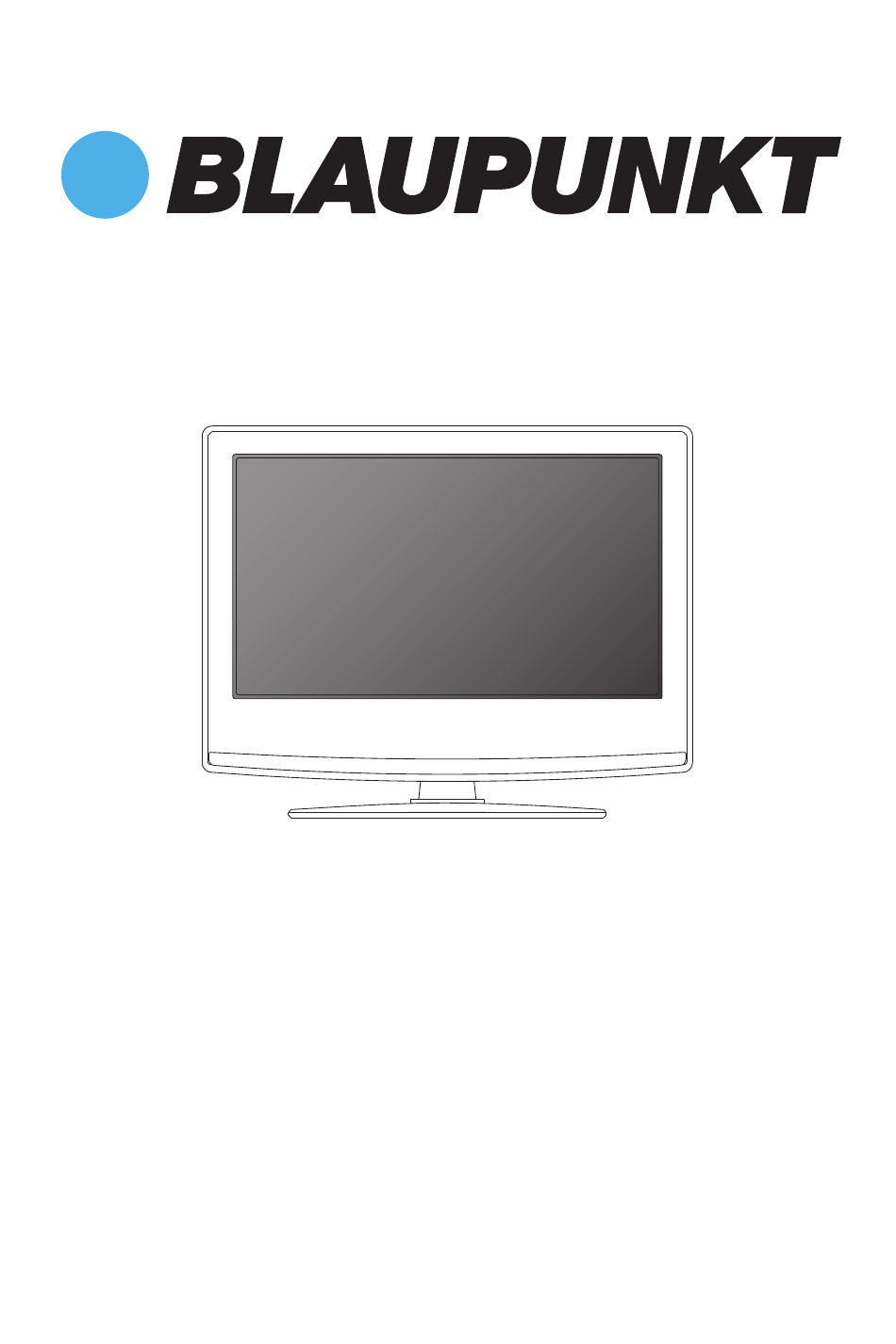

  • Page 1 HD Ready LED TV with Freeview & USB media player User Guide Model No 32/136O-WB-11B-EGP 32/136O-WB-11B-EGU 32/136O-WB-11B-EGDP 32/136O-WB-11B-EGDU...
  • Page 2 WARNING: Never place a television set on an Important safety instruction unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Use cabinets or stands recommended by the manufacturer of the television set.
  • Page 3 • Time displays. Important safety instruction • Teletext: Do not view a stationary page for a long period of time • TV/DVD menus: e.g. listings of DVD disc content. • Pause mode: Do not leave the TV in pause mode for long periods of time, e.g.
  • Page 4: Trademarks

    Trademarks The terms HDMI and HDMI High-Defi nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. HDTV The “HD TV” Logo is a trademark of DIGITALEUROPE. The DVB logo is the registered trademark of the Digital Video Broadcasting (DVB) project.
  • Page 5: Table Of Contents

    CONTENTS Manufacturers Guarantee Information ........3 Important Safety Instructions .
  • Page 6: What Is Included In The Box

    What is Included in the Box WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories 1 x User Guide 1 x Remote Control User Guide 2 x AAA Batteries 1 x Quick Start Guide Quick Start Guide 1 x Stand installation pack...
  • Page 7 Attaching the Stand ATTACHING THE STAND Attaching the stand feet To complete the stand feet installation you will require a cross head screw driver. Screws that are included. TV panel must be facing downwards. (fi g.1) Place the TV set on a fl at and clean surface with the panel facing downwards to avoid damage, then fi...
  • Page 8: Securing The Tv To A Wall/Wall Mounting

    Securing the TV to a Wall/Wall Mounting SECURING THE TV TO A WALL Securing the TV to a wall with anti-tip straps For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright.
  • Page 9: Remote Control

    Remote Control REMOTE CONTROL STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa DTV - Switch to Freeview source RADIO - Switch to radio whilst in Freeview source USB - Switch to USB source DVD - Switch to DVD source NUMBER BUTTONS - 0 –...
  • Page 10: Tv Buttons And Input Source Menu

    TV Buttons and Input Source Menu TV BUTTONS AND INPUT SOURCE MENU Standby Power On/Off Displays the input source menu Displays Menu/OSD Programme/Channel down and menu down Programme/Channel up and menu up Volume down and menu left Volume up and menu right Play/Pause DVD Stop/Eject DVD STANDBY...
  • Page 11: Connections

    Connections CONNECTIONS DIGITAL AUDIO OUT OPTICAL RF IN EARPHONE ETHERNET SCART Earphones Earphone Input HDMI 3 HDMI input Ethernet/LAN* Network Connection 2 x USB USB port Optical audio Digital optical audio output CI CARD IN Common Interface module SCART SCART input Service ** Service input HDMI 1 (ARC)
  • Page 12 Connections CONNECTIONS Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is Included In The Box’ page. Connecting to a device with Composite AV/Video output TV Source should be set to Composite/AV L (white) L (white) R (red) R (red)
  • Page 13 Connections CONNECTIONS Connecting to a device with Component/YPbPr output If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound). TV Source should be set to Component/YPbPr Y (green) Y (green)
  • Page 14: Tv Menu Operation

    TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Picture Mode - Choose from the following presets: Dynamic...
  • Page 15 TV Menu Operation PICTURE MENU Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs Auto 16:9 Automatically displays the best picture format so the picture is in the correct position.
  • Page 16: Sound Menu

    TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 17: Channel Menu

    TV Menu Operation CHANNEL MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 18: Lock Menu

    TV Menu Operation LOCK MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 19: Time Menu

    TV Menu Operation TIME MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 20: Settings Menu

    TV Menu Operation SETTINGS MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 21: Network Configuration

    TV Menu Operation NETWORK CONFIGURATION For the network confi guration to work the TV will need to be connected to your home network via an ethernet cable, with these requirements in place the TV will connect to the network automatically. IP Confi...
  • Page 22 7 Day TV Guide and Channel List 7 DAY TV GUIDE TV Guide is available in Freeview TV mode. It provides information about forthcoming programmes (where supported by the Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.
  • Page 23 USB Mode / Media Player USB MODE/MEDIA PLAYER USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi...
  • Page 24 USB Record USB RECORD - FREEVIEW/SOARVIEW MODE USB RECORD – FREEVIEW/SAORVIEW MODE - FOR MODELS WITH THE PVR FUNCTION ONLY Built into this television is a USB record facility. This function is available in Freeview/Soarview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this are as follows: •...
  • Page 25 DVD Setup DVD SETUP Applies to models with built-in DVD players only To enter this menu please ensure the TV is in DVD source & press [DVD SETUP] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 26: Day Tv Guide And Channel List Usb Mode / Media Player Usb Record - Freeview / Saorview Dvd Setup

    General Information USING YOUR TV WITH A SKY DIGITAL SET TOP BOX Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room) Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately) .
  • Page 27: Using Your Tv With A Sky Digital Set Top Box

    General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder Option 1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available sound by connecting additional separately) to connect to an amplifi er/surround sound system. Please note this will speakers.
  • Page 28 General Information FREQUENTLY ASKED QUESTIONS DVD (For TV models I have inserted a disc but it is 1) Ensure you have inserted the disc facing the correct way. with DVD only) not playing. 2) Ensure the disc is clean and is not scratched. 3) Some copied discs will not play.
  • Page 29 General Information TECHNICAL SPECIFICATION Product fi che Trademark Blaupunkt Model ID (Models with built in DVD player) 32/136O-WB-11B-EGP 32/136O-WB-11B-EGDP 32/136O-WB-11B-EGU 32/136O-WB-11B-EGDU Energy effi ency class Visible screen size (diagonal) 81 cm / 32 inches On mode power consumption 31.0 W...
  • Page 30: Technical Specifi Cations

    General Information TECHNICAL SPECIFICATION Compatible fi les in USB Mode Codec Remark Media File Ext. Audio Video Max Resolution: 1920x1080 .mpg MPEG-1, MPEG-2 Max Data Rate: 40 Mbps Xvid, MJPEG .avi MPEG-4 SP/ASP, H.263/H.264 MPEG-2, H.264, HEVC MP3, AAC, Max Resolution: 1920×1080 AC3, PCM, MOVIE MPEG-4 SP/ASP,...
  • Page 31 BLA/MAN/0344...
