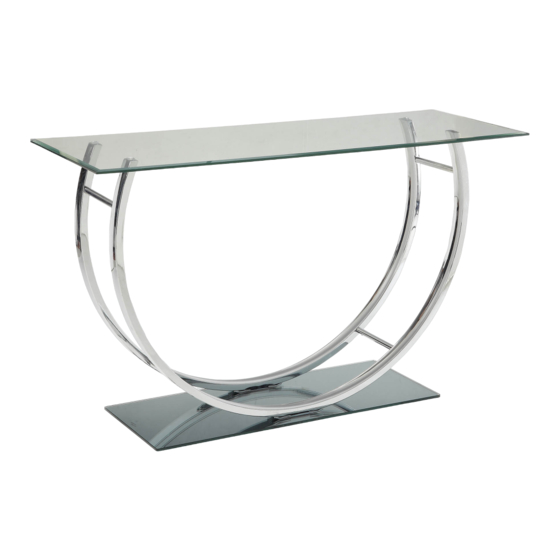

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 704989 SOFA TABLE REVISION 0 : 09/12/2017 REVISION 1 : 06/18/2020 PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
704989 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. - Page 3 704989 ITEM: ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS SPRING WASHER SMALL ALLEN WRENCH 6PCS (5/16") (4mm) LARGE ALLEN WRENCH (5mm) STEP 1 Do not tighten until each step is completed or instructed. PAGE 3 OF 7 PAGE 3 OF 5 COASTERFURNITURE.COM...
- Page 4 704989 ITEM: ASSEMBLY INSTRUCTIONS STEP 2 STEP 3 PAGE 4 OF 5 COASTERFURNITURE.COM...
- Page 5 704989 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 1220 X 431 X 743 H (MM) Product Size : 48" X 17" X 29 " 743 mm " 1220 mm 431 mm 48" 17" Note : Dimension tolerance ±5% PAGE 5 OF 5...
