ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
Fine Furniture for every stage of life
REVISION 0 : 12/26/2022
REVISION 1 : 03/31/2023
TV CONSOLE
PAGE 1 OF 12
704251
COASTERFURNITURE.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the 704251 and is the answer not in the manual?

Questions and answers

Related Manuals for Coaster 704251

Summary of Contents for Coaster 704251

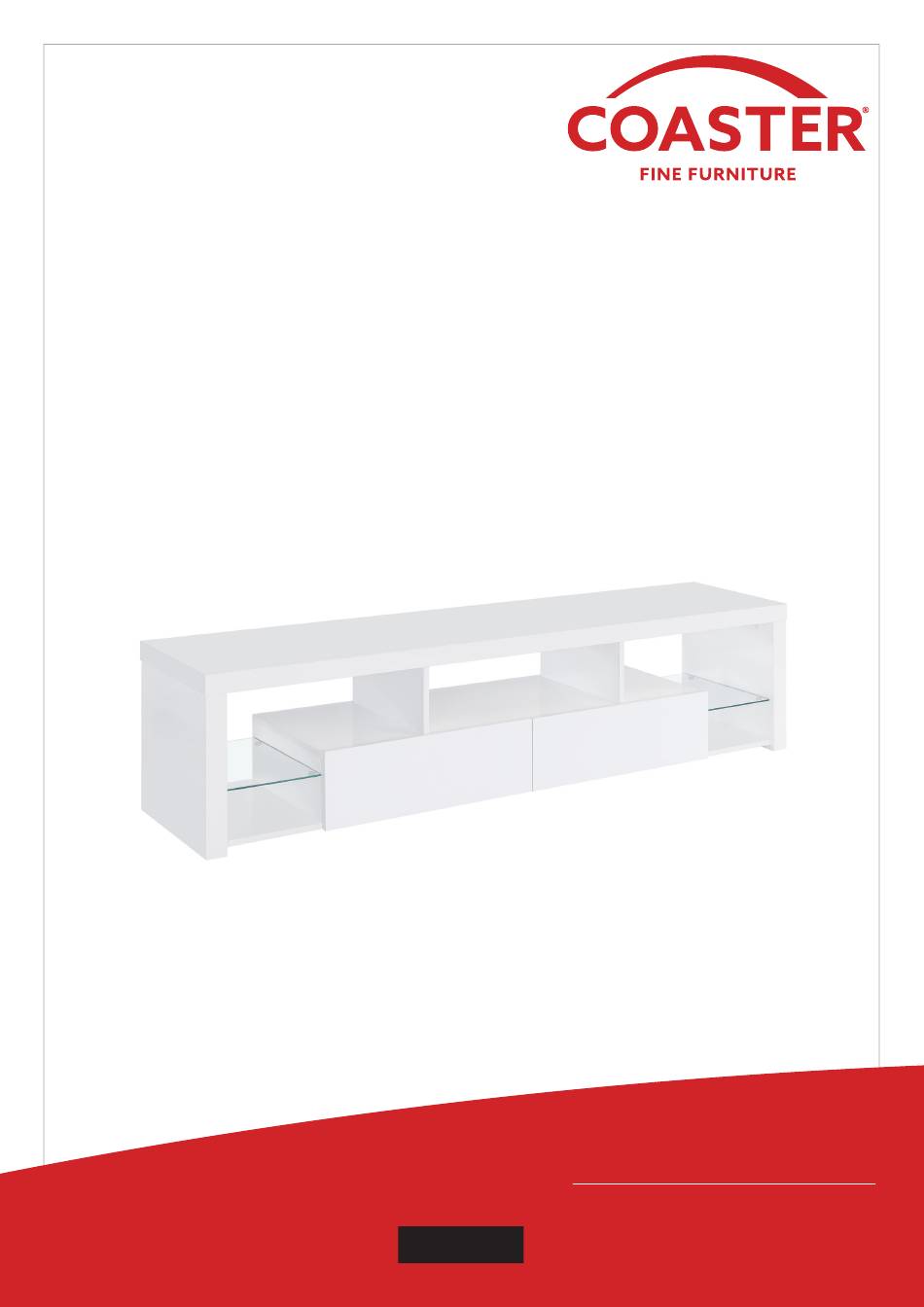

  • Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 704251 TV CONSOLE REVISION 0 : 12/26/2022 REVISION 1 : 03/31/2023 PAGE 1 OF 12 COASTERFURNITURE.COM...

  • Page 2: Parts Identification

    704251 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
  • Page 3 704251 ITEM: DRAWER DRAWER LEFT 2 PCS BOTTOM 2 PCS SIDE PANEL SUPPORT DRAWER RIGHT RIGHT SIDE 2 PCS 1 PC SIDE PANEL PANEL DRAWER 2 PCS GLASS 2 PCS BOTTOM PANEL NOTE: Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.

  • Page 4: Hardware Identification

    704251 ITEM: HARDWARE IDENTIFICATION DESCRIPTION FIGURE Q’TY DESCRIPTION FIGURE Q’TY PLASTIC FEET GLUE 40g 1 PC 4 PCS Ø15mm WOODEN DOWEL GLASS PIN 36 PCS 8 PCS Ø8x30mm Ø5x23mm SR CAM BOLT GLIDES 24 PCS 2 SET Ø7x35.5mm SR L=350mm SR...
  • Page 5 704251 ITEM: STEP 1 STEP 2 x 12 INCORRECT CORRECT Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 5 OF 12 COASTERFURNITURE.COM...
  • Page 6 704251 ITEM: STEP 3 x 12 the reverse side Apply glue on all wooden dowels to ensure integrity of the structure. STEP 4 x 12 PAGE 6 OF 12 COASTERFURNITURE.COM...
  • Page 7 704251 ITEM: STEP 5 x 14 STEP 6 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 7 OF 12 COASTERFURNITURE.COM...
  • Page 8 704251 ITEM: STEP 7 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 8 9 (R) PAGE 8 OF 12 COASTERFURNITURE.COM...
  • Page 9 704251 ITEM: STEP 9 STEP 10 PAGE 9 OF 12 COASTERFURNITURE.COM...
  • Page 10 704251 ITEM: STEP 11 STEP 12 STEP 13 STEP 14 x 10 PAGE 10 OF 12 COASTERFURNITURE.COM...
  • Page 11 704251 ITEM: STEP 15 STEP 16 PAGE 11 OF 12 COASTERFURNITURE.COM...
  • Page 12 704251 ITEM: 14.35" 9.41" 11.22" 9.72" 23.62" 14.72" 11.22" 7.26" 14.72" 4.74" 14.17" 0. 81" 66.77" 14.72" 4.13" 21.08" 13.17" 7.87" 23.52" Note : Dimension tolerance ±5% PAGE 12 OF 12 COASTERFURNITURE.COM...
  • Page 13 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 704254 MEDIA TOWER REVISION 0 : 12/27/2022 PAGE 1 OF 11 COASTERFURNITURE.COM...
  • Page 14 704254 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. WARNING! 1.
  • Page 15 704254 ITEM: HARDWARE IDENTIFICATION DESCRIPTION FIGURE Q’TY DESCRIPTION FIGURE Q’TY GLASS PIN GLUE 15g 1 PC 8 PCS Ø5x23mm SR WOODEN DOWEL HINGE 12 PCS 2 PCS Ø8x30mm Ø35mm SR CAM BOLT HINGE SCREW 12 PCS 8 PCS Ø7x35.5mm SR Ø4x15mm SR CAM LOCK 12 PCS...
  • Page 16 704254 ITEM: STEP 1 x 12 INCORRECT CORRECT Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 4 OF 11 COASTERFURNITURE.COM...
  • Page 17 704254 ITEM: STEP 2 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 3 PAGE 5 OF 11 COASTERFURNITURE.COM...
  • Page 18 704254 ITEM: STEP 4 STEP 5 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 6 OF 11 COASTERFURNITURE.COM...
  • Page 19 704254 ITEM: STEP 6 STEP 7 PAGE 7 OF 11 COASTERFURNITURE.COM...
  • Page 20 704254 ITEM: STEP 8 LEFT RIGHT HORIZONTAL BY SCREW A ADJUSTMENT LATERAL BY SCREW B ADJUSTMENT VERTICAL BY SCREW C ADJUSTMENT PAGE 8 OF 11 COASTERFURNITURE.COM...
  • Page 21 704254 ITEM: STEP 9 STEP 10 COMPLETE PAGE 9 OF 11 COASTERFURNITURE.COM...
  • Page 22 704254 ITEM: 19.53" 14.37" 14.17" 14.37" 43.5" 14.17" 14.37" 14.25" 7.09" 13.39" 7.83" 14.25" 16.91" 0. 81" Note : Dimension tolerance ±5% PAGE 10 OF 11 COASTERFURNITURE.COM...
  • Page 23 ANTI-TIPPING INSTALLMENT INSTRUCTIONS FURNITURE TIPPING RESTRAINT WARNING Injury may result from tipping furniture. This restraint may protect against tipping furniture. Do not allow children to climb on furniture. This restraint is not a substitute for proper adult supervision. Failure to detach this restraint before moving the furniture may result in injury and damage.
