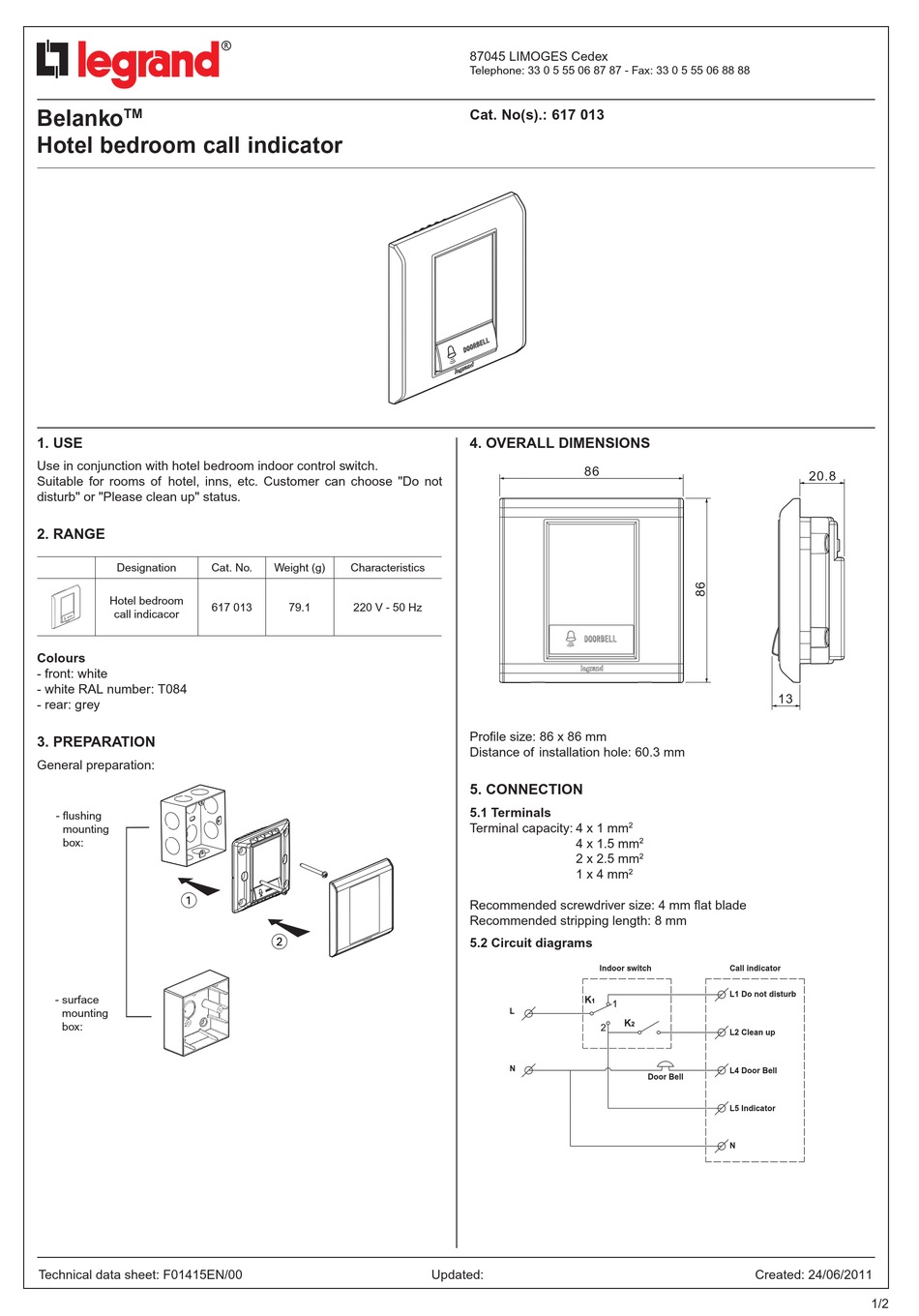

Hotel bedroom call indicator
1. USE
Use in conjunction with hotel bedroom indoor control switch.
Suitable for rooms of hotel, inns, etc. Customer can choose "Do not
disturb" or "Please clean up" status.
2. RANGE
Designation
Hotel bedroom
call indicacor
Colours
- front: white
- white RAL number: T084
- rear: grey
3. PREPARATION
General preparation:
- flushing
mounting
box:
�
- surface
mounting
box:
Technical data sheet: F01415EN/00
Cat. No.
Weight (g)
Characteristics
617 013
79.1
220 V - 50 Hz
�
87045 LIMOGES Cedex
Telephone: 33 0 5 55 06 87 87 - Fax: 33 0 5 55 06 88 88
Cat. No(s).: 617 013
4. OVERALL DIMENSIONS
86
Profile size: 86 x 86 mm
Distance of installation hole: 60.3 mm
5. CONNECTION
5.1 Terminals
Terminal capacity: 4 x 1 mm
4 x 1.5 mm
2 x 2.5 mm
1 x 4 mm
Recommended screwdriver size: 4 mm flat blade
Recommended stripping length: 8 mm
5.2 Circuit diagrams
Indoor switch
K
1
L
2
N
Updated:
13
2
2
2
2
Call indicator
L1 Do not disturb
1
K
2
L2 Clean up
L4 Door Bell
Door Bell
L5 Indicator
N
Created: 24/06/2011
20.8
1/2
