SRB3000A++X
REFRIGERATEUR REFRIGERATOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRB3000A++X and is the answer not in the manual?

Questions and answers

Related Manuals for Signature SRB3000A++X

Summary of Contents for Signature SRB3000A++X

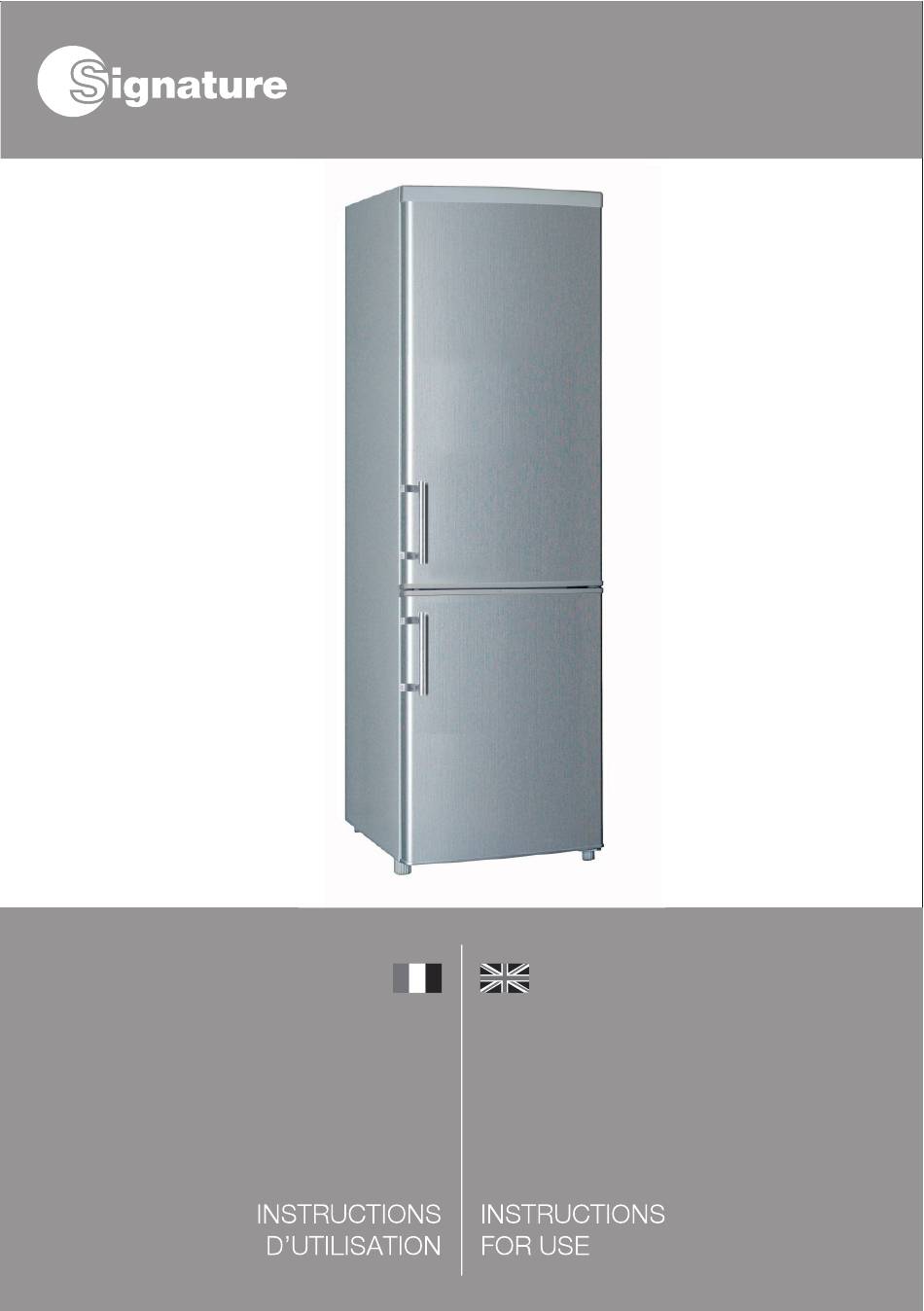

  • Page 1 SRB3000A++X REFRIGERATEUR REFRIGERATOR...
  • Page 2 Consignes de sécurité importantes -10-...
  • Page 3 CONSIGNES DE SECURITE IMPORTANTES 1. CONSIGNES DE SECURITE IMPORTANTES � Si le câble d’alimentation est endommagé, il doit être remplacé par le fabricant, son service après vente ou des personnes de qualification similaire afin d’éviter tout danger. � L’eau contenue dans les aliments ou dans l’air à l’intérieur du réfrigérateur en ouvrant des portes peut former une couche de givre à...
  • Page 4 CONSIGNES DE SECURITE IMPORTANTES 1. CONSIGNES DE SECURITE IMPORTANTES...
  • Page 6 INSTRUCTIONS D’INSTALLATION...
  • Page 7 INSTRUCTIONS D’INSTALLATION...
  • Page 11 Schéma de circuit électrique thermostat thermostat marron marron blanc blanc jaune/vert jaune/vert Klixon Klixon prise de prise de courant courant relais relais Phase Phase Terre Terre jaune/vert jaune/vert Neutre Neutre jaune/vert jaune/vert compresseur compresseur...
  • Page 12 SRB3000A++X AC 220-240V 0.45A 50Hz 310 L R600a(86g) 0.580kW.h/24h CLASSE I 70kg CYCLOPENTANE...

  • Page 13: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS 1. Safety Precautions 2. Structure Illustration 3. Instructions for Installation 4. Operation 5. Cleaning and Maintenance 6. Troubleshooting 7. Technical Specifications -10-...

  • Page 14: Safety Precautions

    THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! Please read these instructions carefully before the first use of this product and save this manual for your future reference. 1. SAFETY PRECAUTIONS Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
  • Page 15 1. SAFETY PRECAUTIONS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 16: Structure Illustration

    2. STRUCTURE ILLUSTRATION Thermostat Upper bracket Shelf Drain Port Crisper Cover Lower bracket Crisper Freezing Drawer Drain hose Gasket (Back) Compressor (Back) Leveling Feet...

  • Page 17: Instructions For Installation

    3. INSTRUCTIONS FOR INSTALLATION Good Ventilation There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm.
  • Page 18 3. INSTRUCTIONS FOR INSTALLATION Protection from Heat The refrigerator should be far away from any heat source or direct sunshine. Fixing Stable Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc.

  • Page 19: Operation

    4. OPERATION 1. When operating the refrigerator for the first time, set the thermostatic dial at 3, connect the electric wire and run it without loading any food. Usually this takes 2 or 3 hours. Then set the thermostatic dial at the desired setting and place foods into the refrigerator .

  • Page 20: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE The refrigerator should be cleaned and maintained once a month. When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet. Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth.

  • Page 21: Troubleshooting

    6. TROUBLESHOOTING 1. When the refrigerator does not work Check if there is a power failure. Check if the power plug is plugged into the power outlet. Check that the fuse has not blown. 2. When the refrigerator is cooling excessively The temperature control dial may be set too high.
  • Page 22 6. TROUBLESHOOTING 7. When the cabinet's side panel heats up The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

  • Page 23: Technical Specifications

    7. TECHNICAL SPECIFICATIONS Model: SRB3000A++X AC 220-240V Rated Voltage: 0.45A Rated Current: Rated Frequency: 50Hz Input Power: Total Storage Volume: 310 L Climate Class: Refrigerant /Amount: R600a(86g) Energy Consumption: 0.580kW.h/24h Electric Shock Protection Class: CLASS I Net Weight: 70kg Insulation Blowing Gas:...
  • Page 24 CKSNT-C01...
