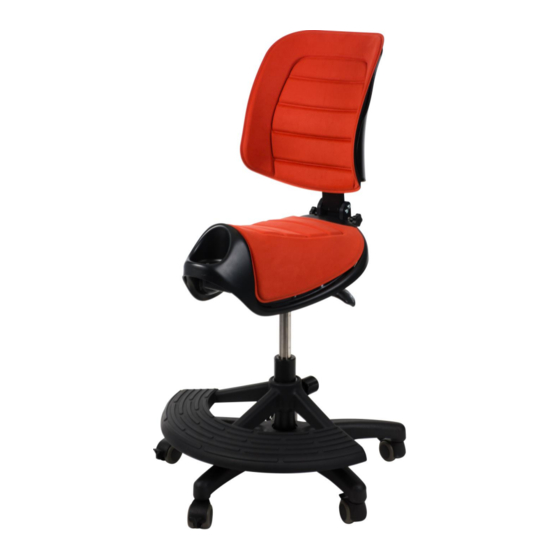

Krabat Jockey Lite
User manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jockey Lite and is the answer not in the manual?

Questions and answers

Summary of Contents for Krabat Jockey Lite

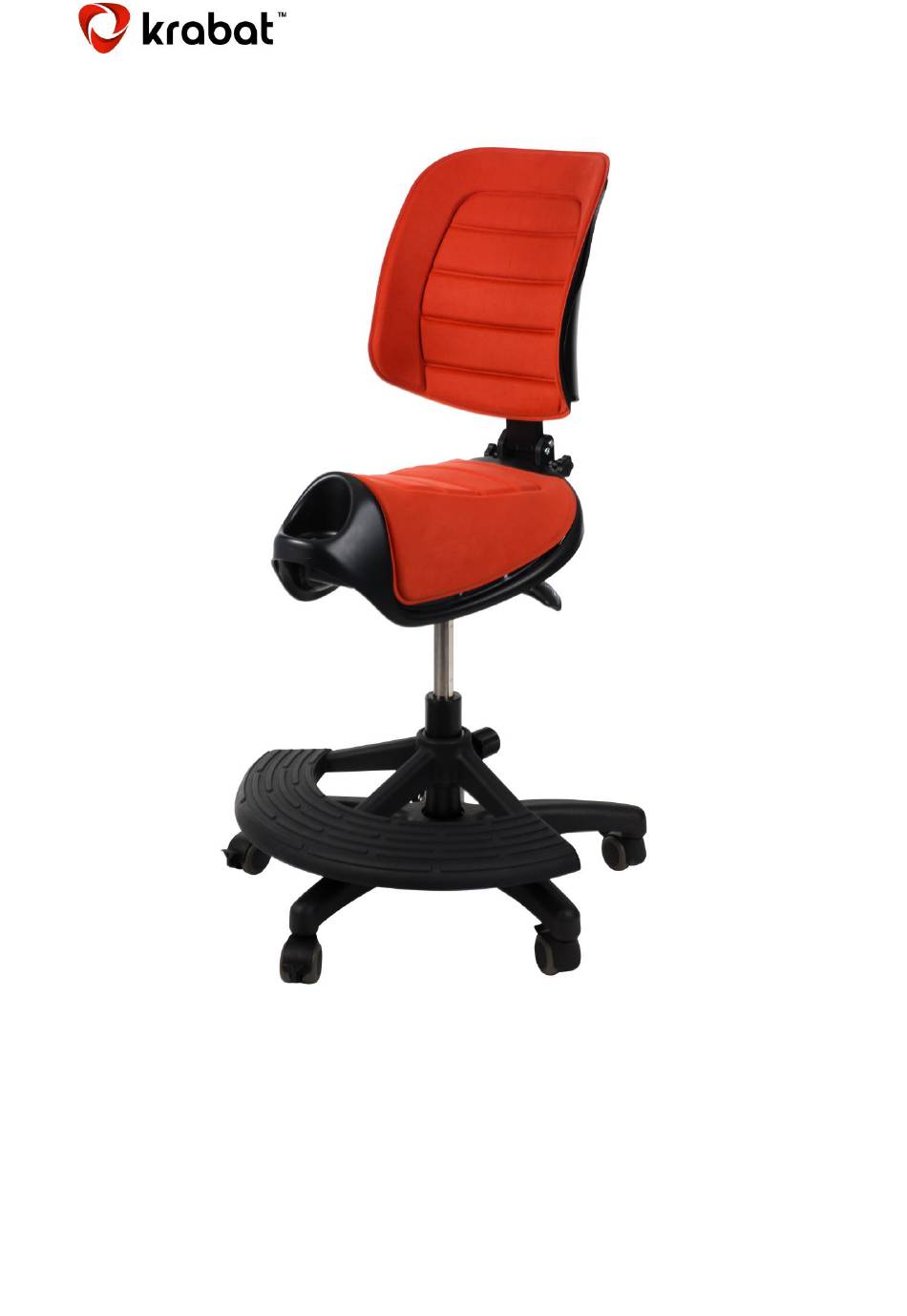

  • Page 1 Krabat Jockey Lite User manual...
  • Page 2 Safety All Krabat products are CE marked according to MDR 2017/745 and 93/42 / EØF, Class 1 of 14 June 1993 - Medical Device Directive. This certifies that it meets all relevant European safety requirements. This manual is approved according to these standards. The shelf life of the product corresponds to a lifespan of about 5 years under normal use.
  • Page 3 Executed by: Author: Signature: Date: A.L. Sørensen 10.10.2016 Approved by: CEO: Signature: Date: Fredrik Brodtkorb 10.10.2016 Revision history: Revision: Date: Author: Notes: 10.10.2016 A.L. Sørensen Etablished 29.04.2021 J.Sørensen Major layout changed, warnings, technical data and revision table added 22.06.2021 A. Simensen 05.0 –...
  • Page 4: Table Of Contents

    Jockey & Jockey Plus General 01.0..................s. Main components 02.0............... s. 03.0....................s. Optional equipment 04.0............s. Maintenance 05.0................s. Individual adjustments 06.0. …..........s. Technical data 07.0. ………………………………………………..……………….. s. Warnings and definitions 08.0..........s. Warranty 09.0.
  • Page 6: General

    The upright and active position will also benefit speech, swallowing and respiration. Krabat Jockey Lite is an active chair for children between the age 2 – 16 years of age (3 sizes). To ensure an optimal sitting position it is...
  • Page 7: Main Components

    02 - Main components -Jockey Lite w/ manual elevation Krabat Jockey Lite with manual elevation has the following main components: 01 Saddle seat with adjustable angle of the sitting unit 02 Adjustable backrest 03 Adjustable individual footrests or footrest-in-one 04 Undercarriage...
  • Page 8: Use

    This should be done by a therapist who has received training from Krabat AS, or a representative for Krabat AS. All angles can be adjusted infinitely. The individual footrests can be adjusted by loosening the 4 screws shown in fig.
  • Page 9 03.1 - Adjustments Fold down back rest: Loosen handle (01), loosen the 2 grip knobs (02), fold down back rest Back rest height adjustment: Loosen handle (01), adjust height, tighten handle (01) Seat adjustment: Pull lever upwards (03), adjust height, release lever (03) Seat tilt angle adjustment: Pull lever (04), adjust tilt angle, release handle (04) Foot rest adjustment: Loosen grip knob (05), adjust foot rest, tighten grip knob (05) Lock wheels: Push down lever (06)
  • Page 10: Maintenance

    Wash the chair’s components when needed. Follow normal hygiene advice and keep the chair clean and tidy at all times. The textile is fastened to the chair with Velcro. Advice about spot removal is given at www.krabat.com. Bearings and other movable parts are maintenance free and should not be lubricated.
  • Page 11: 07.0. Technical Data

    07 - Technical data Size 1 Size 2 Size 3 Depth of seat 28 cm 34 cm 42 cm Angle of backrest Fixed 90° Fixed 90° Fixed 90° Angle of seat -15° forward / 0° 15° forward / 0° -15° forward / 0° backwards backwards backwards...
  • Page 12: Warnings And Definitions

    Krabat, information that accompanied the product or information available on Krabat.no. A general rule is that any movement outside the "footprint" of the product towards the surface can pose a risk of tipping. The higher the user, will also affect the possibility of tipping.
  • Page 13 If Krabat Jockey Lite is stored cold (below 0 degrees Celsius), wait 20 minutes before using the chair. If the Krabat Jockey Lite is stored in a warm place (above 50 degrees Celsius), all surfaces must be allowed to cool to ambient temperature before placing the child in the chair. Wait 20 minutes before using the chair.
  • Page 14 Explanations of symbols Explanation of the various symbols used on the product and in this manual: Symbol Importance Importance Expanations Symbol for use worth marking medical Producer Indicates the manufacturer of medical devices equipment. Medical electrical equipment - Part 1: General See instructions Indicates the need for the user to see the requirements for basic safety and essential...
  • Page 15: Warranty

    VII. Always – when not in use - store the KRABAT product in a safe manner in order for it not to be misused by anyone, and furthermore for the purpose of not exposing the KRABAT product to conditions that may harm it and/or its functions.
  • Page 16 KRABAT. 10. This WARRANTY does not cover normal wear and tear. 11. KRABAT shall not under any circumstances be liable for defects in any part of a KRABAT product for more than two (2) years from delivery. 12. Save as set out above under this WARRANTY, KRABAT, as well as its authorized representatives, shall not be liable for any defects of the KRABAT product.
