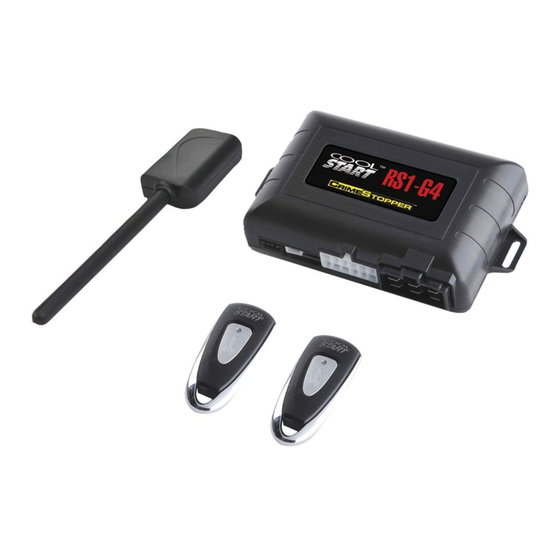

RS1-G4 / RS3-G4 / RS4-G4
RS7-G4
(
PAGING SYSTEM
RS00-G4 (
ADD-ON MODULE
REMOTE START SYSTEM
CONGRATULATIONS on your choice of a "Cool Start" System with Data Port Technology for direct connection to bypass
module by Crimestopper Security Products Inc. This booklet contains the information necessary for installing your remote
starter system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech
Support number below.
Note: Some features will not be available on units with 1 button, 3 button, and 4 button remotes.
DISCLAIMER:
This installation book is designed for the installer or individual with an existing understanding of automotive electrical
systems, along with the ability to test and connect wires for proper operation. To ease installation, we suggest that you
READ THIS MANUAL before beginning your installation. This book is provided as a GENERAL GUIDELINE and the
information contained herein may differ from your vehicle. Crimestopper Security Products, Inc. and its' vendors shall not
be liable for any accident resulting from the use of this product. This system is designed to be professionally installed into
a vehicle in which all systems and associated components are in perfect working condition.
TECHNICAL SUPPORT: (800) 998-6880
Monday - Friday 8:00am - 4:30pm Pacific Std. Time
Web Site: www.crimestopper.com
E-mail: tech-support@crimestopper.com
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063
REV A 08-2013
)
)
INSTALLATION INSTRUCTIONS
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference that
may be received, including interference that may cause undesired
operation. The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modification could void the user's authority to use the
equipment.
