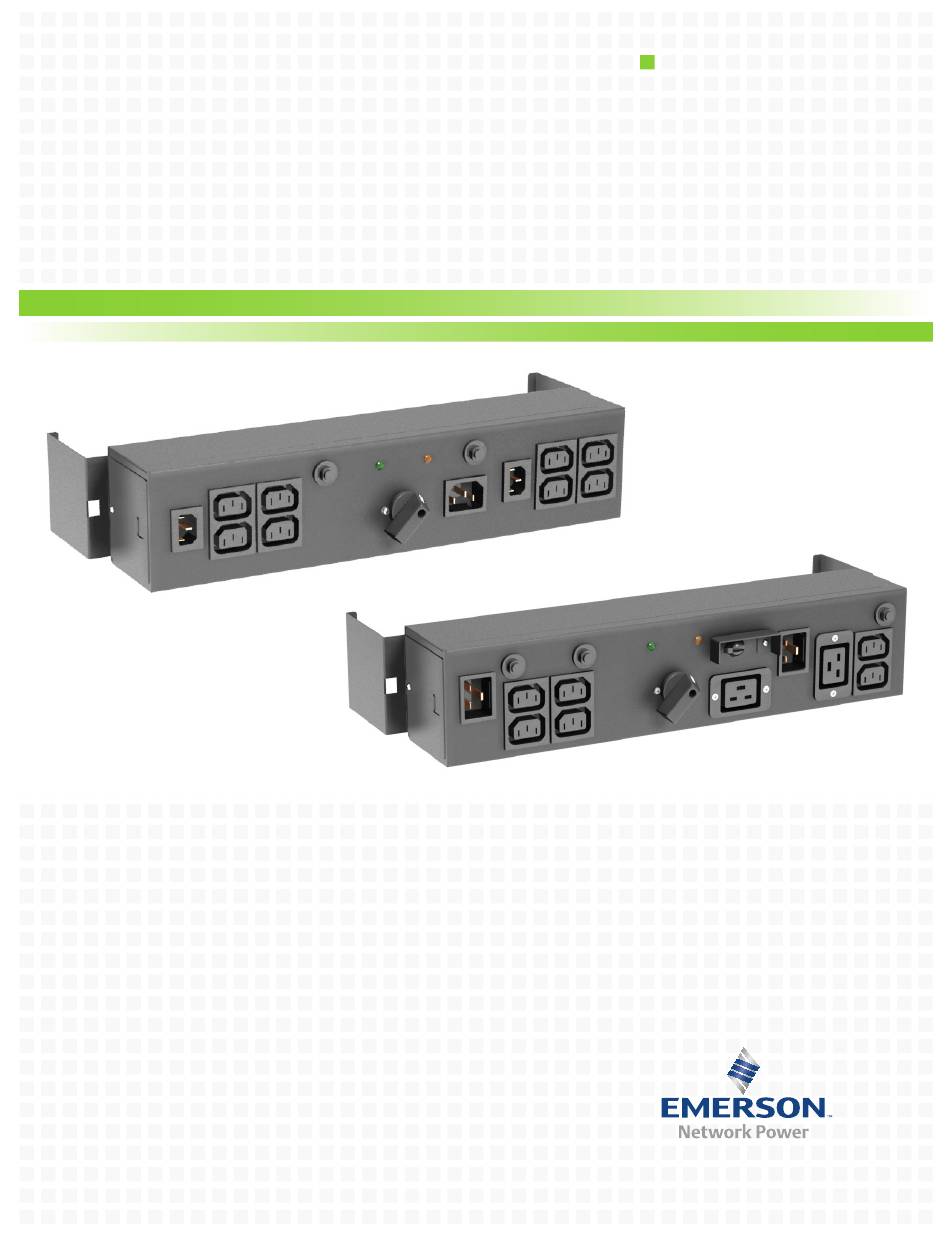

- Page 1 AC Power For Business-Critical Continuity™ Liebert MicroPOD 230V ® ™ User Manual...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ......... . .1 MPORTANT AFETY NSTRUCTIONS... -
Page 5: Important Safety Instructions
WARNING Do not modify the cables in any way. Consult your local Emerson representative if the AC cords do not match the mains receptacle. The Liebert MicroPOD must be grounded at all times while in use. Turn Off the UPS before unplugging Liebert MicroPOD. -
Page 6: Glossary Of Symbols
Glossary of Symbols LOSSARY OF YMBOLS Indicates AC Input. Indicates AC Output. Consult the manual for additional information. MAINS lamp indicates local power is available and the load may be MAINS transferred to bypass the UPS. UPS lamp indicates UPS power is available and the load may be transferred to the UPS to provide computer-grade power to the load. -
Page 7: Introduction And System Description

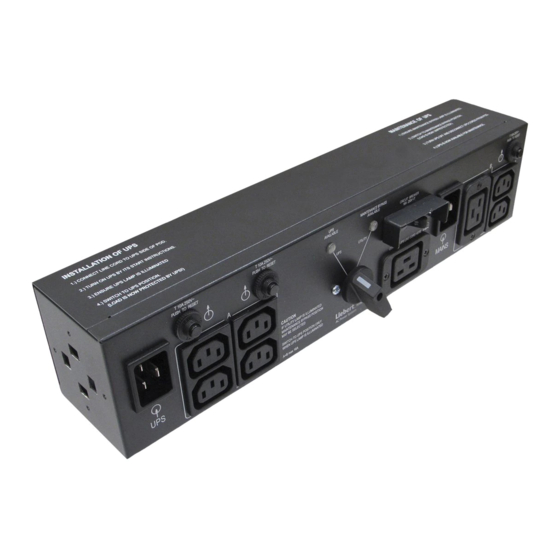

Introduction and System Description NTRODUCTION AND YSTEM ESCRIPTION The Liebert MicroPOD provides maintenance bypass capability as well as power output distribution. The Liebert MicroPOD can be used on UPSs in either rack mount or tower configuration. The Liebert MicroPOD provides an isolated path of power for your UPS system for preventive mainte- nance or service. -
Page 8: Installation
Installation NSTALLATION Installation on a Liebert GXT UPS NOTE This manual provides instructions for the Liebert MicroPOD only. Refer to your UPS manual for UPS operation and installation instructions. 1. Unpack the Liebert MicroPOD carefully, noting the packing method. Retain the box and packing material for possible future shipments. -
Page 9: Rack Mount Installation
Installation Rack Mount Installation 1. Rack mount installation of the Liebert MicroPOD is possible with the use of the rack mounting brackets (shipped with the Liebert MicroPOD). See Figure 5. 2. The rack mount brackets allow you to rack mount the Liebert MicroPOD in a 19" enclosure. 3. -
Page 10: Startup Procedure
Startup Procedure TARTUP ROCEDURE CAUTION This UPS must be installed by properly trained and qualified personnel and wired in accordance with local, national and regional electrical codes. CAUTION The mains input supply to the Liebert MicroPOD must be protected by a branch rated circuit breaker. -
Page 11: Indicator Lamps
Indicator Lamps NDICATOR AMPS Mains Indicator Lamp This amber lamp is illuminated when mains power is present (see Figure 6). It signals that loads can be transferred to maintenance bypass (Mains mode) operation via the rotary switch. If mains power is not present, this lamp will be off and the UPS will supply battery backup power to connected loads. -
Page 12: Operation
Operation PERATION Transfer to Maintenance Bypass To transfer to maintenance bypass (mains) from UPS, use the following steps: 1. Ensure the Mains lamp (amber) is illuminated. If the lamp is not illuminated, refer to 9.0 - Troubleshooting. 2. Transfer the rotary switch from UPS to MAINS, provided the Mains lamp is illuminated on the Liebert MicroPOD. -
Page 13: Specifications
Specifications PECIFICATIONS Table 1 Specifications—Liebert MicroPOD units Power Distribution Box Model # Model # MP2-210K MP2-220L MP2-220K 700 - 1500 3000 2000 Used w/ LiebertGXT Rating, VA Dimensions, W x D x H, in (mm) Unit 15.51 x 3.03 x 3.46 (394 x 77 x 88) Shipping 18.5 x 8.27 x 6.49 (470 x 210 x 165) Weight, lb (kg) -
Page 14: Troubleshooting
To register for warranty protection, visit the Quick Links section of the Liebert Web site at: http://www.liebert.com Click on Product Warranty Registration and complete the form. If you have any questions, contact Emerson Channel Support at: North America: 800-222-5877 Outside North America: 00-800-1155-4499 E-mail: liebert.upstech@emerson.com... - Page 16 Power Switching & Controls Services DC Power Infrastructure Management & Monitoring Precision Cooling Surge Protection Emerson, Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks of Emerson Electric Co. or one of its affiliated companies. ©2010 Emerson Electric Co.
