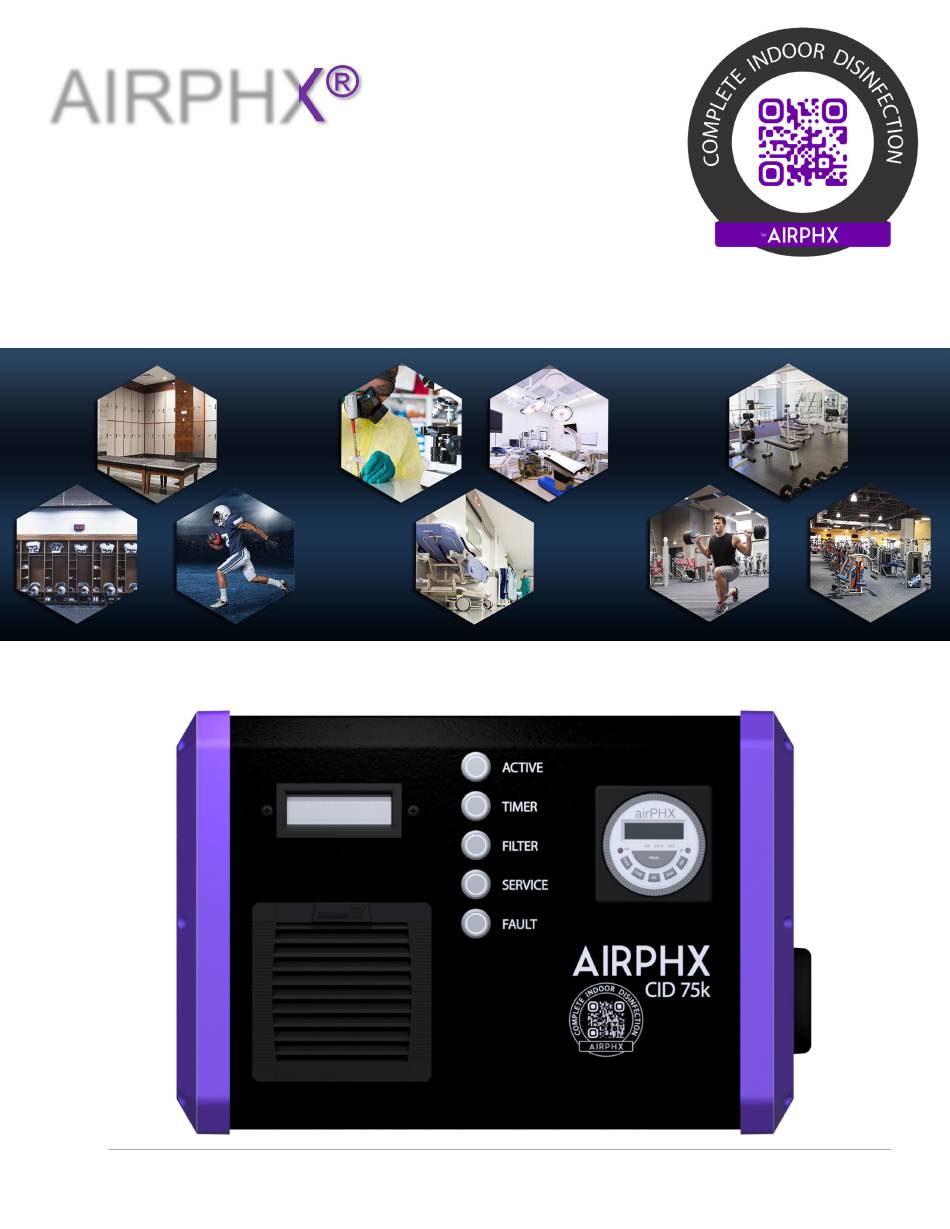

- Page 1 AIRPHX ® CID 75k Quick Reference Guide Series 1 Rev 6 ● 12 2020 AIRPHX 1 | Page ...
- Page 2 1 Overview This is a quick refence guide for the CID 75k. This guide provides an overview of the operation of switches and LED indicators found on the front of the CID 75k. For a more detailed information about the operation of the CID 75k, please download the Operation and Installation Guide that can be found at www.airphx.com/installation. Please check the shipping box that your AIRPHX CID 75k arrived in for damage. If any damage is found, please contact your AIRPHX representative prior to installation 855‐424‐7749 (855‐4 AIRPHX). Included in the box o CID 75k o Easy mount wall bracket o Mounting hardware o AC power cord o Quick Reference Guide o AIRPHX 7 Day Timer User Guide o Annual supply of filters 2 | Page ...
-
Page 3: Table Of Contents
Contents Overview ...................... 2 Front Cover Overview .................. 4 Switches: ........................ 4 Button/LED Function: .................... 4 Active: ........................ 4 Timer: ........................ 4 Filter: ........................ 4 Front Cover Overview cont. ................ 5 Service: ........................ 5 Fault: ........................ 5 Indicators Quick Reference Overview .............. 6 Normal operation .................... 6 7 Day Timer is on – schedule program is in an ON cycle ........ 6 ... -
Page 4: Front Cover Overview

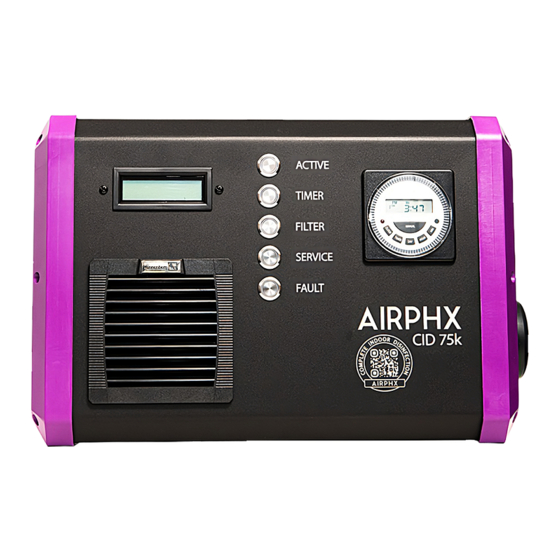

2 Front Cover Overview Switches: The CID 75k has the total of 5 push buttons with LED ring indicators. Active, Timer, Filter, Service and Fault. Button/LED Function: Active: The Active LED is not an actual push button but instead an LED indicator that follows the state of the plasma cells operation. The LED will illuminate green when the plasma cell is running and will be off when the plasma cell is not running. In addition to illuminating green, the Active LED can also illuminate red indicating a fault has been detected within the plasma cell. If this occurs, a fault message will be displayed on the LCD display located on the front of the unit. LED off – Plasma cell is not running LED green – Plasma cell is running LED red – A fault has been detected with the plasma cell Timer: The Timer button/LED controls the on/off function of the 7 Day Timer on the front of the unit. When pressed, the LED will illuminate green indicating that the 7 Day Timer function is activated. In this mode of operation, the on/off function of the plasma cell is controlled by the schedules programmed in the 7 Day Timer. Button function – Turns the 7 Day Timer function on and off when pressed. LED off – 7 Day Timer function is not activated. LED green – 7 Day Timer function is activated. Filter: The Filter button/LED indicates when it is time to check the intake filter. The LED will illuminate green when the unit is first turned on and remain green for 30 days of operation. At 30 days, the LED will illuminate red as a reminder that it is time to check the filter. Please note that the unit will turn off after 45 days of operation unless the filter has been checked and the filter reset procedure has been performed. If you cannot easily see light through the filter, it needs to be replaced. Please refer to the Operation and Installation Guide for more details on how to check and replace the filter and perform the reset procedure. Button function – Reset the filter monitoring function when pressed. LED green – The filter does not need to be checked at this time. LED red – The filter needs to be checked and replaced if dirty and the filter reset procedure needs ... -
Page 5: Front Cover Overview Cont
3 Front Cover Overview cont. Service: The Service button/LED indicates when it is time to replace the plasma cell. The Service LED will illuminate green when the unit is first turned on and remain green for 365 days of operation. At 365 days, the Service LED will illuminate red indicating it is time to replace the plasma cell. In addition, the unit will turn off and remain off until the plasma cell is replaced, and the service reset procedure is performed. Please refer to the Operation and Installation Guide that can be found at airphx.com/installation for details on how to replace the plasma cell and reset the Service LED. To purchase a replacement plasma cell, go to airphx.com/shop or contact your AIRPHX representative. Button function – Reset the service monitoring function when pressed. LED green – The plasma cell does not need to be replaced at this time. LED red – The plasma cell needs to be replaced and the service reset procedure needs to be performed. Fault: The fault button/LED indicates when a fault has been detected with the CID 75k. If a fault has been detected, the Fault LED will illuminate red and a fault message will be displayed on the LCD display located on the front of the unit. The message will give you details of what is wrong with the unit. Please contact AIRPHX at airphx.com/service or contact your AIRPHX representative. Please provide the fault message displayed when requesting service. Button function – Reset the fault function when pressed. LED green – Service is not required at this time. LED red – The plasma cell needs to be replaced and the service function needs to be reset. ... -
Page 6: Indicators Quick Reference Overview
4 Indicators Quick Reference Overview Normal operation Plasma cell is on 7 Day Timer is off Filter does not need to be checked Plasma cell does not need to be replaced No faults detected 7 Day Timer is on – schedule program is in an ON cycle Plasma cell is on 7 Day Timer is on – program schedule is in an on cycle Filter does not need to be checked Plasma cell does not need to be replaced No faults detected 7 Day Timer is on ‐ schedule program is in an OFF cycle Plasma cell is off 7 Day Timer is on – program schedule is in an off cycle Filter does not need to be checked Plasma cell does not need to be replaced No faults detected 6 | Page ... -
Page 7: Indicators Quick Reference Overview Cont
5 Indicators Quick Reference Overview cont. Filter needs to be replaced Plasma cell is on 7 Day Timer is off The intake filter needs to be checked and replaced if dirty Plasma cell does not need to be replaced No faults detected Plasma cell needs to be replaced Plasma cell is off 7 Day Timer is off Filter does not need to be checked Plasma cell needs to be replaced No faults detected Fault has been detected Plasma cell is off 7 Day Timer is off Filter does not need to be checked Plasma cell does not need to be replaced A fault has been detected 7 | Page ... -
Page 8: 7 Day Timer Overview
6 7 Day Timer Overview 7 Day Timer is on and a schedule program is in an on cycle. Active LED is on Timer ON LED illuminated red 8 | Page ... -
Page 9: 7 Day Timer Overview Cont
7 7 Day Timer Overview cont. 7 Day Timer is on and a schedule program is in an off cycle. Active LED is off Timer ON LED is not illuminated Please refer to the AIRPHX 7 Day Timer User Guide included with the CID 75k for more information on the programming and operation of the 7 Day Timer or go to airphx.com/installation. 9 | Page ...
