IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR
USING YOUR EDGEWARE TV UNIT.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Please keep small parts out of reach of children
Always use on a level, even surface.
CARE & MAINTENANCE:
Assemble in the room of use
Assembly should be carried out with this item laying flat, not standing upright.
Assemble on a soft, clean surface to prevent damages.
To remove the printed numbers on the pieces, use the eraser provided
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Always lift the item with two people to reposition.
Keep any sharp objects away from the item.
ASSEMBLY INSTRUCTIONS

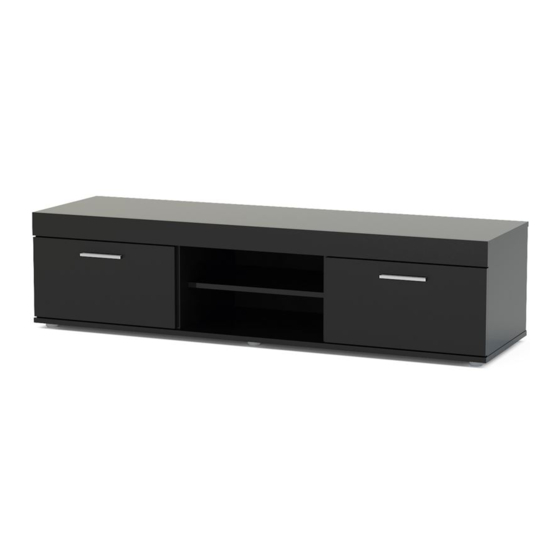

EDGEWARE TV UNIT
www.birlea.com
Vendor: S000139
1
of 8
Page
Advertisement
Table of Contents
Related Manuals for Birlea EDGTVUBLK
Summary of Contents for Birlea EDGTVUBLK
- Page 1 Periodically check all screws & fixings to ensure they are secure. DO NOT push the item as this will damage the base. Always lift the item with two people to reposition. Keep any sharp objects away from the item. www.birlea.com of 8 Page...
- Page 2 Vendor: S000139 Parts List Part Descripion Top Base Move Shelf Bottom Base Left Side Left Division Right Division Right Side Frame Left Door Right Door Backboard ** You will need a small mallet and a screwdriver for assembly. Page...
- Page 3 Vendor: S000139 Hardware List Part Descripion 8 x 30 mm Wooden Dowel 3,5 x 14 mm Screw 3,5 x 25 mm Screw 4,5 x 45 mm Screw Simple Minifix Screw Cam Lock Metal Bracket 46 mm Hinge Part 1 Hinge Part 2 10 x 10 mm Tack Plastic Foot Shelf Bracket...
- Page 4 Vendor: S000139 Step 1: Insert hardware parts A,L and E using small mallet and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach hardware part I to the left door (9) and right door (10) using hardware part B with a screwdriver (not provided).
- Page 5 Vendor: S000139 Step 4: Attach hardware part G to the frame (8) using hardware part B and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach the left side (4), left division (5), right division (6), right side (7) to the top base (1) using the hardware part F and a screwdriver (not provided) DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 6 Vendor: S000139 Step 6: Attach the hardare part K to the bottom base (3) using hardware part M and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Join the two sections together using hardware part D and a screwdriver (not provided).
- Page 7 Vendor: S000139 Step 9: Attach the backboard (11) using the hardware part I and a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Attach hardware part N to the left door (9) and right door (10) using hardware part C and a screwdriver (not provided), then attach the doors to the sides, than put the movel shelf (2).
- Page 8 Then attach hardware part B to the item with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product. 1°...
