Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on
our social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with
your order, please contact the retailer you purchased the item from. We will
work with the retailer to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop voucher
simply post a picture of your new product
on your preferred social channels tagging
Birlea Furniture and using the hashtag
#ShareYourStyle and #Birlea. One winner
will be selected at random each month.
To view our full terms and conditions please visit our website. www.birlea.com
www.birlea.com
Advertisement
Related Manuals for Birlea ENZO
Summary of Contents for Birlea ENZO
- Page 1 #ShareYourStyle and #Birlea. One winner Birlea product. will be selected at random each month. To view our full terms and conditions please visit our website. www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.
-
Page 3: Health And Safety

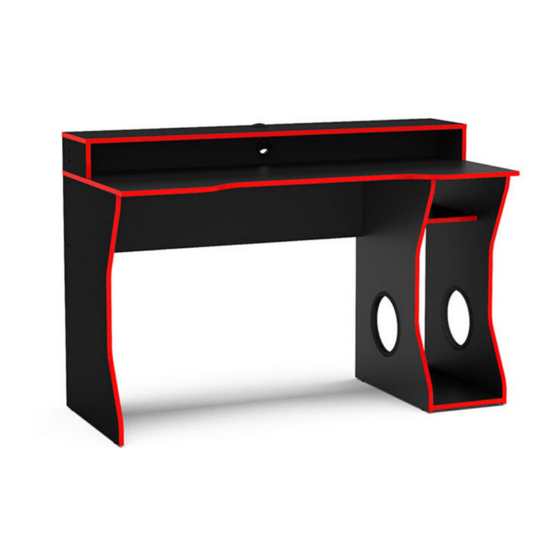

ASSEMBLY INSTRUCTIONS ENZO GAMING COMPUTER DESK IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR ENZO GAMING COMPUTER DESK PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damaged or worn. - Page 4 Vendor: S000139 Parts List Part Descripion Box Qty Shelf Bottom Base Lower Backboard Lower Left Side Lower Division Lower Right Side Top Base Upper Left Side Upper Right Side Top Backboard Page...
- Page 5 Vendor: S000139 Hardware List Descripion Part Smalll Plastic foot 4,0 x 40 mm Screw 8 x 30 mm Wooden Dowel 8 x 50 mm Wooden Dowel Structural Screw Allen Key Structural Screw Cover Simple Minifix Screw Cam Lock Bore patch adhesive 10 x 10 mm Tack 4,5 x 45 mm Screw Pass Wires...
- Page 6 Vendor: S000139 Step 1: Insert hardware parts E and F using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 7 Vendor: S000139 Step 4: Attach the hardware part J to the top base (15) and top (16) using the a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Insert hardware part E using small mallet (not provided).
- Page 8 Vendor: S000139 Step 6: Attach the upper left side (17) to the top backboard (19) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Join the upper right side (18) to the assembled section using hardware part G, H and I.
- Page 9 Vendor: S000139 Step 8: Join the top base (15) to the assembled section using hardware part L and a screwdriver. Insert the hardware part M to the upper left side (17) and the upper right side (18). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 9: Join the top (16) to the assembled section using hardware part O and a screwdriver (not provided).
- Page 10 Vendor: S000139 Step 10: Join the top (16) to the top backboard (19) using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 11: Attach the lower division (13) to the lower backboard (11) using hardware part G, H and I.
- Page 11 Vendor: S000139 Step 12: Join the shelf (03) and bottom base (04) to the lower division (13) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 13: Join the lower right side (14) to the shelf (03) and bottom base (04) using hardware part G, H and I.
- Page 12 Vendor: S000139 Step 14: Attach the lower left side (12) to the lower backboard (11) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 15: Join the top (16) to the lower left side (12), lower division (13) and lower right side (14) using hardware part L and a screwdriver (not provided).
- Page 13 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
