IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR
USING YOUR EDGEWARE 2 DOOR 2 DRAWER SIDEBOARD.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Please keep small parts out of reach of children
Always use on a level, even surface.
CARE & MAINTENANCE:
Assemble in the room of use
Assembly should be carried out with this item laying flat, not standing upright.
Assemble on a soft, clean surface to prevent damages.
To remove the printed numbers on the pieces, use the eraser provided
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Always lift the item with two people to reposition.
Keep any sharp objects away from the item.
ASSEMBLY INSTRUCTIONS

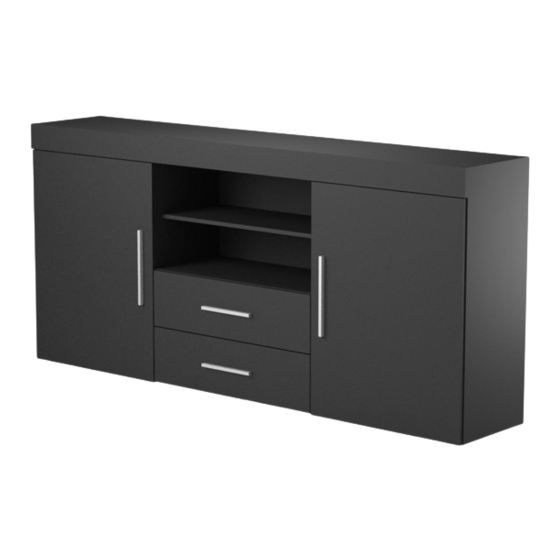

EDGEWARE 2 DOOR 2 DRAWER SIDEBOARD
www.birlea.com
Vendor: S000139
1
10
Page
of
Advertisement
Table of Contents
Related Manuals for Birlea EDG2SBBLK
Summary of Contents for Birlea EDG2SBBLK
- Page 1 Periodically check all screws & fixings to ensure they are secure. DO NOT push the item as this will damage the base. Always lift the item with two people to reposition. Keep any sharp objects away from the item. www.birlea.com Page...
- Page 2 Vendor: S000139 Hardware List Parts List Descripion Part Part Descripion Top Base 3,5 x 14 mm Screw Center Shelf 3,5 x 25 mm Screw Right/left Shelf 4,5 x 45 mm Screw Drawer Base 8 x 30 mm Wooden Dowel Simple Minifix Screw Bottom Base Left Side Cam Lock...
- Page 3 Vendor: S000139 Step 1: Insert hardware parts D using small mallet (not provided), then attach hardware part E using a screwdriver (not provided), in the left side of drawer (7) and right side of drawer use hardware N. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach hardware part K to the left side (6) and the right side (11) using the hardaware part A and a screwdriver (not provided), then attach hardware part L to the doors (13) using the hardware part A and a...
- Page 4 Vendor: S000139 Step 4: Attach hardware part J to the frame (12) using hardware part A and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach the left divison (9) and the right divison (10) to the drawer base (4) and the center shelf (2), to attach the drawer base (4) use the hardware parts O,P and U.
- Page 5 Vendor: S000139 Step 7: Attach the left division (6) and the right division (11) using the hardware parts O, P and U. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Attach the top base (1) using the hardware part F and a screwdriver (not provided).
- Page 6 Vendor: S000139 Step 9: Attach the hardware part I to the bottom base (5) using the hardware part H and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Join the two sections using hardware part C and a screwdriver (not provided).
- Page 7 Vendor: S000139 Step 11: Attach the frame (12) using the hardware parts A and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 12: Attach the side backboard (17), center top backboard (18) and center bottom backboard (19), using the hardware parts G, A1 and a small mallet (not provided).
- Page 8 Step 13: Attach left side of drawers (7) and the right side of drawers (8) to the rear of drawesr (15) and the bottom of drawers (16) using the hardware part C and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 14: Attach the front of drawer (14) using the hardware parts F,Z and a screwdriver (not provided).
-
Page 9: Vertical Adjustment
Step 16: Attach the hardware part Q to the dors (13) using hardware part B and a screwdriver (not provided), then attach the doors (13) to the sides. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Depth Adjustment Vertical Adjustment Horizontal Adjustment... -
Page 10: Additional Information
Then attach hardware part A to the item with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product. 1°...
