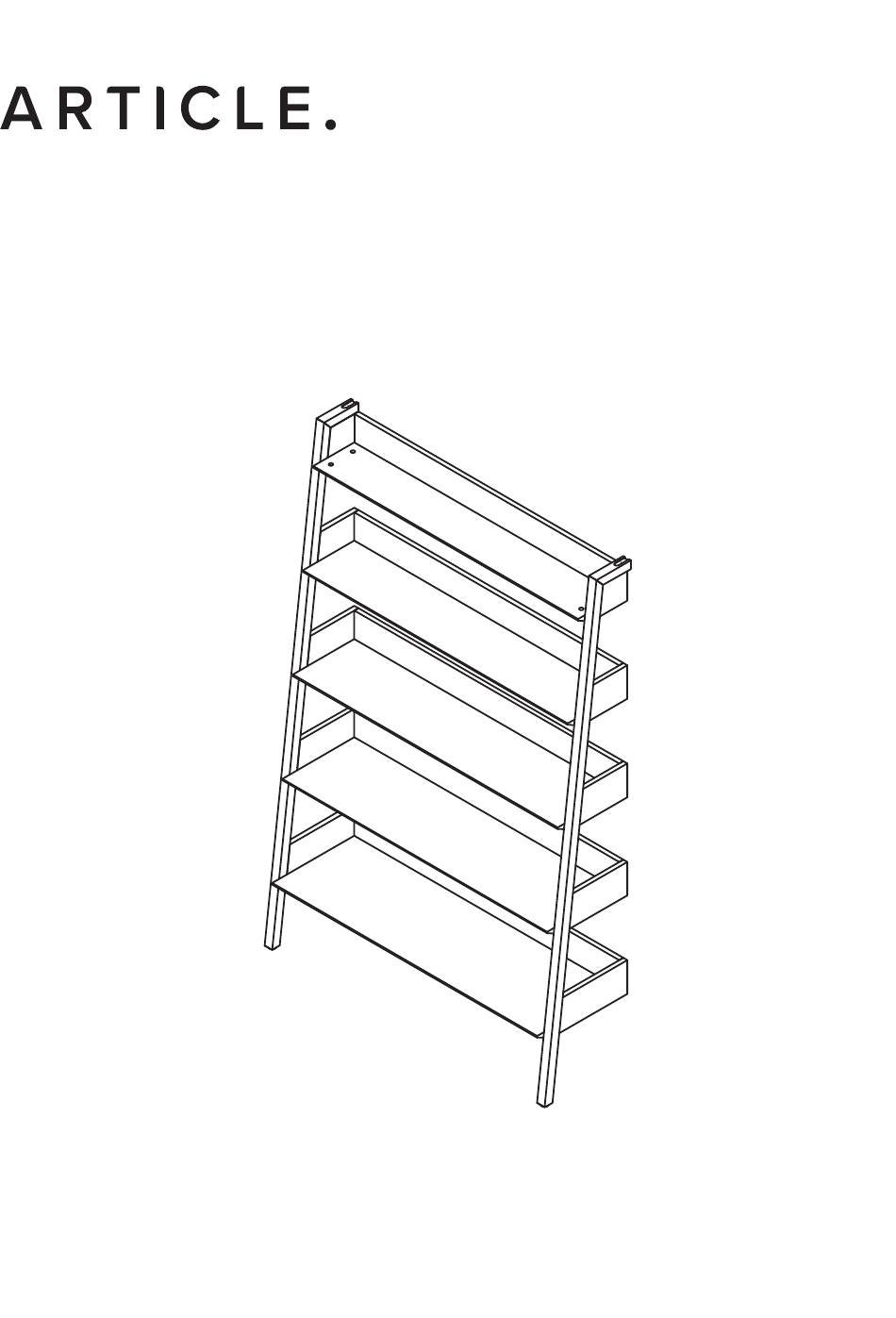

- Page 1 VERSION 1.1 Assembly Instructions FANTOL Wide Bookcase...
- Page 2 DIFFICULTY surface such as a carpet to prevent scratches. If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. ANTI-TIP REQUIRED TOOL...
- Page 3 Page 3 of 11 FANTOL Wide Bookcase ASSEMBLED UNIT...
- Page 4 Page 4 of 11 FANTOL Wide Bookcase × 40...
- Page 5 Page 5 of 11 FANTOL Wide Bookcase Insert 2 wood dowels Insert 3 wood dowels for top 2 shelves. for bottom 3 shelves. × 4 × 9...
- Page 6 Page 6 of 11 FANTOL Wide Bookcase Insert cam lock nuts (J) and turn with allen key (K) to secure. Ensure cam lock nuts are also secured on the backs of each shelf. Cam lock nut starting position : arrow pointing downwards, towards screw head.
- Page 7 Page 7 of 11 FANTOL Wide Bookcase Insert 3 wood dowels (I) Insert 2 wood dowels into top 2 shelves (C/D). into bottom 3 shelves (E/F/G). × 4 × 9...
- Page 8 Page 8 of 11 FANTOL Wide Bookcase Insert cam lock nuts (J) and turn with allen key (K) to secure. Ensure cam lock nuts are also secured on the backs of each shelf. × 20...
- Page 9 Page 9 of 11 FANTOL Wide Bookcase ANTI-TIP RESTRAINT INSTALLATION WARNING! Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: 20 min • Install tip-over restraint provided. • Do not set heavy objects on top of this product, TIME # OF PEOPLE DIFFICULTY...
- Page 10 Page 10 of 11 FANTOL Wide Bookcase Place unit in desired location and mark on wall where holes should be drilled. × 3 Hardware (M/N) to attach brackets to wall is designed for drywall. To attach this unit to another type of wall, consult with your local hardware store. Drill holes into drywall, insert wall plugs (M), and attach brackets to wall with screws (N).
- Page 11 Page 11 of 11 FANTOL Wide Bookcase Attach brackets to top shelf from above. × 2...
