ETI SOLID GSX Quick Start Manual

Power needs control
4XP160
IP 44
Length of the gasket
(Długość uszczelki)
Type L [m]
4XP160 2-3 2,2
4XP160 2-4 2,5
4XP160 2-5 2,8
4XP160 2-6 3,1
4XP160 2-7 3,4
4XP160 3-3 2,7
4XP160 3-4 3,0
4XP160 3-5 3,3
4XP160 3-6 3,6
4XP160 3-7 3,9
Seal up
(Uszczelnić)
A13.06 981000485
SOLID GSX Enclosure system
7
6
4
3
6
Gasket
(Uszczelka)
4/4
Power needs control
4XP160

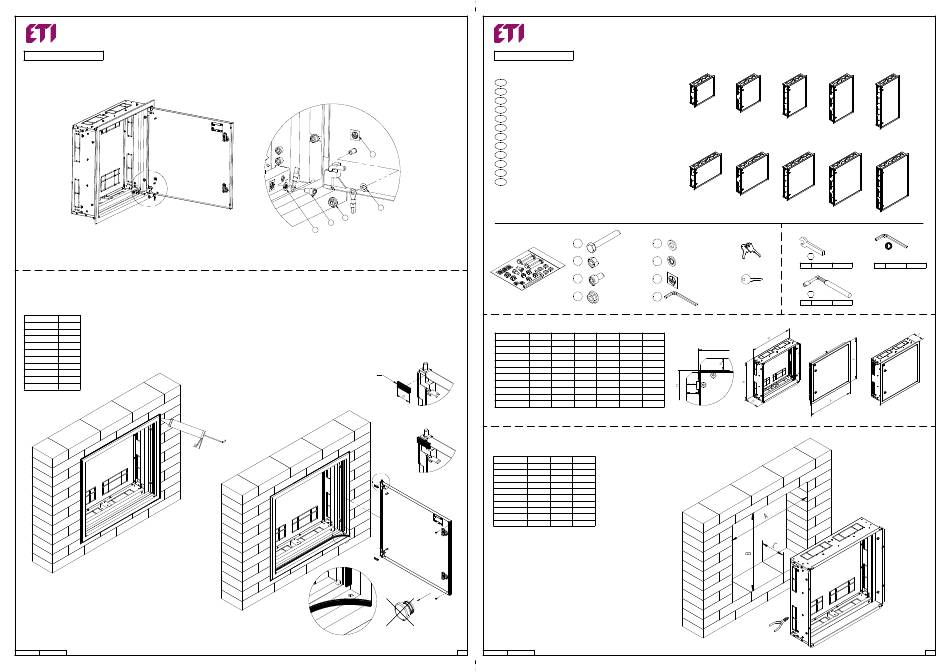

Mounting instructions
GB
Montage anleitung
DE
Navodilo za montaźo
SI
PL Instrukcje montażu
HR Upute za montaźu
CZ Montaźni návod
SK Navod na montaź
HU Szerelesi utmutato
LT Montavimo instrukcija
RU Инструкция за монтаж
LV Montāžas instrukcija
Paigaldusjuhend
EST
1 5
x 4
2 6
x 4
3 7
x 2
4 x 2 8
Type X [mm] Y [mm] Z [mm] X1 [mm] Y1 [mm] Z1 [mm]
4XP160 2-3 608 558 163 564 514 161
4XP160 2-4 608 708 163 564 664 161
4XP160 2-5 608 858 163 564 814 161
4XP160 2-6 608 1008 163 564 964 161
4XP160 2-7 608 1158 163 564 1114 161
4XP160 3-3 858 558 163 814 514 161
4XP160 3-4 858 708 163 814 664 161
4XP160 3-5 858 858 163 814 814 161
4XP160 3-6 858 1008 163 814 964 161
4XP160 3-7 858 1158 163 814 1114 161
Suggested dimensions of the hole in the wall
(Sugerowane wymiary wnęki w ścianie)
Type A [mm] B [mm] C [mm]
4XP160 2-3 581 525 170
4XP160 2-4 581 675 170
4XP160 2-5 581 825 170
4XP160 2-6 581 975 170
4XP160 2-7 581 1125 170
4XP160 3-3 831 525 170
4XP160 3-4 831 675 170
4XP160 3-5 831 825 170
4XP160 3-6 831 975 170
4XP160 3-7 831 1125 170
A13.06 981000485
SOLID GSX Enclosure system
4XP160 2-3 4XP160 2-4 4XP160 2-5 4XP160 2-6
4XP160 3-3 4XP160 3-4 4XP160 3-5 4XP160 3-6
x 4
10
x 2
1 AS-H 6x40 3,6-6,0 Nm
x 3
KEY 1333
10
x 1
4 AN-FSH 6 5 Nm
X1
15
18
4XP160 2-7
4XP160 3-7
Hex5
(Klucz imbusowy 5)
3 AS-SH 6x10 3,6-6,0 Nm
1/4
