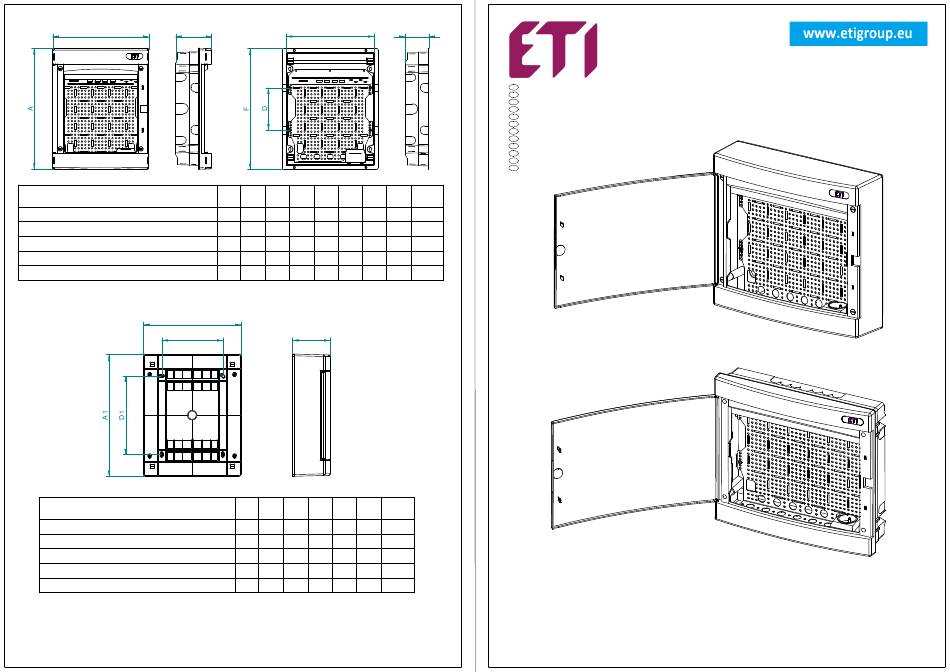

ETI ECM MEDIA Series Mounting Instructions

B C
Type of MEDIA enclosure
ECM24PO MEDIA / ECM24PO MEDIA/EMPTY
ECM36PO MEDIA / ECM36PO MEDIA/EMPTY
ECM 2X18PO MEDIA / ECM 2X18PO MEDIA/EMPTY
ECM 3X18PO MEDIA / ECM 3X18PO MEDIA/EMPTY
ECM 3X18PO MEDIA-MOD / ECM 3X18PO MEDIA-MOD/EMPTY
B1
E1
Type of MEDIA enclosure
ECT24PO MEDIA / ECT24PO MEDIA/EMPTY
ECT36PO MEDIA / ECT36PO MEDIA/EMPTY
ECT 2X18PO MEDIA / ECT 2X18PO MEDIA/EMPTY
ECT 3X18PO MEDIA / ECT 3X18PO MEDIA/EMPTY
ECT 3X18PO MEDIA-MOD / ECT 3X18PO MEDIA-MOD/EMPTY
For indoor locations (≤ 50% RH at max. +40°C or for example 90% RH at +20°C)
Temperature range: -25°C ... +60°C, Rating Voltage AC 400V; IP40; Class II; IK08
According to: IEC 60670; IEC 62208
E
A B C D E F G
Pde
[mm] [mm] [mm] [mm] [mm] [mm] [mm]
357 283 106 125 273 336 68 >30W
482 283 106 125 273 462 68 >30W
357 392 106 125 382 336 68 >30W
522 392 106 125 382 502 68 >30W
522 392 106 125 382 502 68 >30W
C1
A1 B1 C1 D1 E1 Static
Pde
[mm] [mm] [mm] [mm] [mm] load
361 287 112 232 180 >30W 1560 g
485 287 112 357 180 >30W 1560 g
361 396 112 232 289 >30W 2340 g
526 396 112 357 289 >30W 2340 g
526 396 112 357 289 >30W 2340 g
G
GB Mounting instructions
DE Montage anleitung
Navodilo za montaźo
SI
PL Instrukcje montażu
HR Upute za montaźu
Montaźni návod
CZ
SK Navod na montaź
HU Szerelesi utmutato
Montavimo instrukcija
LT
RU Инструкция за монтаж
LV Montāžas instrukcija
Paigaldusjuhend
EST
Static
load
1560 g
1560 g
2340 g
2340 g
2340 g
