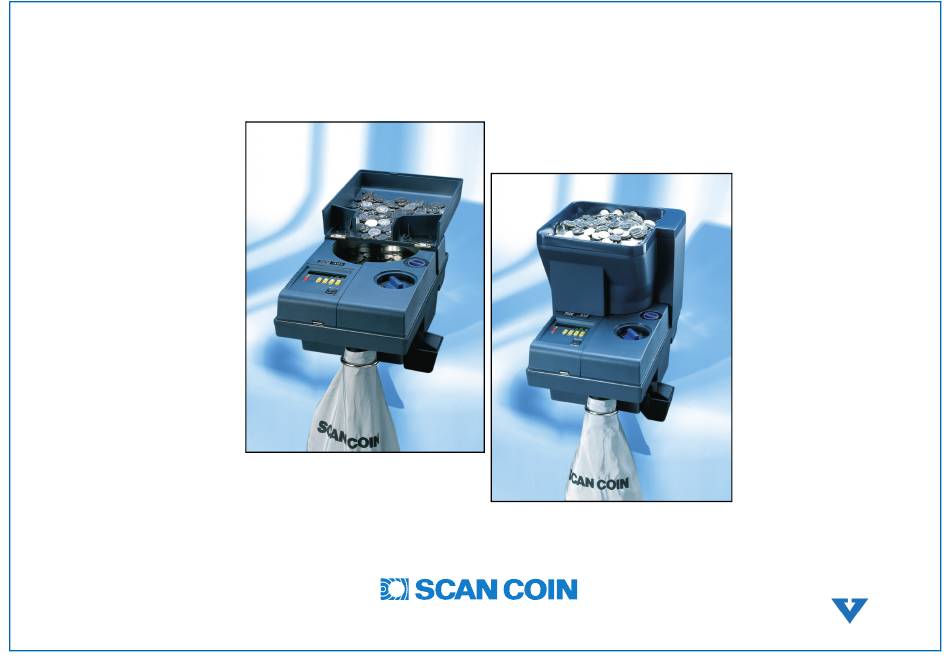

- Page 1 SC 303/SC 313 Coin Counters User’s Guide 013264-101_rev-05 © SCAN COIN AB 2011...
-
Page 2: Table Of Contents
Continuous counting ....5 Batch counting ....5 SC 303/313 – 050062-101_rev- 05... -
Page 3: General Information
Responsibility The supplier of the equipment accepts no responsibility for injury or SCAN COIN AB reserves the right to revise and improve its products as it damage to personnel or equipment, if the equipment is altered in any way sees fit. This publication describes this product at the time of publication or used in a manner for which it was not intended at the time of delivery. -
Page 4: Safety Precautions
Do not touch the components inside the machine while it is running. WARNING! Risk of tipping! During bagging, do not exceed the load stated on the label (see “Warning Labels” on page >>> SC 303/313 – 050062-101_rev- 05... -
Page 5: Introduction
Introduction Machine Part Terminology The SC 303/313 is a compact desktop, universal coin counting machine. The machine is light and easy to operate. The coins are loaded into a coin tray and after counting appear at a coin outlet. There is a separate outlet for rejected coins. -
Page 6: Control Panel
Control Panel Modes of Operation The SC 303/313 has two modes of operation, continuous counting and Note! batch counting. The key must be kept pressed for a few seconds before the function gets activated. Continuous counting The machine will count the coins and the display will continuously be updated with the number of coins counted. -
Page 7: Installation
7 Supply voltage 2 Machine No. 8 Frequency 3 Serial No. 9 Current consumption 4 RoHS compliant 10 Fuse 5 CE-symbol 11 Year and place of manufacture 6 WEEE-symbol* *) See “Environmental Compliance” on page SC 303/313 – 050062-101_rev- 05... -
Page 8: Operation
>>> Press MOTOR ON/OFF The machine will start counting and will stop when the batch stop is reached. The LED above flashes when a full batch is reached. >>> SC 303/313 – 050062-101_rev- 05... -
Page 9: Setting A Temporary Batch Stop
Open the right cover and manually turn the disc to get the coin rejected when it passes over the reject chute. Reset the coin diameter and thickness knobs to their desired settings and put any valid coins into the coin tray. Press to resume counting. MOTOR ON/OFF SC 303/313 – 050062-101_rev- 05... -
Page 10: By-Passing Automatic Stop
• Press to reset the batch-register and recount the batch, see “Batch Counting” on page 7, step b. Note! If the right hand cover is removed from the machine, a function switch stops the motor. SC 303/313 – 050062-101_rev- 05... -
Page 11: Maintenance
Pull the lever (3) to remove the coin access block (2). Lift Press Clean the coin track with a stiff brush. Replace the coin access block and the outfeed belt. Replace the right hand cover. 1 Outfeed belt 2 Coin access block 3 Lever SC 303/313 – 050062-101_rev- 05... -
Page 12: Technical Data
Noise level (during operation): SC 303........86 dB (A) SC 313 .
