DATA SHEET | MSDS | OPERATIONAL MANUAL
Pumps, Pumping Systems and Ancillaries

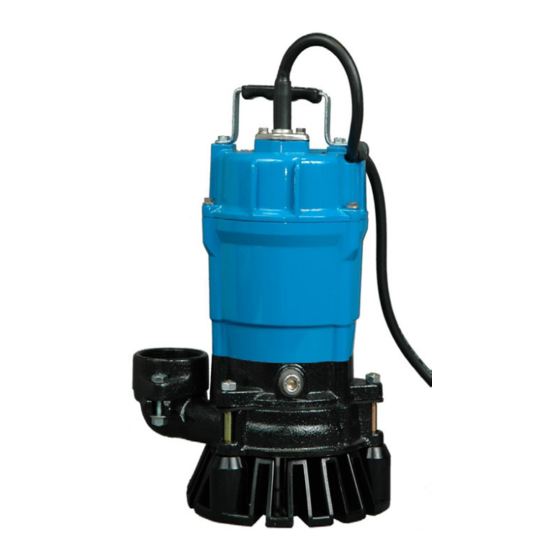

NEWTON NP400
Clean Water Pump
Rev 2.0 - 11 October 2017
INTRODUCTION
Congratulations on your purchase of this pump product. All Newton pump products are developed with the help of
the latest technologies and manufactured with the most advanced electrical/motor parts.
Please check the following points upon receipt of your pump:
1. The pump is the model that you ordered.
2. Has any damage been caused during delivery?
3. Are the pipe/valve ancillary parts you asked for included as requested?
Please take the time to read these instructions carefully before using the appliance.
SPECIFICATIONS
Output
Discharge
(W)
BSP
400
2"
Check the nameplate for your pump's specification as the table above. Be careful not to exceed the given
specifications in the use of your pump.
LIMITATIONS
The Newton NP400 is suitable to pump clean water with suspended soft
solids of up to 7 mm. The pump can be used for both permanent and
temporary installation. Do not use for the pumping of effluent or sewage.
Do not let the pump run dry. The pump cannot be used for sea water and
inflammable, corrosive, explosive or dangerous liquids.
DANGER: Keep the equipment out of the reach of children
DANGER: Failure to follow the directions given could
cause serious risk to individuals or property
WARNING: Failure to follow an instruction
may damage the pump and/or the system
INSTALLATION - IMPORTANT
•
Pump(s) must receive power directly from a fused
switched spur that is in line of site of the pumping
station. Do not connect the pump to extension
cables
•
If possible, each pump should have its own
connection to the consumer board and be protected
by a 30 mA RCD
•
Use the correct size fuse for the pump as confirmed
on page 2
T: +44 (0)1732 360 095 W: www.newtonwaterproofing.co.uk E: tech@newtonwaterproofing.co.uk
Rated
Head (M)
Flow (LPM)
4
160
© Newton Waterproofing Systems
(a trading name of John Newton & Co. Ltd.)
Newton House, 17-20 Sovereign Way, Tonbridge, Kent, TN9 1RH
Maximum
Head (M)
Flow (LPM)
12
204
14
12
10
8
6
4
2
0
0
25
50
Flow Rate (litres/minute)
PRODUCT CODE - P2 & P3
Dimension
Weight
LxWxH (mm)
kg
241x185x328
11.3
75
100
125
150
175 200 225
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Newton Waterproofing NP400
Summary of Contents for Newton Waterproofing NP400
- Page 1 LIMITATIONS The Newton NP400 is suitable to pump clean water with suspended soft solids of up to 7 mm. The pump can be used for both permanent and temporary installation. Do not use for the pumping of effluent or sewage.
- Page 2 SUPPLIED FITTINGS & PIPE INSTALLATION The Newton NP400 is supplied with: 1 x 2” BSP threaded male to 1 1/2” BSP threaded female reducing bush; 1 x 1 1/2” BSP threaded male to 1 1/2” BSP threaded male check-valve and 1 x 1 1/2” BSP threaded female to 50 mm female socket adapter, ready for 50 mm pressure pipe.
- Page 3 Possible defective vertical switch. Speak with Newton Waterproofing with a view to replacing with vertical switch. Float may be set too low – pump has removed as much water as it can but cannot switch off.
- Page 4 NEWTON NP400 Clean Water Pump STRUCTURE & PARTS LIST © Newton Waterproofing Systems (a trading name of John Newton & Co. Ltd.) Newton House, 17-20 Sovereign Way, Tonbridge, Kent, TN9 1RH T: +44 (0)1732 360 095 W: www.newtonwaterproofing.co.uk E: tech@newtonwaterproofing.co.uk...
- Page 5 • Please do not return goods to Newton Waterproofing Systems unless accompanied by proof of purchase and a Newton Returns Form. The form should be correctly and fully completed ©...
- Page 6 Head Office by contacting 01732 360 095. Please see our Terms & Conditions of Sale for further information. LABOUR & COSTS: Newton Waterproofing Systems shall in no event be liable for the cost of field labour or other charges incurred by the customer in removing and/or re-affixing any Newton pump product, parts or components.
