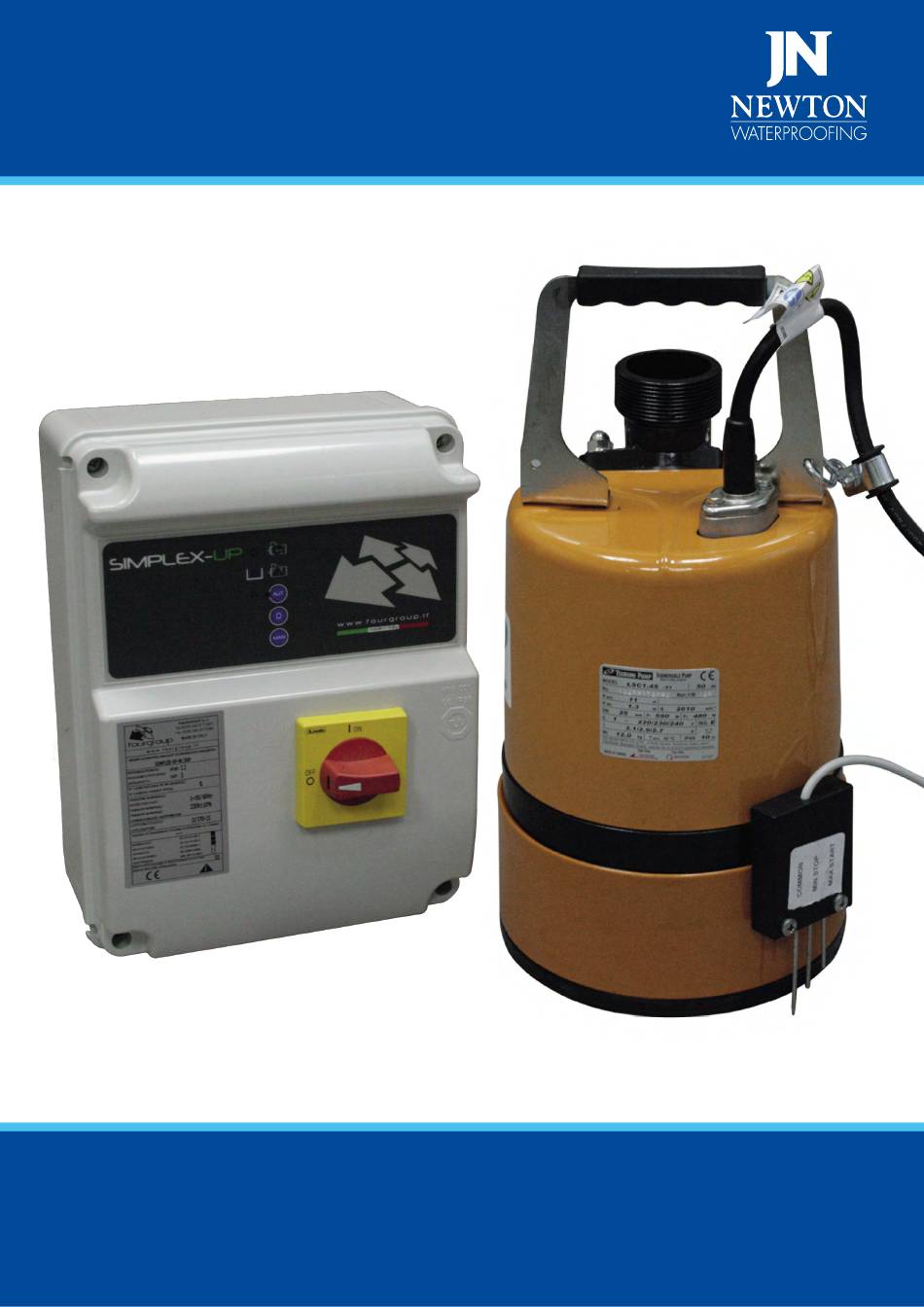

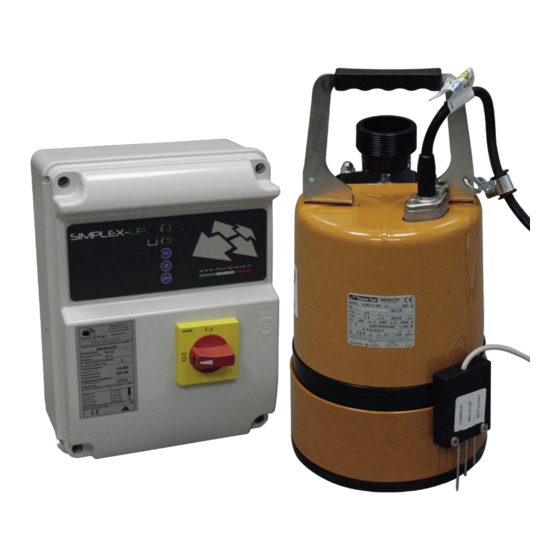

- Page 1 DATA SHEET | SDS | OPERATIONAL MANUAL ® Basement Pumping Systems and Ancillaries NEWTON NP400LLPS (SP1) Low Level Pumping System Operational Manual Rev 5.2 - 16 April 2019 © Newton Waterproofing Systems...
- Page 2 INFORMATION This is a dual purpose document that is designed to be the reference manual for the installation of the Pumping System and then should be handed over to the occupier as the user manual and service record. Panel Serial Number Date Installed Installation Company Installation Engineer...
- Page 3 Waterproofing Systems reserve the right to change the product specification at any time. IMPORTANT - This manual has been produced for the specific use of the Newton NP400LLPS pumping system and should be the main reference document for the installation and safe use of the panel. Please also familiarise yourself with the manual included in the packaging, supplied by the manufacturer.
- Page 4 * There is only one 230 VAC power supply. Connection is either directly from mains AC or from Inverter AC. ENCLOSURE The Newton NP400LLPS panel is housed in 225 mm wide x 145 mm deep x 315 mm high ABS plastic enclosure with 6 knockouts for fitting plastic cable glands, ready for the following cables: Main power, 1 x Probe Set, 1 x pumps and 1 x Dialer or BMS.
- Page 5 PANEL HIGHLIGHTS & CONNECTIONS PANEL HIGHLIGHTS • ABS enclosure rated at IP55 • Connection to external sounders or Building Management Systems (BMS) • Connection to Newton Dialer for warnings received by text or voice message • Pump motors protected by fuses •...
- Page 6 CONNECTION TO GRID MAINS ELECTRICAL CONNECTION OF CONTROL PANEL INSTALLATION WARNINGS: THIS CONTROL PANEL MUST ONLY BE INSTALLED BY TRAINED ENGINEERS. BEFORE COMMENCING INSTALLATION, ISOLATE YOUR MAINS ELECTRIC SUPPLY. This product should be installed in accordance with the relevant sections of the building regulations code and the current edition of the IEE Wiring Regulations (BS 7671: Requirements for electrical installations) and appropriate statutory regulations.
- Page 7 CONNECTION DIAGRAM CONNECTION WIRING DIAGRAM ALARM (Option) Link terminal 3 to terminal 4 Link terminal 5 to terminal 6 PROBE SET (Low-voltage) Input 1 NEWTON DIALER (Option) PUMP MAINS OUTPUT 230V AC 2 T1 2 T1 From Grid SWITCH 4 T2 4 T2 Mains 6 T3...
- Page 8 WHEN PUSHED, THE AUTOMATIC MODE IS ACTIVATED WHICH IS INDICATED BY THE GREEN LED; THE BOARD IS READY TO RECEIVE SIGNALS FROM THE FLOAT SWITCHES OR PRESSURE SWITCHES Newton Waterproofing Systems Is A Trading Name Of John Newton & Company Ltd. Newton House, 17-20 Sovereign Way...
