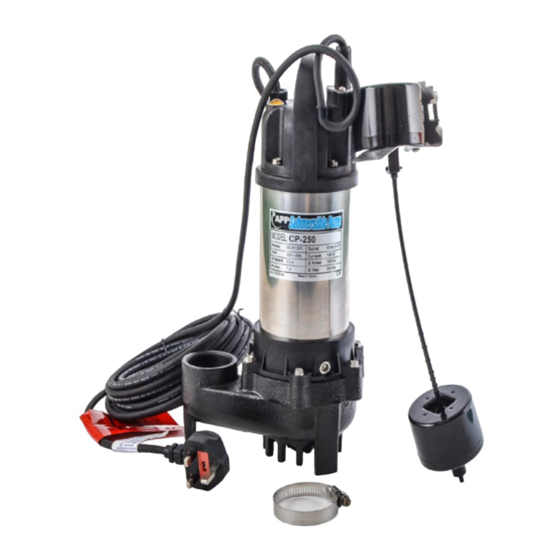

NEWTON CP250, CP400 & CP750
A Range of High Quality Clean Water Pumps
Rev 2.1 - 16 June 2016

INTRODUCTION

Congratulations on your purchase of this pump product. All Newton pump products are developed with the help of
the latest technologies and manufactured with the most advanced electrical/motor parts.
Please check the following points upon receipt of your pump:
1. The pump is the model that you ordered. Please check the name plate.
2. Has any damage been caused during delivery?
3. Are the pipe/valve ancillary parts you requested included?
Please take the time to read these instructions carefully before using the pump.

SPECIFICATIONS

Output Discharge
Model
(W) BSP
CP150 150 1 1/2"
CP250 250 1 1/2"
CP400 400 2"
CP750 750 3"
Check the nameplate for your pump's specification in the table above. Be careful not to exceed the given
specifications in the use of your pump.

LIMITATIONS

The Newton CP series pumps are suitable to pump clean water with
suspended soft solids of between 5-15mm, depending on model. Newton CP
Pumps can be used for both permanent and temporary installation. Newton
CP pumps are not suitable for the pumping of effluent or sewage. Do not let
the pump run dry. The pump cannot be used for sea water and inflammable,
corrosive, explosive or dangerous liquids.
DANGER: Keep the equipment out of the reach of children
DANGER: Failure to follow the directions given could cause
serious risk to individuals or property
WARNING: Failure to follow an instruction may damage the
pump and/or the system
Installation - IMPORTANT
• Pump(s) must receive power directly from a fused switched spur that is in
line of site of the pumping station. Do not connect the pump to extension
cables
• If possible, each pump should have its own connection to the consumer
board and be protected by a 30 mA RCD
• Use the correct size fuse for the pump as confirmed on page 2
T: +44 (0)1732 360 095 W: www.newtonwaterproofing.co.uk E: info@newtonwaterproofing.co.uk
Rated
Head (M) Flow (LPM)
4 80
4 130
4 215
4 295
© Newton Waterproofing Systems
(a trading name of John Newton & Co. Ltd.)
Newton House, 17-19 Sovereign Way, Tonbridge, Kent, TN9 1RH
PRODUCT CODE - P31, P32 & P33
Maximum
Head (M) Flow (LPM)
6 160
8 200
10 280
11 380
12
11
10
9
8
7
6
5
4
3
2 0
40 80 120 160 200 240 280 320 360 400 440
Flow Rate
(litres/minute)
Dimension Weight
LxWxH (mm) kg
190x140x360 5.5
190x140x360 11
215x155x370 12
260x160x430 15
CP150 CP250 CP400 CP750
