Summary of Contents for dentalfarm MICRA Evoluzione

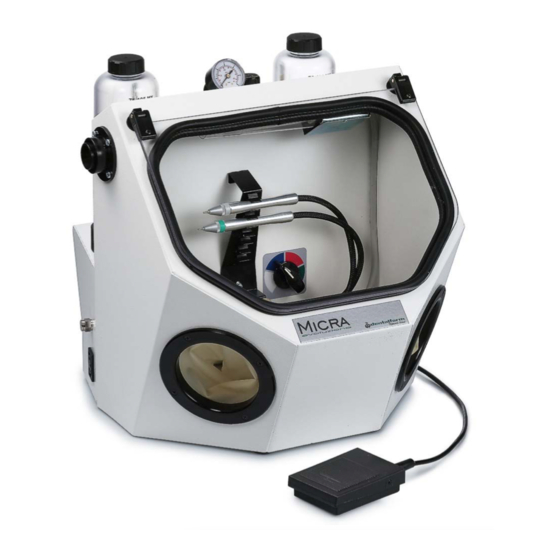

- Page 1 MICROBLASTER MICRA Evoluzione USER AND MAINTENANCE MANUAL...
- Page 2 1. DESCRIPTION MICRA Evoluzione is a sandblasting unit designed for microblasting operations in the Dental and Jewellery field. The main features of the machine are: the ergonomic layout of the working chamber, the safety of use, and the trouble-free structure of the mechanical installation. MICRA Evoluzione is equipped with useful accessories and ensures a fast, practical and accurate work.
-
Page 3: Installation Instructions
3. INSTALLATION INSTRUCTIONS Installation of this machine is quite easy but must be carried out paying utmost attention in order to avoid any mistake which may originate ATTENTION problems, inconveniences and even damages during operation. 1. Place the machine on a proper workbench, which must be stable and strong enough to hold the machine safely. - Page 4 5. Adjust the air flow to avoid the machine being under pressure. Slightly turn the mobile section of the adjusting valve when the suction system is on and stop when you notice that the gloves are still slightly inflated. 6. Microblasting tanks (EASY tanks) are identical in layout, but can feature different components (calibrated metering system) and external nozzles which vary according to the abrasive mixture they can supply;...
- Page 5 4. INSTRUCTIONS FOR USE • Press the switch to illuminate the working chamber and feed the operating controls. May we remind that the sandblasting process will start only provided the suction system is operating – as a consequence, the filtering ATTENTION system MUST always be installed and OPERATED BEFORE you start to work.
-
Page 6: Maintenance
5. MAINTENANCE Many of the components of any sandblasting machine are subject to wear: this is caused by the circulation of abrasive media; the instructions for a careful maintenance of the machine as well as the operations to replace the damaged or worn out parts are specified here below. -
Page 7: Troubleshooting
Replacement of tank internal components Should it be necessary to replace the tank internal components like joints, air injectors, abrasive outlet pipe, please contact our Technical Service. Removal of a microblasting tank for repair purposes The new tank units have been studied to facilitate your task during installation and removal. - Page 8 Problem: NO AIR IS COMING OUT Possible cause Remedy Bad pneumatic connection Check connection to the compressor. Internal pipes are clogged Check connections and condition of pipes up to their end (nozzles). Air filter is clogged Check and disassemble, if needed, the moisture collection glass and replace the internal filtering element.
- Page 9 The 5my filter is clogged, unscrew the inspection cap and clean it. The solenoid valve is dirty: get in touch with Dentalfarm Technical Dept. Problem: ABRASIVE TANK IS NOT UNDER PRESSURE Possible cause Remedy Joints are not perfectly airtight Check whether cap has been correctly tightened.
- Page 10 7. EXPLODED DRAWING AND SPARE PART LIST MICRA EVO table 1 POS. CODE DESCRIPTION 1000534 COMPLETE LED LIGHTING SYSTEM 1072037 LIGHTING SYSTEM BASE 1072040 ELECTRONIC BALLAST 1072041 42 LED CIRCUIT 1072038 LIGHTING SYSTEM COVER 1069010 PVC WASHER FOR HINGE 1054019A6 HINGE FIXED PART HOLE 6mm RWA007 SUCTION HOSE...
- Page 12 EXPLODED DRAWING AND SPARE PART LIST MICRA EVO table 2 POS. CODE DESCRIPTION 100072N COMPLETE EASY TANK 1073003 TANK SUPPORT RUBBER FOOT H=12 NVG048 NES030 3-WAY SOLENOID VALVE-220v 1073005 REAR LOCK MICRA NVP036 PLASTIC CAP D.=27 NEA047 FEMALE PLUG NPR223 MALE PIPE-FITTING 1/8 NVT165 FEMALE CAP G1...
-
Page 14: Wiring Diagram
8. WIRING DIAGRAM DESCRIPTION S IN PLUG AND FUSEHOLDER UNIT MAIN SWITCH ELECTRONIC BALLAST LED CIRCUIT 3-WAY-SOLENOID VALVE ELECTRIC FOOT CONTROL P OUT FLUSH-MOUNTED SOCKET for DUST EXTRACTOR... -
Page 15: Pneumatic Circuit
9. PNEUMATIC CIRCUIT DESCRIPTION AIR FILTER PRESSURE REDUCER PRESSURE GAUGE 3-WAY-SOLENOID VALVE – MANUAL BLASTING SELECTOR SWITCH 5 MY FILTER MICROBLASTING TANK MICROPROJECTOR AIR BLOWER... -
Page 16: Technical Data
2 x ∅ 0,8 mm tungsten carbide nozzles Standard nozzles Abrasive grainsize min - max mesh 270 (50µ) – mesh 60 (250µ) DENTALFARM s.r.l. Via Susa, 9/a - 10138 TORINO - ITALY TECHNICAL & SALES SERVICE - (+39) 011/4346588 AFTER-SALE SERVICE - 011/4346632 FAX 011/4346366 E-mail: info@dentalfarm.it...
