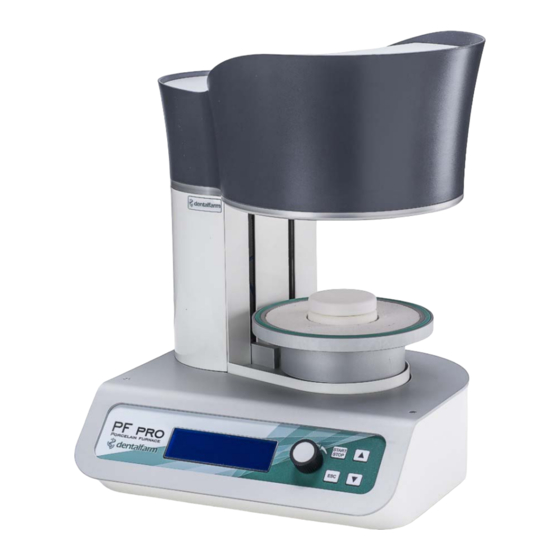

- Page 1 Porcelain Furnace PF PRO INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
INDEX GENERAL INFORMATION Page 3 Purpose of the manual Identification of the manifacturer Technical informations Safety precautions Technical data Elimination and waste disposal HANDLING AND INSTALLING Packaging and unpacking Handling and moving the machine Installation instructions INSTRUCTIONS FOR USE Panel - Operating controls description Muffle opening and closing First steps Working Cycle... -
Page 3: General Information
The machine is identified by a label as shown in Pic. 1. 1.3 - Technical information The PF Pro furnace has been designed and manufactured to fire ceramic products and to carry out thermal treatments on metals for dental use and laboratories. Both the firing and heating furnace cycles are managed by a microprocessor electronic control. -
Page 4: Technical Data
1.5 - Technical Data Dimensions W x D x H mm 390 x 440 x 490 Weight Kg 30 mm ∅90 x 55 H Muffle dimensions Power Supply 220 - 230 V AC Resistances Power 1050 W Pump Power (Max) 500 W Fuses Max Temperature... -
Page 5: Instructions For Use
3.2 - Muffle opening and closing (Pic. 4) Pic. 4 In the PF Pro, the opening and closing of the muffle are performed through upwards and downwards movement of the plate (Pic. 4 B). From the above pictures you can see the following positions: A (closed furnace), C (furnace completely open). -
Page 6: First Steps
After having turned the furnace on by means of the general switch located on the back of the device, the plate will go down till position C (Pic. 4) while the heading DENTALFARM will appear on the display. Push EN and the following screen will appear (Pic. 5). From now on, this screen will be called MAIN MENU. -
Page 7: Programs
3.5 - Programs The furnace PF Pro can store up to 100 programs (or cycles): 79 are programs for complete firing cycles for tradictional ceramics and 20 are suited for CAD/CAM lithium disilicate. The program 0 is a test cycle which should not be used for firing. -
Page 8: B Change A Program
Rotate EN to modify it. Push EN twice to switch again to F2. Rotate EN to move to F3 and proceed like this until the last function F15. You can go back or skip the functions which don’t need to be modified. After having set the complete program, push ESC and the following screen will appear: Pic. - Page 9 From this position you can view the program and, if you want, you can also change it. Once the program has been chosen, push ENTER: in this way you will access the display shown in Pic. 8. As described in 3.5A, you can see the program and even change it. At the end, by pushing ESC, you move to the save function display shown in Pic.
-
Page 10: Interruption Of A Program In Progress - Stop
4 - CRYSTALLIZATION OF CAD/CAM LITHIUM DISILICATE PF Pro can treat CAD/CAM milled lithium disilicate. The corresponding cycles are included between position 80 and 99. These cycles are characterized by a high number of editable parameters (instead of only 15 parameters, here 23 parameters are present). -
Page 11: Preferences
B – Manual Calibration: it is useful when the dental technician has to perform small changes depending on the verification of the ceramic after firing it. It is clear that each furnace must be customised according to the user and therefore it is possible to introduce small manual changes as for the furnace calibration: To modify manually the calibration please follow the hereafter instructions: enter the Calibration menu select the function OFFSET by rotating EN and then press ENTER... -
Page 12: Impostazioni Macchina" Menu
In order to enter the first menu press simultaneously and keep pressed buttons 5 and 6 for at least 2 seconds shown in Pic. 3 (ARROW UP and ARROW DOWN): the following screen will appear: code: 0 (another number than 0 could appear). Enter the code 1234 as follows: -rotate the Encoder EN and change the number visualised until number 1 is shown. -
Page 13: Menu Test
Pic. 17 CUR Li UP : this parameter is proportional to the max torque the engine can use for the lifting of the plate. Its default value is 850 and it is recommended not to change it. CUR Li DO : this parameter is proportional to the max torque the engine can use for the lowering of the plate. -
Page 14: Recommendations For Use
This menu is used for the following tests on the furnace: Pump performance and vacuum-tightness. By choosing Air Out=ON and Vacuum=ON (after of course having closed the muffle) you turn On the pump and you check what level of vacuum is able to produce. -
Page 15: Error Messages
8.3 - Error messages When an error intervenes, the furnace emits an intermittent sound signal and on the main display the heading “Problem” followed by a number will appear. The numbers correspond to the following inconveniences: Problem Description Reading / writing problem of the EEPROM. The electronic card doesn’t work! Contact the manufacturer. -
Page 16: Exploded Drawing And Spare-Part List
9 - EXPLODED DRAWING AND SPARE PART LIST CODE DESCRIPTION 4051004 Muffle compartment cover 4051144 Grid on fan 4051143 Fan 4051100 Muffle compartment shell 4051013 Side panel 4051003 Assembly compartment cover 4050101 Complete muffle unit Sliding plate unit Plate movement unit Assembly compartment unit... - Page 17 CODE DESCRIPTION Resistance connection point 4051030 Insulating washer 4051031 Brass joint 4051112 Vacuum pipe-fitting 4051032 Resistance connection 4051033 Insulating base 4051113 OR joint on muffle 4051006 Aluminum plate 4051034 Furnace refractory frame 16a 4051035 FKC spacer 16b 4051036 FKC spacer 16c 4051037 FKC spacer 4051038 Resistance unit 4051039 Ceramic support...
- Page 18 CODE DESCRIPTION 4050045 Ceramic base for works 4051047 Plate insulating ring 4050048 FCK internal ring 4050049 FCK disk 4051116 OR joint on plate 4050009 Aluminum plate 4051008 Sliding plate support 4051119 Spring 4051007 Mobile plate...
- Page 19 CODE DESCRIPTION 4051017 M12 screwed shaft 4051020 M12 threaded bush 4051011 Transverse slide 4051010 Microswitch operating clamp 4051014 Lower plate 4051125 Microswitch 4051126 Encoder reader 4051127 Encoder disk 4051026 Encoder disk support 4051128 Gearmotor 4051025 Grooved shaft 4051024 Engine coupling 4051023 Anti-vibration washer 4051022 Microswitch support 4051021 Self-lubricating bush...
- Page 20 CODE DESCRIPTION 4051129 Power supply and switch unit 4051130 Pump connection socket 4051131 Vacuum insertion solenoid valve (EV3) 4051012 Upright support 4051002 Metallic body 4051138 Vacuum distribution column complete 4P OUT 220V terminal 2P IN 220V terminal Spacer for board 4050001 Brand label + AL panel 4050108 CPU board with display 4051139 Potentiometer knob...
-
Page 21: Wiring Diagram
10 – WIRING DIAGRAM REF. DESCRIPTION REF. DESCRIPTION S IN Power plug unit Heating resistance Main switch Type N / K thermocouple FUSE Fuses Plate motion motor EMI filter Vacuum release solenoid valve Toroidal transformer Vacuum insertion solenoid valve Power board Cooling fan CPU card Plate motion encoder... -
Page 22: Vacuum Circuit
11 – VACUUM CIRCUIT REF. DESCRIPTION Solenoid valve (vacuum IN) Solenoid valve (vacuum OUT) Working chamber Sensor on CPU DENTALFARM S.r.l. Via Susa, 9/a - 10138 TORINO – ITALY tel. (++39) 011 4346588 - 4346632 fax (++39) 011 4346366 e-mail info@dentalfarm.it www.dentalfarm.it...
