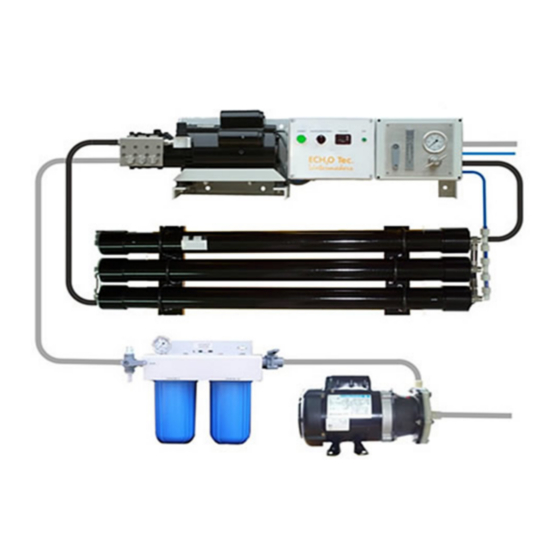

ECH2O Tec. BEACH HOUSE Series Owner's Manual

Wall mount unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

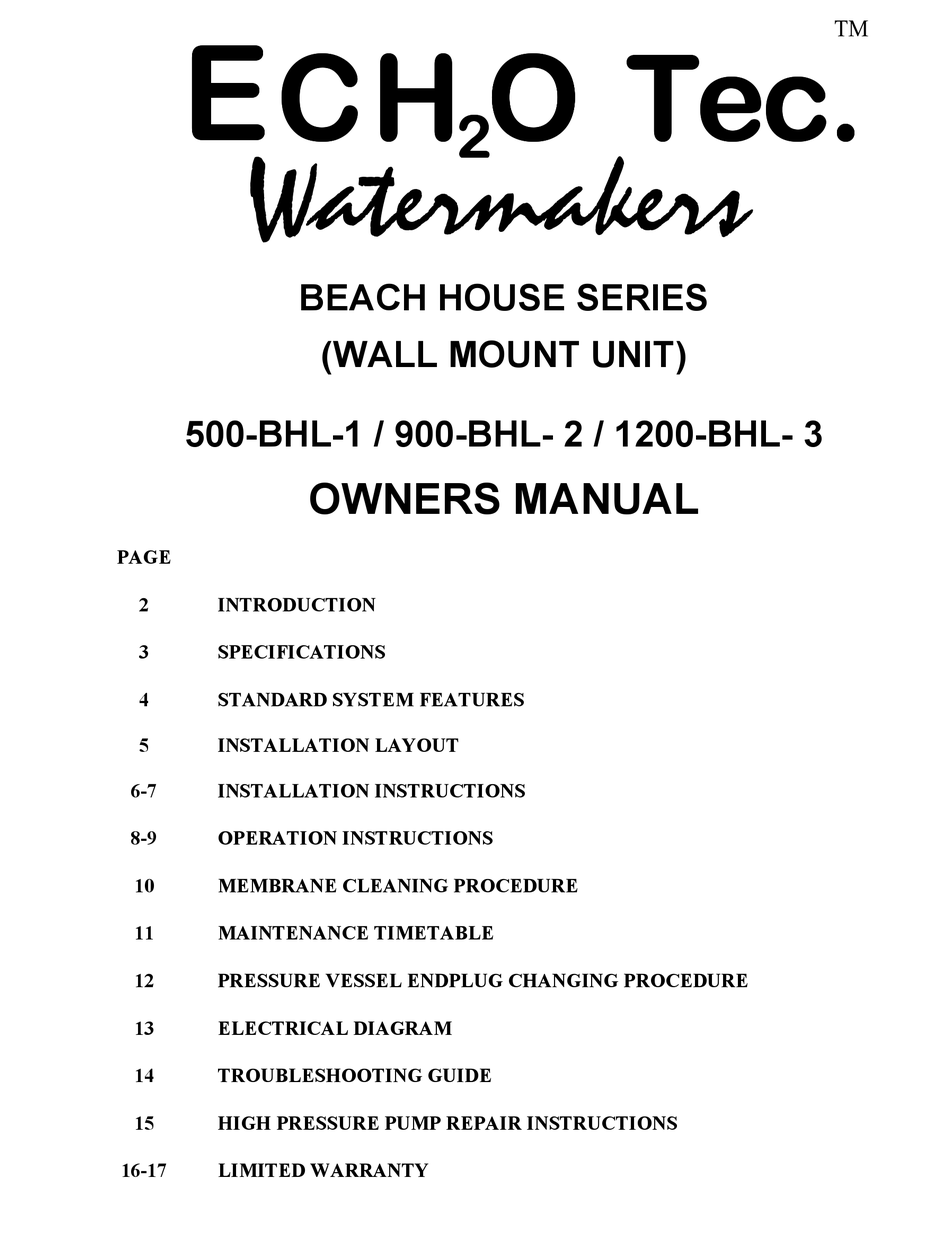

E E E E
C C C C H H H H
Watermakers
500-BHL-1 / 900-BHL- 2 / 1200-BHL- 3
PAGE
2
INTRODUCTION
3
SPECIFICATIONS
4
STANDARD SYSTEM FEATURES
5
INSTALLATION LAYOUT
6-7
INSTALLATION INSTRUCTIONS
8-9
OPERATION INSTRUCTIONS
10
MEMBRANE CLEANING PROCEDURE
11
MAINTENANCE TIMETABLE
12
PRESSURE VESSEL ENDPLUG CHANGING PROCEDURE
13
ELECTRICAL DIAGRAM
14
TROUBLESHOOTING GUIDE
15
HIGH PRESSURE PUMP REPAIR INSTRUCTIONS
16-17
LIMITED WARRANTY
2 2 2 2
BEACH HOUSE SERIES
(WALL MOUNT UNIT)
OWNERS MANUAL
O Tec.
O Tec.
O Tec.
O Tec.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEACH HOUSE Series and is the answer not in the manual?

Questions and answers

Related Manuals for ECH2O Tec. BEACH HOUSE Series

Summary of Contents for ECH2O Tec. BEACH HOUSE Series

  • Page 1 C C C C H H H H O Tec. O Tec. O Tec. O Tec. 2 2 2 2 Watermakers BEACH HOUSE SERIES (WALL MOUNT UNIT) 500-BHL-1 / 900-BHL- 2 / 1200-BHL- 3 OWNERS MANUAL PAGE INTRODUCTION SPECIFICATIONS STANDARD SYSTEM FEATURES...
  • Page 2 Thank you for choosing an ECHO Tec. reverse osmosis desalination system. We trust that you will be completely satisfied with our product. The Beach House Series has been specially designed for small hotels, marinas and beach houses. The high power efficiency and low maintenance cost makes high quality RO water in many cases more economical than land supplied water, if available.
  • Page 3 SPECIFICATIONS RATED PERFORMANCE: min. 20 gallons – 75ltr. / hour ECHO Tec: 500 – BHL – 1 min. 38 gallons – 140ltr. / hour 900 – BHL – 2 min. 50 gallons – 210ltr. / hour 1200 – BHL – 3 1500 –...
  • Page 4 STANDARD SYSTEM FEATURES 2 Filter housings with bracket and 5 and 20 micron pre filter cartridges 1 Storage/cleaning valve with 3/4” and 1/2” hose barbs 1 Shut off valve with 3/4” hose barb 1 Filter wrench 1 High-pressure pump unit with controls Pressure vessel(s) with reverse osmosis membrane(s) O Tec.

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS HIGH PRESSURE PUMP UNIT Mount the high pressure pump unit in a cool and dry location, not higher than 30ft above low water level at a distance not further than 100ft / 30m. The electrical installation should only be done by a professional electrician. Check the correct voltage before installing the system.
  • Page 7 SEAWATER FEED PUMP AND PRIMING RESERVOIR With the aid of the priming reservoir, the feed pump is able to prime the raw water up to a height of 9ft. Mount the feed pump in a dry location not higher than 9ft above low water level. Mount the priming reservoir with the outlet (lower connection) at the same level as the intake of the feed pump in a dark location (inhibits growth of algae).

  • Page 8: System Shut Down Procedure

    SYSTEM OPERATION INSTRUCTIONS The reverse osmosis membrane contains a preservative solution to prevent microbiological growth. If ingested, may cause irritation of the gastro-intestinal tract, colic, diarrhea, or other similar symptoms. Therefore, discard all the product water for at least thirty minutes of initial operation or after storage before drinking or use in food preparations! Do not operate the system using contaminated feed water sources (oil, chlorine or other chemicals).

  • Page 9: Fresh Water Flush Procedure

    FRESH WATER FLUSH PROCEDURE Caution: The fresh water pressure should not exceed the range of the low pressure gauge/s. The installation of a pressure reducer may be necessary. You should fresh water flush your watermaker after every use or infuse a biocide solution for long term storage.

  • Page 10: Membrane Cleaning Procedure

    MEMBRANE CLEANING PROCEDURE The membranes of the ECHO Tec. Watermaker must be chemically cleaned when the product water output drops by 20% of the specified amount. The frequency of this occurring will vary greatly depending upon feed water. Fouling of the membranes will naturally occur during normal usage of the ECHO Tec.

  • Page 11: Maintenance Timetable

    MAINTENANCE TIMETABLE The following maintenance timetable is an estimate of the time intervals at which maintenance may be required only. This schedule must be adjusted to the regularity of usage, the condition of the intake water, the length of time the system is exposed to seawater and the total running time following each system cleaning.
  • Page 12 MEMBRANE CHANGING PROCEDURE PRESSURE VESSEL END PLUG CHANGING PROCEDURE Remove the product port (if installed) and the high pressure fitting. Remove the two/three M6 bolts. Remove the two/tree locking plates (locks) Remove the backing plate Pull the end plug with the aid of a hand tight inserted product port in one fast pull. Should the plugs O-ring (PL01)get stuck in the groove of the pressure vessel, it will be more difficult to pull the plug.
  • Page 14 Watermakers ECHOTec. High Pressure Pump ET-WM316T PARTS LIST ITEM PART NO. DESCRIPTION KIT NO. QTY. ITEM PART NO. DESCRIPTION KIT NO. QTY. ITEM PART NO. DESCRIPTION KIT NO. QTY. 1-29. 195022 Crankcase Case Assembly 16. 650031 Oil drain plug 32. 520055 Manifold 1.

  • Page 15: Troubleshooting Guide

    HIGH PRESSURE PUMP SYSTEM TROUBLESHOOTING GUIDE MALFUNCTION CAUSE REMEDY The pressure drops Broken valve spring Replace spring Fouled inlet strainer Clean strainer Fouled pre-filter(s) Replace filter cartridge(s) Cavitation (Noisy operation) Check suction lines for Restrictions Air in system Check suction lines for leaks Water in crankcase High humidity Reduce oil change interval...
  • Page 16 ECHO TEC. WATERMAKER LIMITED WARRANTY Echo Marine Ltd. warrants to the original purchaser for a period of twelve (12) months from the date of shipment that the ECHO Tec. watermaker will perform according to specifications. Echo Marine’s liability under this warranty shall be limited to repair or replacement of the ECHO Tec. watermaker at Echo Marine’s option.
  • Page 17 The ECHO Tec. Membrane Element is guaranteed to be cleanable for a minimum of one year from date of shipment, or commissioning of the system by Echo Marine Ltd, provided that cleaning instructions are adhered to and foulant is acid soluble metal hydroxides and calcium carbonates or alkaline soluble organic, inorganic substances and microbiological slimes.

This manual is also suitable for:

500-bhl-1900-bhl- 21200-bhl- 3
