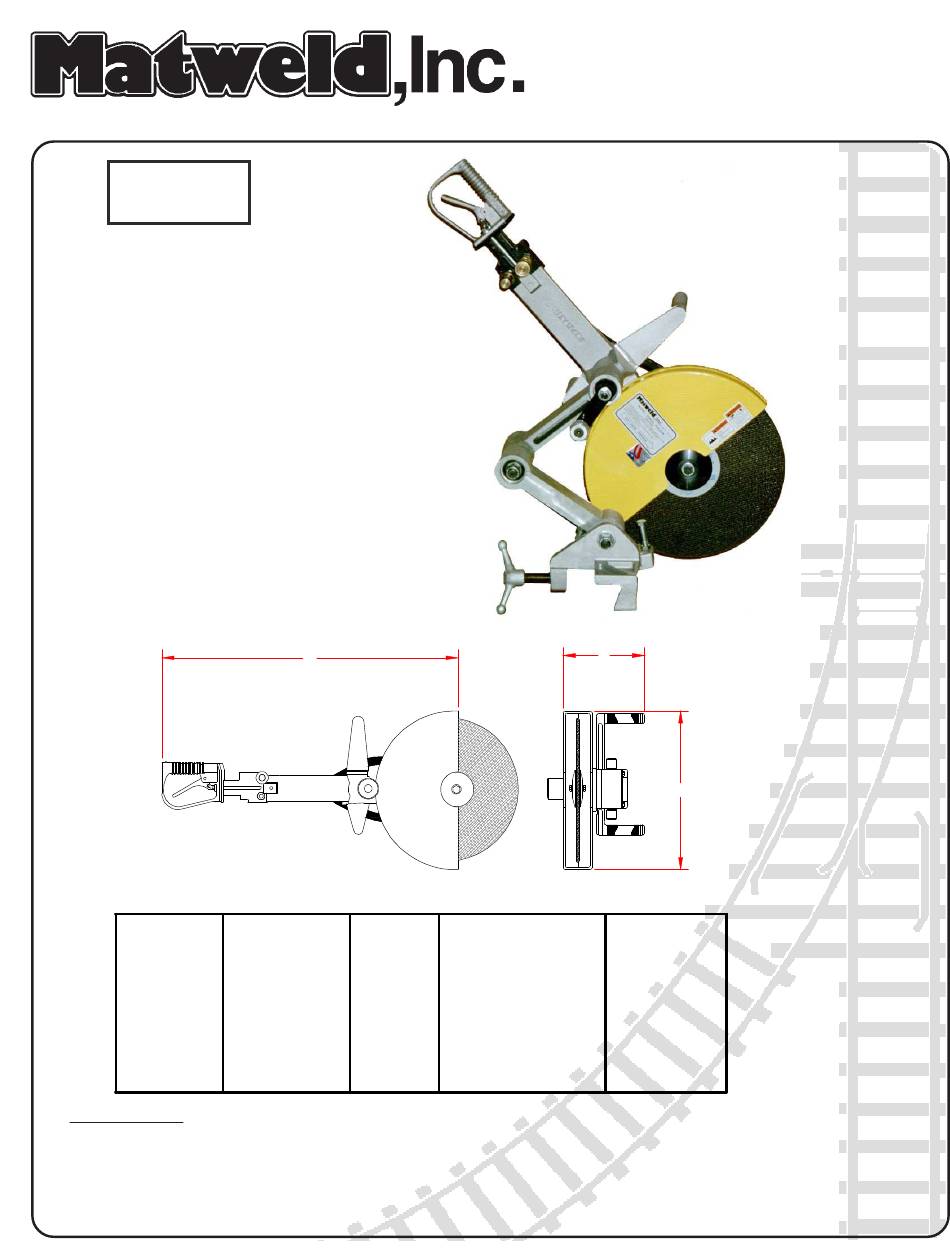

00800A
Rail Saw

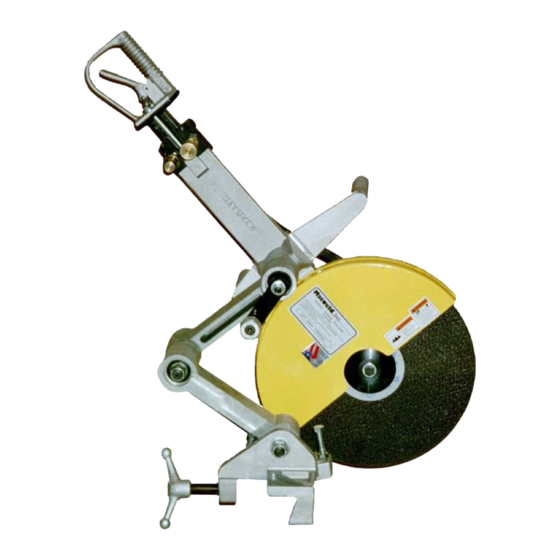

The Matweld Rail Saw is hydrau-
lic powered abrasive rail saw that
uses a 14 or 16 inch diameter
blade to cut rail. A sturdy pivot arm
securely clamps to the rail and
guides the saw during operation.
Free axis movement of the tool
allows cutting on either side of the
rail and clean separations aver-
age well under two minutes.
Sturdy construction and quality
components ensure low mainte-
nance and long life of the tool.
FLOW
10 gpm
(38 lpm)
Accessories:
00897 - 14" saw blades
00899 - 16" saw blades
A
PRESSURE
RPM
3200
2000 psi
(140 bar)
B
DIMENSIONS
A - 36"
35 lbs( 16 kg)
B - 10"
C - 17"
20 lbs. (9 kg)
CLAMP
L36" X W8" X H11"
632 South 3rd Street
P.O. Box 2816 • Paducah, KY 42002
Fax: 270-443-6180
Website: www.matweld.com
Email: customerservice@matweld.com
C
WEIGHT
SAW
CLAMP
270-444-0085
REV.8/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 00800A and is the answer not in the manual?

Questions and answers

Related Manuals for Matweld 00800A

Summary of Contents for Matweld 00800A

  • Page 1 Website: www.matweld.com Email: customerservice@matweld.com 00800A Rail Saw The Matweld Rail Saw is hydrau- lic powered abrasive rail saw that uses a 14 or 16 inch diameter blade to cut rail. A sturdy pivot arm securely clamps to the rail and guides the saw during operation.
  • Page 2 MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...

  • Page 3: General Safety Precautions

    MAINTENANCE OF THIS TOOL. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY OR EQUIPMENT DAMAGE. MATWELD HAS NO CONTROL OVER TOOL USE OR OPERATION ONCE IT LEAVES THE MATWELD PLANT. MATWELD HAS NO CONTROL OVER OPERATOR OR MAINTAINER SELECTION. THE CUSTOMER MUST ASSUME RESPONSIBILITY FOR THE TOOL’S SUITABILITY FOR A PARTICU-...
  • Page 4 SIONS. FAILURE TO DO SO MAY RESULT IN EQUIPMENT DAMAGE AND / OR PERSONAL INJURY OR DEATH. • CLEAN UP ANY OIL OR FLUID SPILLS IMMEDIATELY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 5 HAVE SUPERVISOR ADD ADDITIONAL PRECAUTIONS RELATING TO THE SPECIFIC WORK AREA AND LOCAL SAFETY REGULATIONS BELOW: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...

  • Page 6: Safety Precautions

    DEFECTS OR VIBRATION. 13. NEVER LET THE SAW BLADE CUT INTO ANY MATERIAL (TIE, BALLAST, ETC…) OTHER THAN THE RAIL BEING CUT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 7 BEFORE ATTEMPTING TO FREE THE BLADE. AFTER FREEING THE BLADE REPLACE IT WITH A NEW BLADE BEFORE CONTINUING THE CUT. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 8 REMEMBER, THE SPARKS WILL NOW GO UP RATHER THAN DOWN IN THIS POSITION. 9. AFTER FINISHING THE CUT, TURN THE POWER SOURCE “OFF” AND DISCONNECT HOSES BEFORE ATTEMPTING TO REMOVE THE SAW. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 9 OTHER FLUIDS THAT MEET OR EXCEED THIS SPECIFICATION CAN BE USED. *SEE COLD WEATHER OPERATION HYDRAULIC OIL NOTE. 5. HAVE TOOL INSPECTED, AT LEAST ANNUALLY, BY MATWELD OR A MATWELD QUALIFIED SERVICE REPRESENTATIVE TO DETERMINE IF TOOL IS IN NEED OF SAFETY CHANGES OR WORN PART REPLACEMENT.

  • Page 10: Repair Troubleshooting

    LATED BACK AND FORTH WHILE CUTTING. THE AVERAGE CUTTING TIME IS 1 - 2 MIN- UTES FOR 132 LB RAIL. • THE PROPER RPM OF THE MATWELD SAW IS 3200 ( + 100) RPM AT 10 GPM. • THE SAW RPM IS A PROPORTIONAL TO THE FLOW PROVIDED. IF THE FLOW DROPS TO 8 GPM THE RPM OF THE SAW WILL BE 2400 RPM, MUCH TOO SLOW FOR CUTTING RAIL.
  • Page 11 DIRECT THE FLOW INTO THE TOOL CORRECTLY. REVERSING THE HOSES TO TEST MAY RESULT IN BLOWN SEALS, DAMAGE TO THE TOOL, AND PERSONAL INJURY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 12 00800A RAIL SAW REV. 11/04/07 MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.11/04/07...
  • Page 13 00899 16” PREMIUM CUT-OFF WHEEL 00608B MOTORS WILL REQUIRE 01612 - SHAFT SEAL KIT 01631-UNI - INTERNAL SEAL KIT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV. 11/04/07...
  • Page 14 03940A CLAMP ASSEMBLY REV 2 11/04/07 03940A RAIL SAW CLAMP ASSEMBLY revised 10/30/07 MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.11/04/07...
  • Page 15 ½-13 X 2” GR. 5 ZP A1087 ½-13 X 2-1/2” GR. 5 ZP A3930A CRANK HANDLE KNOB RKK 5/8-11 KEEN SERT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.11/04/07...

  • Page 16: Decal Legend

    00800A RAIL SAW DECAL LEGEND: serial tag backside of guard MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 17 ON ANY THEORY OF LIABILITY INCLUDING, WITHOUT LIMITATIONS, BREACH OF CONTRACT, TORT, (INCLUDING NEGLIGENCE OR STREET LIABILITY) AND NOT WITHSTANDING ANY FAIL- URE OF ANY REMEDY HEREIN OF ITS ESSENTIAL PURPOSE, EVEN IF MATWELD WAS AWARE OF THIS POSSIBILITY OF SUCH DAMAGE. MATWELD’S LIMITED WARRANTY AS SET FORTH...

  • Page 18: General Notes

    00800A RAIL SAW GENERAL NOTES MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...
  • Page 19 00800A RAIL SAW GENERAL NOTES MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 11/99 REV.8/04...

  • Page 20: Customer Information

    Name _____________________________________________________ Company___________________________________________________ Serial # of your Matweld tool___________________________________ ( Upon receiving your Matweld tool, make sure to list serial number above so that a good record is kept for order information.) MATWELD HYDRAULIC TOOL LIST All Matweld Hydraulic Tools operate at...
