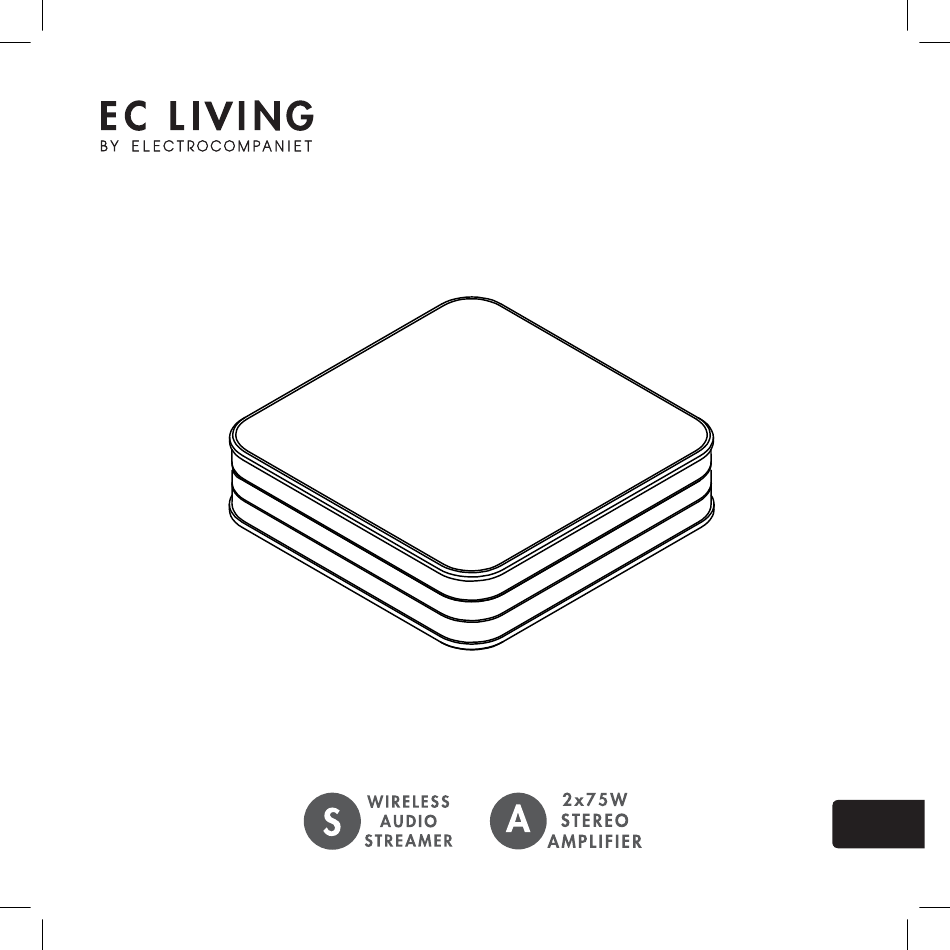

QUICK START GUIDE
SA-1
RENA
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC Living RENA SA-1 and is the answer not in the manual?

Questions and answers

Related Manuals for ELECTROCOMPANIET EC Living RENA SA-1

Summary of Contents for ELECTROCOMPANIET EC Living RENA SA-1

  • Page 1 QUICK START GUIDE SA-1 RENA...

  • Page 2: Package Content

    ENGLISH INTRODUCTION Welcome to the world of Electrocompaniet! Through more than 40 years of ceaseless practice, we learned how to combine timeless Scandinavian design and innovative thinking to give you the purest possible expe- rience of music and sound. EC Living, not only combines all of that into one small package, it also embeds in itself the technologies of tomorrow, granting you access to all your favourite Music Streaming Services at your fingertips.
  • Page 3 FIRST TIME SETUP The system supports multiple ways of doing this first time setup: A L T E R N A T I V E S E T U P R E C O M M E N D E D 1.

  • Page 4: Connect The Power Cable

    The free App is available at Apple store or Use your PC, Mac or Linux Google Play. Search for: “EC remote” or machine with a web browser “Electrocompaniet” Connect to your router In order to establish a Wi-Fi connection you have to use a LAN cable which con- nects to you local network, or directly to your router.

  • Page 5: Follow The On-Screen Instructions

    FOLLOW THE ON-SCREEN INSTRUCTIONS A L T E R N A T I V E R E C O M M E N D E D Use a web browser Start your “EC Remote” App Enter the address of your EC Living system in As long as you have downloaded the App the web browser.

  • Page 6: Audio Settings

    Audio Settings Choose the type of speaker that you’ve attached to the RENA SA-1. For example, “small” for speakers small enough to hold in your hand, or “bookshelf” for speakers placed on benches and in bookshelves.” Tap Next (upper right corner) when you are done. SETUP 1 : CONNECTING PASSIVE SPEAKERS Connect a passive speakers to a speaker terminals at the rear panel of RENA SA-1.
  • Page 7 ADDING AN ADD-ON SPEAKER TANA L-1 FROM THE SETTINGS MENU ( if you buy an Add-on speaker later) Go to SETTINGS -> OUTPUT SETTING -> SPEAKER CONFIGURATION. Follow instructions from SETUP 2. Test of audio output Tap the button START TEST. A standard “white noise” sound should be played on all paired speakers. Wait until the test sound stops.

  • Page 8: Enabling Wireless Connection

    ENABLING WIRELESS CONNECTION This step is only necessary if you want the system connected to your wireless network. If you want to continue using wired connection (LAN cable), simply skip this page. (We recommend using wired connection if possible to reduce Wi-Fi traffic and achieve best possible stability for the system.) Wireless network setup: 1.

  • Page 9: Android Devices

    The free App is available at Apple store or Use your PC, Mac or Linux Google Play. Search for: “EC remote” or machine with a web browser “Electrocompaniet” Connect the power cable Power up the RENA SA-1 by connecting the power supply included in the box. Before continuing, check that you have a glowing light at the top of the RENA SA-1.
  • Page 10 RENA S-1 STATUS INDICATORS There are three status LEDs indicating the status of your system. Volume Standby Volume DOWN System state Led state Colour Start-up Flashing fast, then on only for 10s Green Scanning library Flashing slow. Will turn off when Green the scanning is completed No network...

  • Page 11: Rear Panel Overview

    REAR PANEL OVERVIEW 3. 4. 5. 1. Power Socket (34V DC) 2. Gigabit Ethernet (RJ45) 3. COAX S/PDIF digital Output 4. COAX S/PDIF digital Input 5. TOSLINK S/PDIF digital Input 6. USB Port (HDD, Memory stick) 7. ANALOG LINE output 8.

  • Page 12: Tips And Troubleshooting

    The unit will have restarted into the initial setup and you can then follow the steps in this quick start guide. To fully reset the software of the system, please go to support chapter of our electrocompaniet.no/ecliving website and follow the instructions for software download.

  • Page 13: Service And Support

    4. Always ship the unit in its original carton and packaging material to prevent damage in transit. Electrocompaniet will not cover damages incurred in transit. If you require further information concerning the operation of the unit, or if you have any questions related to service, please do not hesitate to contact your dealer or your national distributor.
  • Page 16 www.ecliving.eu Designed and produced in Norway REV 1.0 Feb 2017...
