aqua
computer
RGBpx Splitty12 ACTIVE
RGBpx Splitty12 ACTIVE
RGBpx Splitty12 ACTIVE
RGBpx Splitty12 ACTIVE

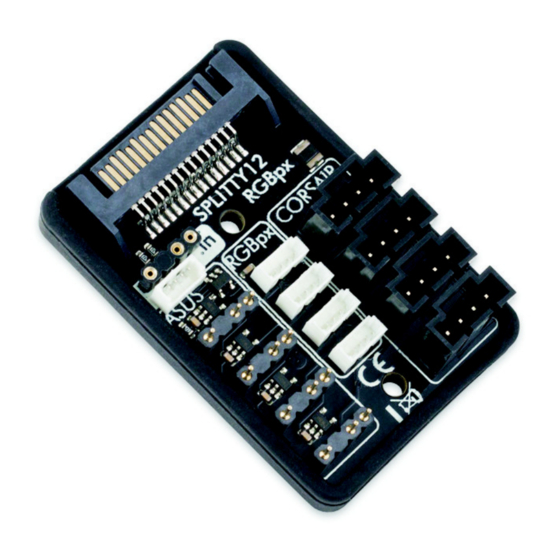

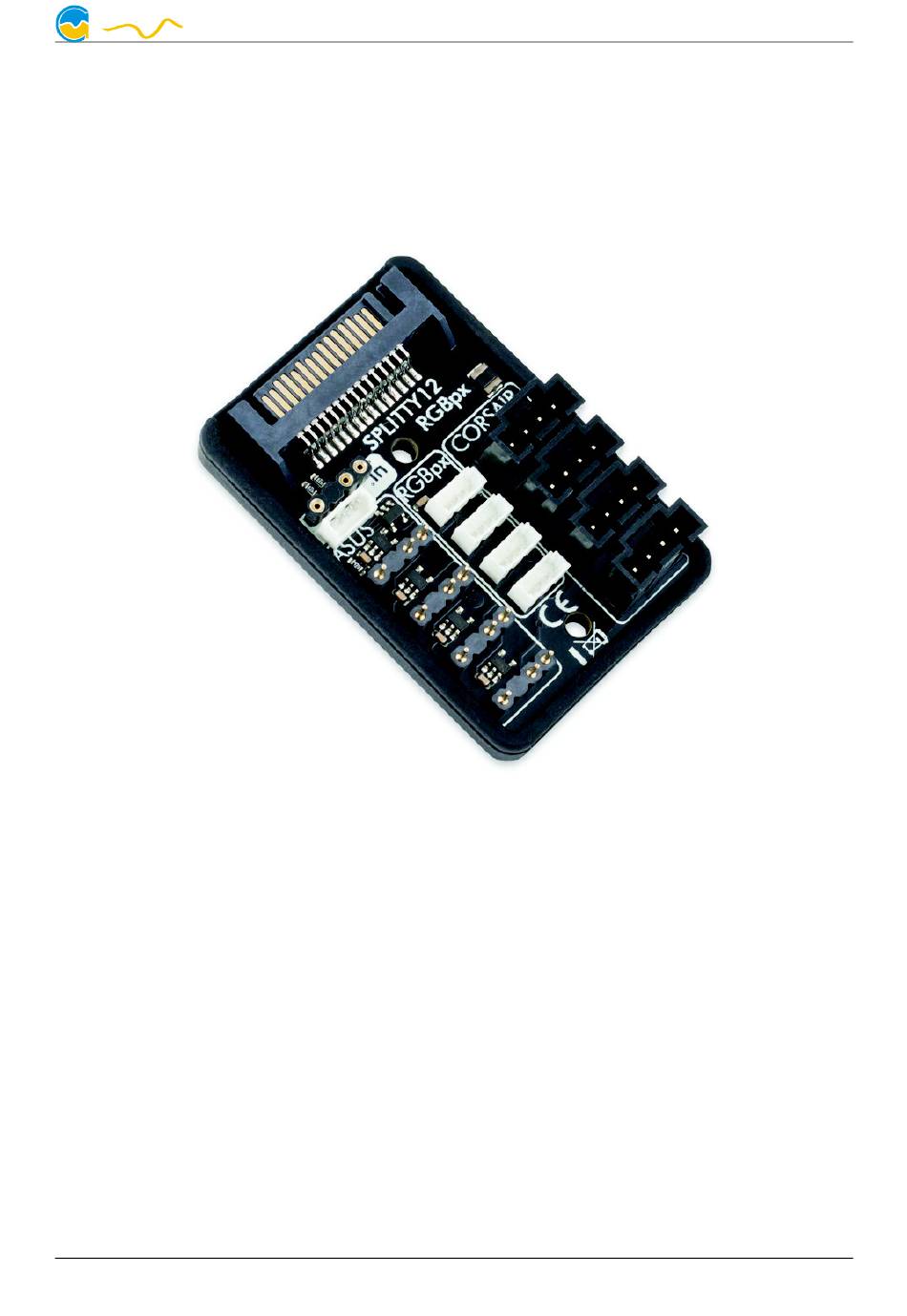

This splitter can be used to connect up to 12 RGBpx/ARGB compo-
nents to a single RGBpx or ARGB output. All twelve outputs are
connected in parallel, all connected components are controlled
identically. Power for all outputs is supplied through a SATA power
connector.
Input signal
Input signal
Input signal
Input signal
The digital RGB input can either be supplied though a RGBpx head-
er or a typical motherboard ARGB header, both headers are
marked with the word "in". Connect one of the headers to a RGBpx
output of an Aqua Computer device or an ARGB output of a moth-
erboard. Only one of the headers may be connected, never both
header simultaneously!
© 2021
Instruction manual
Instruction manual
Instruction manual
Instruction manual
Aqua Computer GmbH & Co. KG
Gelliehäuser Str. 1, 37130 Gleichen
RGBpx Splitty12 ACTIVE
95607
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aqua Computer RGBpx Splitty12 ACTIVE
Summary of Contents for Aqua Computer RGBpx Splitty12 ACTIVE
- Page 1 ARGB header, both headers are marked with the word “in”. Connect one of the headers to a RGBpx output of an Aqua Computer device or an ARGB output of a moth- erboard. Only one of the headers may be connected, never both header simultaneously! ©...
- Page 2 One RGBpx adapter (replacement part no. 53285) Two screws M3 x 10 mm (replacement part no. 91180) Two hex nuts M3 (replacement part no. 91017) Self-adhesive hook-and-loop fastening strip © 2021 Aqua Computer GmbH & Co. KG 95607 Gelliehäuser Str. 1, 37130 Gleichen...
