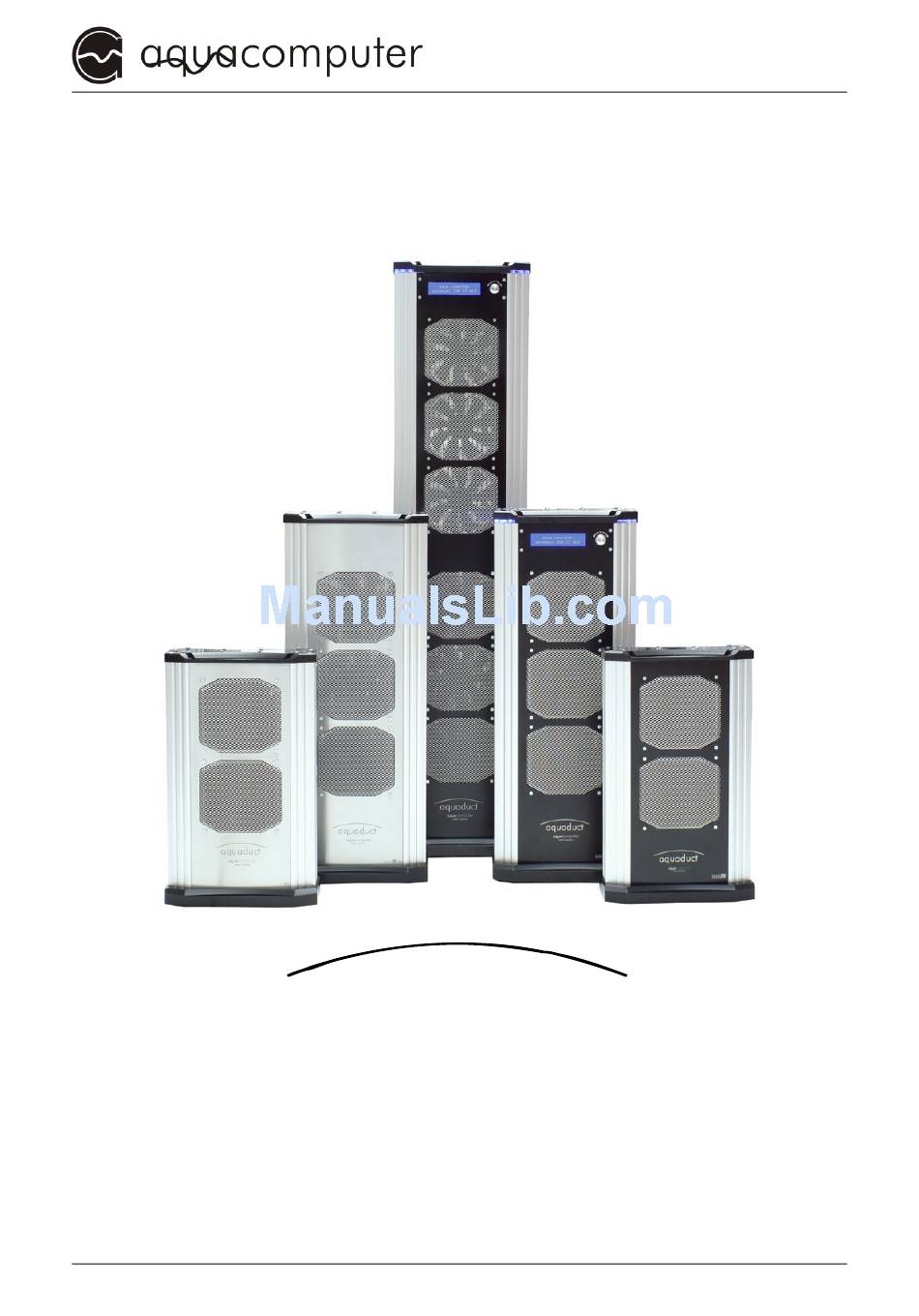

- Page 1 Operating and assembly manual Operating and assembly manual aquaduct eco series eco series eco series eco series 240 eco and 360 eco/eco+ mark II January 2016 © 2007-2016 Aqua Computer GmbH & Co. KG - 1 - Gelliehäuser Str. 1, 37130 Gleichen, Germany...
-
Page 2: Table Of Contents
6.5. Proper connection of cuplex kryos and cuplex PRO......13 7. Installation of the PC interface circuit board........14 7.1. Connector „power“ ..............14 7.2. Connector„pump rpm signal“ (not for aquaduct 240 eco mark II AC 230 V)....................14 7.3. Connector „flow“ (aquaduct 360 eco+ mark II only)......14 7.4. -
Page 3: Preface
Dear Customer, We congratulate you on the purchase of a water cooling system made by Aqua Computer GmbH & Co. KG. We are one of the most renowned manufacturers of PC water cooling systems in Germany. Our production meets highest quality standards. During the development we especially took into account that our cooling system is dependable and leak proof. -
Page 4: Information On The Assembly Of A Water Cooling System
In addition to the aquaduct cooling system you merely need the water coolers matching your PC's components. As a general rule, all water blocks produced by Aqua Computer can easily be disassembled to al- low for cleaning after long use. No part is glued or soldered, therefore... -
Page 5: Safety Precautions
5. Do not start your computer before you are absolutely sure that no water leaks from the system! water leaks from the system! water leaks from the system! water leaks from the system! © 2007-2016 Aqua Computer GmbH & Co. KG - 5 - Gelliehäuser Str. 1, 37130 Gleichen, Germany... - Page 6 Co. KG customers using or selling this product for use in such applica- - - - tion do so at their own risk and agree to fully indemnify Aqua Computer tion do so at their own risk and agree to fully indemnify Aqua Computer...
-
Page 7: Scope Of Delivery
3. Scope of delivery 3. Scope of delivery 3. Scope of delivery 3.1. aquaduct 240 eco mark II AC 230 V 3.1. aquaduct 240 eco mark II AC 230 V 3.1. aquaduct 240 eco mark II AC 230 V 3.1. aquaduct 240 eco mark II AC 230 V - aquaduct 240 eco mark II AC 230 V - 2 pcs. -
Page 8: Aquaduct 360 Eco Mark Ii/Aquaduct 360 Eco+ Mark Ii
1-2 °C in an average system, meaning that the water just heats up about 1-2 °C while flowing through all the coolers. - 8 - Aqua Computer GmbH & Co. KG © 2007-2016 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 9: Use Of The Plug&Cool Connectors
Multi-Tool. Slip it over the hose with the middle opening. 2. While pushing down While pushing down While pushing down pull the hose from While pushing down the connector. © 2007-2016 Aqua Computer GmbH & Co. KG - 9 - Gelliehäuser Str. 1, 37130 Gleichen, Germany... -
Page 10: Installation Of The Cpu Water Block (Cuplex™ Series)
After removing the cooler you have to clean the die of the processor of any residue of old heat- - 10 - Aqua Computer GmbH & Co. KG © 2007-2016 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 11: Installation Of "4-Hole-Mounting Kits" - Socket, 775, 1366, Am2
M4 nuts up to the limit © 2007-2016 Aqua Computer GmbH & Co. KG - 11 - Gelliehäuser Str. 1, 37130 Gleichen, Germany... -
Page 12: Installation Of „2-Hole-Mounting Kits" - Socket 754, 939, F
Before the assembly of the screws an existent plastic framework must be removed if necessary. The two bigger feathers of the mounting kit are used as feathers. Please gather the further procedure from chapter 6.3. - 12 - Aqua Computer GmbH & Co. KG © 2007-2016 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 13: Examination And Connection To The Cooling System
When operated with reversed flow direction, the cooling performance is significantly reduced. © 2007-2016 Aqua Computer GmbH & Co. KG - 13 - Gelliehäuser Str. 1, 37130 Gleichen, Germany... -
Page 14: Installation Of The Pc Interface Circuit Board
7.2. Connector„pump rpm signal“ (not 7.2. Connector„pump rpm signal“ (not 7.2. Connector„pump rpm signal“ (not for aquaduct 240 eco mark II AC 230 V) for aquaduct 240 eco mark II AC 230 V) for aquaduct 240 eco mark II AC 230 V) -
Page 15: Connector „Fan" (Aquaduct 240 Eco Mark Ii Ac 230 V Only)
7.4. Connector „fan“ (aquaduct 240 eco mark II AC 230 V only) 7.4. Connector „fan“ (aquaduct 240 eco mark II AC 230 V only) The integrated fans of the aquaduct 240 eco mark II AC 230 V must be powered through this connector. Therefore connect this terminal to a suitable fan power connector of your motherboard or a fan controller using the supplied connection cable. -
Page 16: Connecting The Aquaduct
The USB interface of the aquaduct can be connected with the PC to configure the integrated control unit of the aquaduct using the aqua- suite software. For the aquaduct 240 eco mark II AC 230 V, this con- nector is not operational! Adjacent to the electrical connectors, the hoses for coolant supply and return have to be connected. -
Page 17: Initial Operation
To power the pump of the aquaduct 240 eco AC 230 V, plug in the mains plug to an empty wall outlet. With all models with an integrated 12 V pump, an adapter is included which enables you to start the power supply unit of your PC without con- necting the motherboard. - Page 18 If components have come into contact with water, do not put these into operation before they are completely dry again! - 18 - Aqua Computer GmbH & Co. KG © 2007-2016 Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 19: Electronic Fill Level And Flow Indicator (Aquaduct 360+ Mark Ii With Additional Flow Sensor Only)
2. Activate the calibration using the PC Software. During calibration, the pump frequency is temporarily set to a (low) ref- erence value. After completion, the originally set frequency is restored. © 2007-2016 Aqua Computer GmbH & Co. KG - 19 - Gelliehäuser Str. 1, 37130 Gleichen, Germany... -
Page 20: Maintenance And Care Instructions
If you do have any more questions we will be happy to help you per e- mail or in our support-forum. - 20 - Aqua Computer GmbH & Co. KG © 2007-2016 Gelliehäuser Str. 1, 37130 Gleichen...
