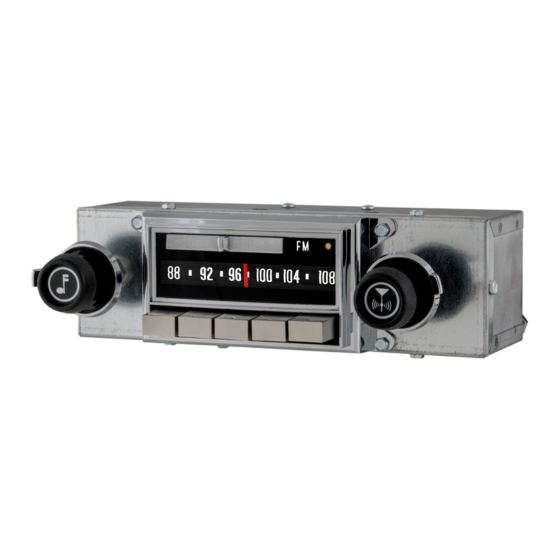

- Page 1 Release Date March 2018 1972-1976 CORVETTE AM/FM/BLUETOOTH ® RADIO INSTALLATION OPERATING INSTRUCTIONS AM/FM10.0 Model 992201BT ANTIQUE AUTOMOBILE RADIO, INC. 700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733 For HELP, Questions or Comments email: support@radiosforoldcars.com...

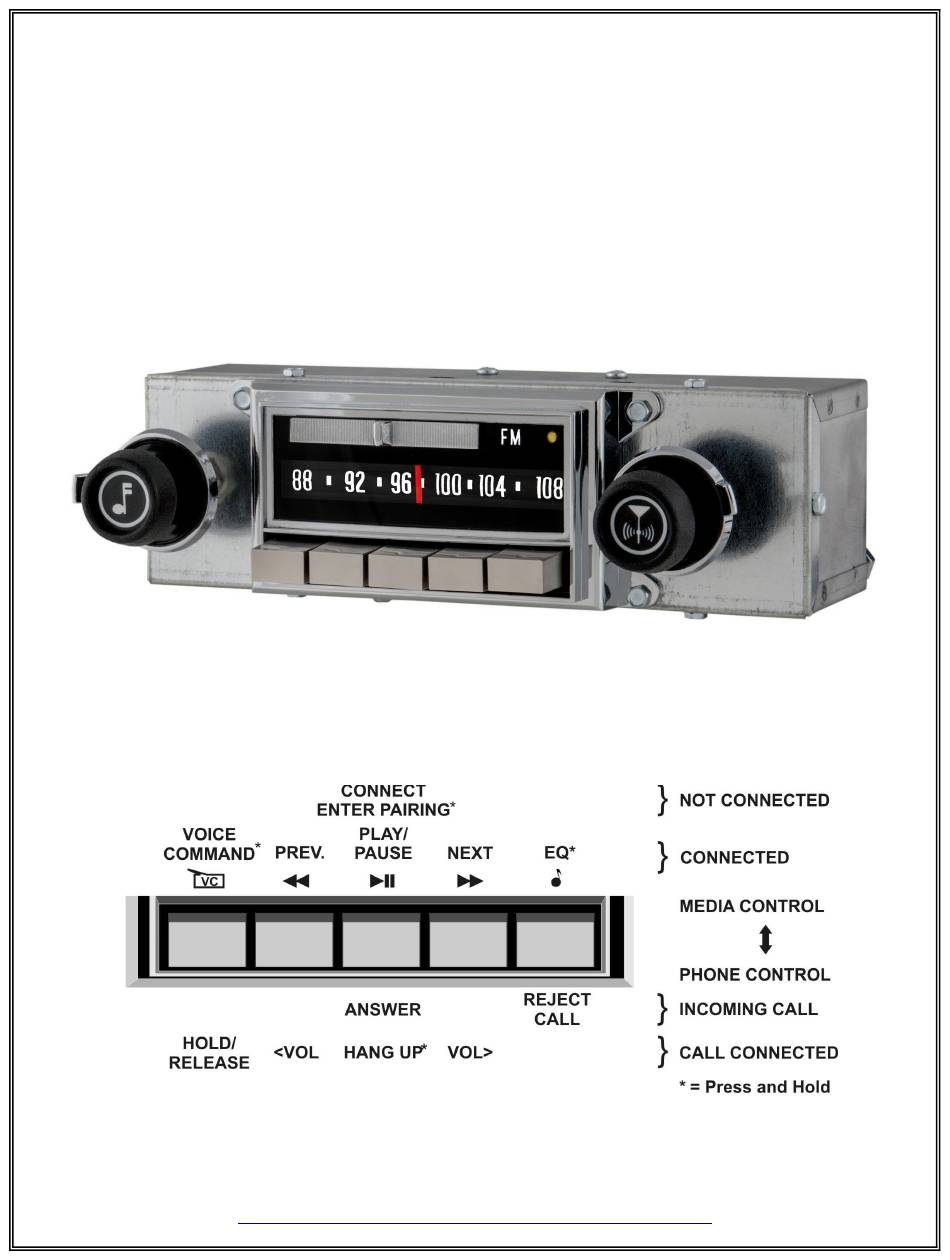

- Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed to preserve the original fit, functions and appearance of your radio while providing the best of the latest digital technology. The more modern features that were not available when your vehicle was new are cleverly disguised so that they are functional and easily accessible, but are not visible.
- Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See illustration below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
- Page 4 INSTALLATION The illustration below shows the radio installation from the front of the dash. The front of your new radio is a dimensionally exact copy of the original, so it will install the same way that the original radio did. The radio is much smaller when viewed from the back than the original was, so the original mounting bracket won't fit.
