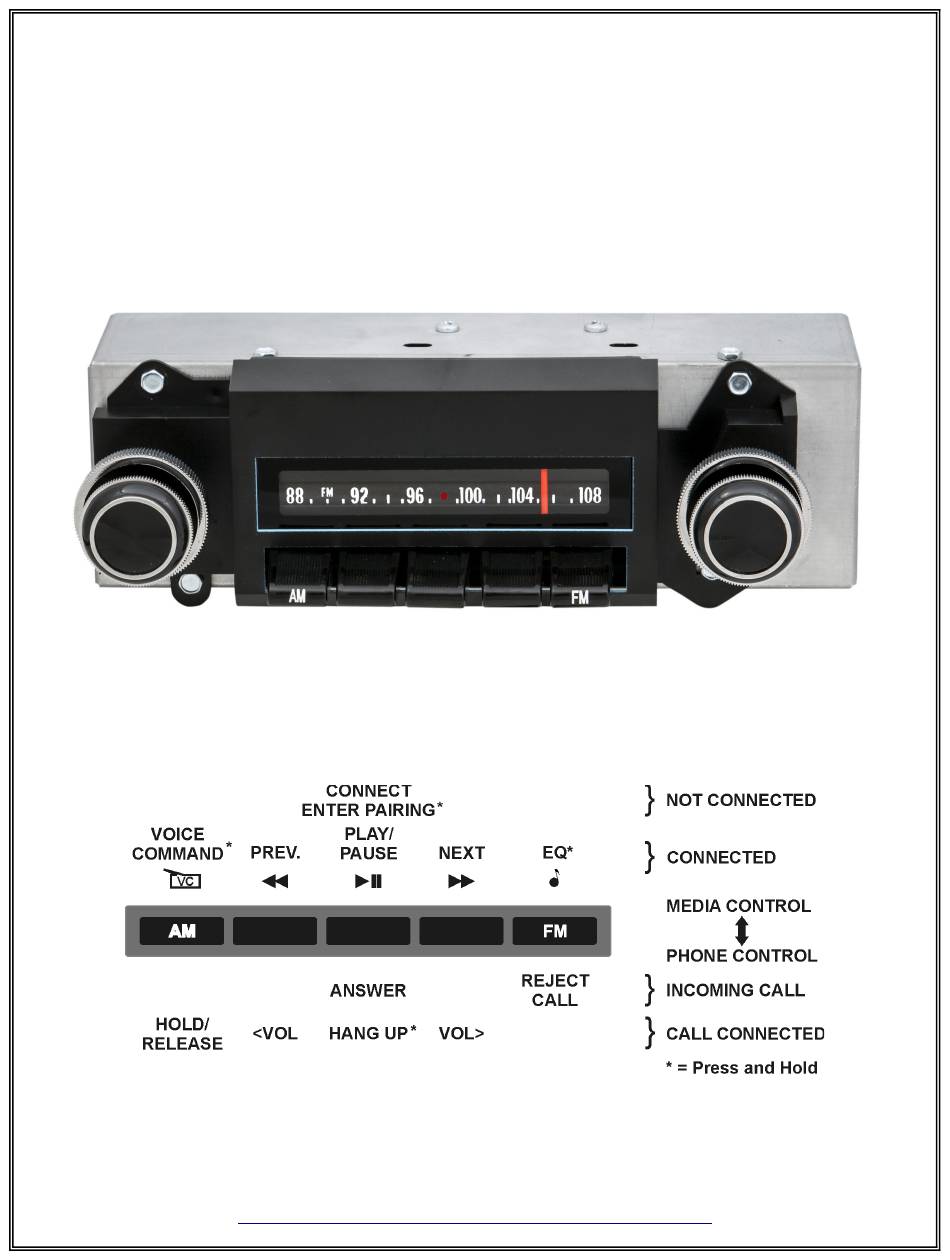

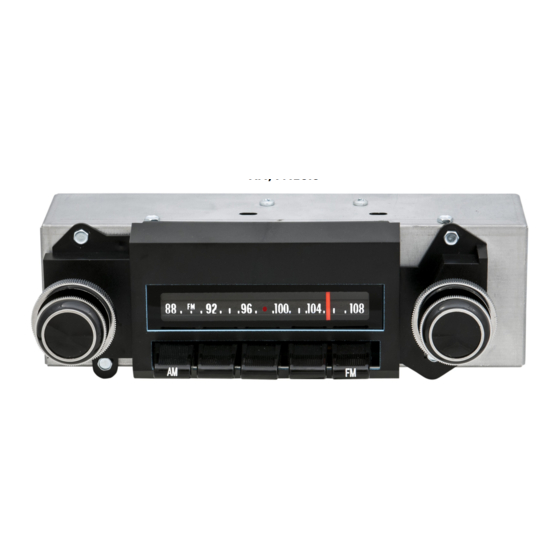

- Page 1 Release Date March 2018 1970-½ - 1977 FIREBIRD AM/FM/BLUETOOTH ® RADIO INSTALLATION OPERATING INSTRUCTIONS AM/FM10.0 Model 892201BT ANTIQUE AUTOMOBILE RADIO, INC. 700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733 For HELP, Questions or Comments email: support@radiosforoldcars.com...
- Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed to preserve the original fit, functions and appearance of your radio while providing the best of the latest digital technology. The modern features that were not available when your vehicle was new are cleverly disguised so that they are functional and easily accessible, but are not visible.
- Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See illustration below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
- Page 4 INSTALLATION The drawing below shows the correct mounting method for all Firebird dashes. Even though the radio is much smaller and lighter than the original, It will go into the dash the same way that the old one came out. To remove the original radio, remove six Phillips screws from the glove box and remove the glove box.
