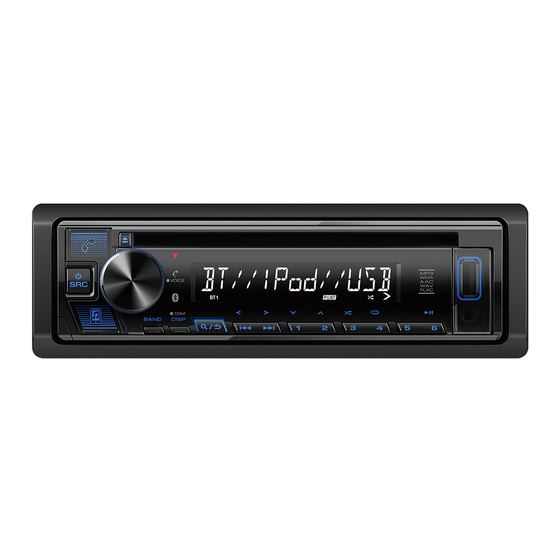

- Page 1 ProAudio PP107234 and PP107236 CD-RECEIVER INSTRUCTION MANUAL AUTORADIO CD MODE D’EMPLOI RECEPTOR CD MANUAL DE INSTRUCCIONES Brought to market by Pana-Pacific, Inc.
-
Page 2: Table Of Contents
Contents Before Use ....................3 Installation/Connection ............... 21 Basics ......................4 References ....................23 More information Getting Started ..................5 Change the display information 1 Set the clock and date 2 Set the other optional settings Troubleshooting ..................25 Radio ......................6 Specifications .................. -
Page 3: Before Use
Before Use IMPORTANT How to read this manual • To ensure proper use, please read through this manual before using this • The displays shown in this manual are examples used to provide clear product. It is especially important that you read and observe Warnings and explanations of the operations. -
Page 4: Basics
Basics Faceplate Volume knob Loading slot Display window* * Only for illustration purpose. On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source •... -
Page 5: Getting Started
Getting Started Set the other optional settings You can only set the following items while the unit is in STANDBY source. Press B SRC repeatedly to enter STANDBY. Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then press the knob. -
Page 6: Radio
Radio Getting Started [SOURCE SELECT] [SPOTIFY SRC] [ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 10) [BT AUDIO SRC] [ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. (Page 17) [BUILT-IN AUX] [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 11) •... -
Page 7: Cd/Usb/Ipod
CD/USB/iPod Radio Default: [XX] Insert a disc [TUNER SETTING] Eject disc Label side [SEEK MODE] Selects the searching method for S / T buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [AUTO MEMORY] [YES]: Automatically starts memorizing 6 stations with good reception. - Page 8 CD/USB/iPod Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives.
- Page 9 CD/USB/iPod [SKIP SEARCH] setting Select a file to play Press the volume knob to enter [FUNCTION]. From a folder or list Turn the volume knob to select [USB], then press the knob. Turn the volume knob to select [SKIP SEARCH], then press the knob. •...
-
Page 10: Spotify
Spotify You can listen to Spotify on iPhone/iPod touch (via Bluetooth or via USB On the faceplate input terminal) or Android device (via Bluetooth). Play back/pause Press 6 IW. Preparation: Skip a track Press S*1 / T. • Install the latest version of the Spotify application on your device (iPhone/ iPod touch or Android device), then create an account and log in to Select thumbs up or thumbs down *2 Press 2... -
Page 11: Aux
Spotify You can listen to music from a portable audio player via the auxiliary input Search for a song or station jack. Press Preparation: Turn the volume knob to select a list type, then press the knob. Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 6) The list types displayed differ depending on the information sent from Spotify. -
Page 12: Bluetooth
Bluetooth® • Depending on the Bluetooth version, operating system and the firmware Pair and connect a Bluetooth device for the first time version of your mobile phone, Bluetooth features may not work with this Press B SRC to turn on the unit. unit. -
Page 13: Bluetooth - Mobile Phone
Bluetooth® The following operations may differ or be unavailable depending on the Auto Pairing connected phone. When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to On the faceplate [ON]. - Page 14 Bluetooth® Improve the voice quality Make a call While talking on the phone... You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. Press the volume knob to enter [FUNCTION].
- Page 15 Bluetooth® Make a call using voice recognition [PHONE BOOK] (Applicable only if the phone supports PBAP.) 1 Turn the volume knob quickly to enter alphabet search mode (if the Press and hold to activate the voice recognition of the connected phonebook contains many contacts).
- Page 16 Bluetooth® Bluetooth mode settings [INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then press the knob.
-
Page 17: Bluetooth - Audio
Bluetooth® Bluetooth — Audio On the faceplate • Operations and display indications may differ according to their availability Random play Press and hold 3 to select [ALL RANDOM] on the connected device. or [GROUP RANDOM]. • Depending on the connected device, some features may not work with your device. -
Page 18: Audio Settings
Audio Settings [MANUAL EQ] Adjusts your own sound settings for each source. • The settings are stored to [USER] in [PRESET EQ]. • The settings made may affect the current settings of [EASY EQ]. [62.5HZ] [LEVEL] [LEVEL –9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. - Page 19 Audio Settings [SOUND EFFECT] [X ‘ OVER] [SOUND RECNSTR] (Not applicable for RADIO source and AUX source.) [TWEETER] [FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/ (Sound [ON]: Creates realistic sound by compensating the high-frequency [6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]: Adjusts the reconstruction) components and restoring the rise-time of the waveform that are lost in crossover frequency for the tweeter speaker.
-
Page 20: Display Settings
Display Settings Audio Settings Zone identification for brightness setting [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB]: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [SW LPF FRQ].) [SW LPF [REVERSE] (180°)/[NORMAL] (0°): Selects the PHASE] phase of the subwoofer output to be in line with the speaker output for optimum performance. -
Page 21: Installation/Connection
Installation/Connection Display Settings Removing the unit [DISPLAY] [DIMMER] Dims the illumination. Insert the extraction keys deeply into the slots on each side, then [ON]: Dimmer is turned on. follow the arrows as shown on the illustration. [OFF]: Dimmer is turned off. [DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer. - Page 22 Installation/Connection Wiring connection The PP107234 radio will include a wiring harness adapter for Antenna terminal standard ISO connection. Fuse (10 A) The PP107236 radio will include a wiring harness adapter for connection to Hino trucks. Hino Pin ISO Pin Color and Function Yellow (Battery wire) If no connections are made, do not let the wire come out from the tab.
-
Page 23: References
References More information General About iPod/iPhone • This unit can only play the following CDs: • Made for – iPod touch (6th generation) – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later) •... -
Page 24: Change The Display Information
References Change the display information Source name Display information: Main display STANDBY Source name/Clock Clock back to the beginning Each time you press DISP, the display information changes. • If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information RADIO Source name/Clock Frequency... -
Page 25: Troubleshooting
Troubleshooting Symptom Remedy Symptom Remedy Sound cannot be heard. • Adjust the volume to the optimum level. Playback order is not as The playback order is determined by the order in which • Check the cords and connections. intended. files were recorded (disc) or the file name (USB). “MISWIRING CHECK WIRING Turn the power off, then check to be sure the terminals of Elapsed playing time is not... - Page 26 Troubleshooting Symptom Remedy Symptom Remedy “NA FILE” Make sure the media (disc/USB) contain supported audio No Bluetooth device is • Search from the Bluetooth device again. files. (Page 23) detected. • Reset the unit. (Page 4) “COPY PRO” A copy-protected file is played (disc/USB). Bluetooth pairing cannot •...
-
Page 27: Specifications
Specifications Troubleshooting Symptom Remedy Frequency Range 87.9 MHz — 107.9 MHz (200 kHz step) “NOT SUPPORT” The connected phone does not support Voice Recognition Usable Sensitivity 8.2 dBf (0.71 μV/75 Ω) feature or phonebook transfer. (S/N = 30 dB) “NO ENTRY” There is no registered device connected/found via Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) - Page 28 Specifications USB Standard USB 1.1, USB 2.0 (High speed) Maximum Output Power 50 W × 4 File System FAT12/16/32 Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Maximum Supply Current DC 5 V 1.5 A Speaker Impedance 4 Ω...
- Page 29 FCC CAUTION Información acerca de la eliminación de equipos eléctricos y electrónicos al final de la vida Changes or modifications not expressly approved by the party responsible for compliance could void the útil (aplicable a los países que hayan adoptado sistemas independientes de recogida de user’s authority to operate the equipment.
- Page 30 ISED CAUTION CAUTION This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio conditions: frequency (RF) Exposure rules.
- Page 31 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is Any and all copyrights and other rights pertaining to the Licensed Software and related documents copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or which Users shall follow in order to use the Licensed Software.
- Page 32 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. -jansson Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
- Page 33 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
- Page 34 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum Author: Chris G. Demetriou (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, BSD-3-Clause provided that both the copyright notice and this permission notice appear in all copies of the software, Copyright (c) 2000-2001, Aaron D.
- Page 35 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
