- Page 1 ProAudio PP107233 CD-RECEIVER INSTRUCTION MANUAL AUTORADIO CD MODE D’EMPLOI RECEPTOR CD MANUAL DE INSTRUCCIONES Brought to market by Pana-Pacific, Inc.
-
Page 2: Table Of Contents
Contents Before Use ....................3 How to read this manual • The displays and faceplates shown in this manual are examples used to Basics ......................4 provide clear explanations of the operations. For this reason, they may Getting Started ..................5 be different from the actual displays or faceplates. -
Page 3: Before Use
Before Use IMPORTANT Remote control (RC-406): • To ensure proper use, please read through this manual before using this • Do not leave the remote control in hot places such as on the dashboard. product. It is especially important that you read and observe Warnings and •... -
Page 4: Basics

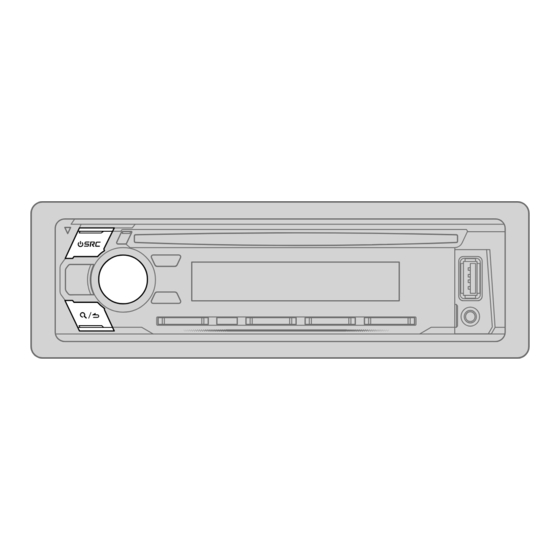

Basics Faceplate Volume knob Loading slot Display window* * Only for illustration purpose. On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source Press B SRC repeatedly. -
Page 5: Getting Started
Getting Started Basics Remote control (RC-406) Remote sensor (Do not expose to bright sunlight.) Set the clock and date Pull out the insulation sheet when using for the first time. Press the volume knob to enter [FUNCTION]. Turn the volume knob to select [CLOCK], then press the knob. * Not used. -
Page 6: Set The Other Optional Settings
Getting Started [SOURCE SELECT] Set the other optional settings [BUILT-IN AUX] [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 11) You can only set the following items while the unit is in STANDBY source. [CD READ] [1]: Automatically distinguishes between audio file disc and music CD. ; Press B SRC repeatedly to enter STANDBY. -
Page 7: Radio
Radio Direct Access Tuning (using the remote control) Press DIRECT to enter Direct Access Tuning. Press the number buttons to enter a station frequency. Press ENT IW to search for a station. • To cancel, press or DIRECT. • If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled. -
Page 8: Cd/Usb/Ipod
CD/USB/iPod Insert a disc Basic operation Eject disc Label side The source changes to CD automatically and playback starts. • For playable audio file, see “Playable files” on page 16. Connect a USB device • To directly select USB/iPod source, press iPod USB. USB input terminal USB cable* On the faceplate... - Page 9 CD/USB/iPod Select music drive Select control mode While in iPod source, press iPod USB repeatedly. While in USB source, press iPod USB repeatedly. [MODE ON]: Control iPod/iPhone using the iPod/iPhone itself. However, you Stored songs in the following drive will be played back. can still perform play/pause, file skip, fast-forward or fast-reverse •...
- Page 10 CD/USB/iPod Skip search Turn the volume knob to select the character. (applicable only for iPod source) • Select “ ” to search for a character other than A to Z, 0 to 9. If you have many files in the selected list, you can perform the following to Press to move to the entry position.
-
Page 11: Aux
Audio Settings You can listen to music from a portable audio player via the auxiliary input jack. Preparation: Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 6) Start listening Press the volume knob to enter [FUNCTION]. Connect a portable audio player (commercially available). Turn the volume knob to select an item (see the following table), then Auxiliary input jack press the knob. - Page 12 Audio Settings [EQ PRO] Adjusts your own sound settings for each source. [LPF SUBWOOFER] [THROUGH]: All signals are sent to the subwoofer. ; [85HZ]/[120HZ]/ • The settings are stored to [USER] in [PRESET EQ]. [160HZ]: Audio signals with frequencies lower than 85 Hz/120 Hz/ 160 Hz are sent to the subwoofer.
-
Page 13: Display Settings
Display Settings Zone identification for brightness settings Default: [XX] [DISPLAY] [DIMMER] Dims the illumination. [ON]: Dimmer is turned on. [OFF]: Dimmer is turned off. [DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. -
Page 14: Installation/Connection
Installation/Connection Installing / Removing the unit Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. ENGLISH... - Page 15 Installation/Connection Wiring connection Rear/subwoofer output Fuse (10 A) Antenna terminal Color and function (for ISO connectors) Yellow (Battery wire) If no connections are made, do not let the wire come out from the tab. : Ignition (ACC) Blue/White*1 : Power control STEERING WHEEL Light blue/yellow Red (Ignition wire)
-
Page 16: References
References More information General About USB devices • This unit can only play the following CDs: • You cannot connect a USB device via a USB hub. • Connecting a cable whose total length is longer than 5 m may result in abnormal playback. •... -
Page 17: Change The Display Information
Troubleshooting References Change the display information Symptom Remedy Sound cannot be heard. • Adjust the volume to the optimum level. Each time you press DISP, the display information changes. • Check the cords and connections. • If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. - Page 18 Troubleshooting Symptom Remedy Muting upon the reception of a phone call Playback order is not as The playback order is determined by the order in which Connect the MUTE wire to your telephone using a commercial intended. files were recorded (disc) or the file name (USB). telephone accessory.
-
Page 19: Specifications
Specifications FM Frequency Range 87.9 MHz — 107.9 MHz (200 kHz space) USB Standard USB 1.1, USB 2.0 (Full speed) Usable Sensitivity 8.2 dBf File System FAT12/16/32 (S/N = 26 dB) (0.71 μV/75 Ω) Maximum Supply Current DC 5 V 1.0 A Quieting Sensitivity 17.2 dBf... - Page 20 FCC CAUTION Información acerca de la eliminación de equipos eléctricos y electrónicos al final de la vida Changes or modifications not expressly approved by the party responsible for compliance could void the útil (aplicable a los países que hayan adoptado sistemas independientes de recogida de user’s authority to operate the equipment.
- Page 21 SOFTWARE LICENSE AGREEMENT Article 3 Conditions for Grant of License The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is 1. When the User transfers the Product, it may also transfer the license to use the Licensed Software copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions embedded in the Product (including any related materials, updates and upgrades) on condition that which Users shall follow in order to use the Licensed Software.
- Page 22 Article 7 Confidentiality Article 11 Export Restriction The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof 1. It is prohibited to export the Licensed Software and any related documents outside the country or any other information to be granted under this Agreement, as well as the conditions of this Agreement of the User (including transmission thereof outside the country of the User via Internet of other as has not yet entered the public domain, and shall not disclose or divulge the same to any third party communication tools).
- Page 23 Important Notice concerning the Software THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, -cJSON OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS...
- Page 24 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
