ASUSTeK
COMPUTER INC.
Rev. Modification
English
Purpose :
This SOP is separated into three parts : (1)Overview (2)Disassembly (3)Assembly
This purpose of this SOP is to help engineer assembly & disassembly more easily
( 1 ) Overview

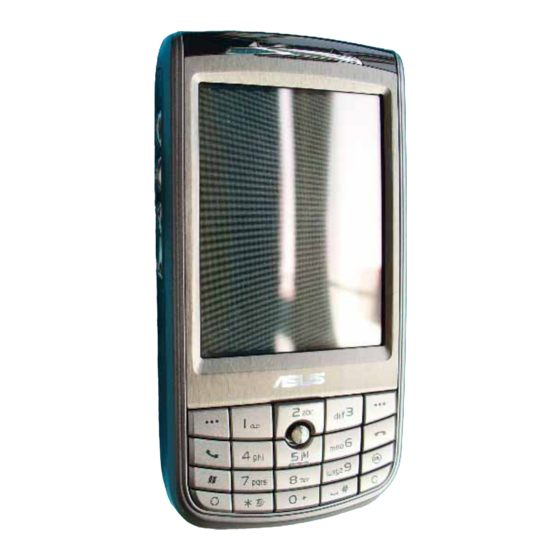

1. Top site
Authorize
by
All manuals and user guides at all-guides.com
P525 Assembly & Disassembly
SOP
Modify description
Review
by
Doc. No:
Date: 2006.04.19
Revision:
Page:
Issue div.
2. Bottom site
Ori
ginator
Jacky
by
Form No : D2-001-11 Rev.01
Grade:
Originator
Jacky

Advertisement

loading
Need help?

Need help?

Do you have a question about the P525 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASUSTeK COMPUTER P525

  • Page 1 All manuals and user guides at all-guides.com Doc. No: Date: 2006.04.19 ASUSTeK P525 Assembly & Disassembly Revision: COMPUTER INC. Page: Grade: Rev. Modification Modify description Issue div. Originator English Jacky Purpose : This SOP is separated into three parts : (1)Overview (2)Disassembly (3)Assembly This purpose of this SOP is to help engineer assembly &...
  • Page 2: Disassembly Tools

    All manuals and user guides at all-guides.com P525 Assembly & Disassembly (2) Disassembly Disassembly Tools Item Part Name Tweezers 16-000600014 Screwdriver ( T5 ) 16-T00362002 PLASTIC WRENCH 13GV0400PZZZ 1. Remove SD card...
  • Page 3 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 2.Remove Stylus 3.Remove Battery cover...
  • Page 4 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 4.Remove Battery...
  • Page 5 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 6 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 5.Remove SIM card 6. Remove antennal cover...
  • Page 7 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 8 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 9 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 7. Remove 4 screws...
  • Page 10 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 8. Remove Flash LED(with board)
  • Page 11 All manuals and user guides at all-guides.com P525 Assembly & Disassembly Caution : stick 9. Remove bottom cover...
  • Page 12 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 13 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 14 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 10.Remove main board 2 screws...
  • Page 15 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 11. Remove LCD connector mylar 12. Open LCD connector cover 13. Remove LCD FPC...
  • Page 16 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 14. Remove the main board module...
  • Page 17 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 15. Remove keypad...
  • Page 18 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 16. Remove LCD module...
  • Page 19 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 20 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 17. Remove receiver...
  • Page 21 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 18. Remove speaker...
  • Page 22 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 23 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 19. Remove vibrator...
  • Page 24 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 20. Remove FILM . TAPE CAM B2B & camera module...
  • Page 25 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 21. Remove IR board...
  • Page 26 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 27 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 22.Remove button...
  • Page 28 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 29 All manuals and user guides at all-guides.com P525 Assembly & Disassembly (3) Assmble 1. Assmble botton...
  • Page 30 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 2. Assmbly IR board...
  • Page 31 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 32 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 3. Assmbly camera. First change new FILM & TAPE.
  • Page 33 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 34 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 4. Assmbly vibrator...
  • Page 35 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 5. Assmbly speaker...
  • Page 36 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 6. Assmbly receiver...
  • Page 37 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 7. Assmbly LCD...
  • Page 38 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 39 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 8. Assmbly keypad 9. Assmbly main board module...
  • Page 40 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 41 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 10. Assmbly LCD FPC 11. Assmbly LCD connector cover 12. Assmbly LCD connector mylar 13. Assmbly 2 screws...
  • Page 42 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 14. Assmbly bottom cover...
  • Page 43 All manuals and user guides at all-guides.com P525 Assembly & Disassembly Attention : sidekey button...
  • Page 44 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 45 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 46 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 15. Assmbly Flash LED(with board) Caution: stick...
  • Page 47 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 16. Assmbly 4 screws...
  • Page 48 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 17. Assmbly antennal cover...
  • Page 49 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 50 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 51 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 18. Insert SIM card 19. Assmbly battery...
  • Page 52 All manuals and user guides at all-guides.com P525 Assembly & Disassembly...
  • Page 53 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 20. Assmbly battery cover...
  • Page 54 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 21. Assmbly Stylus...
  • Page 55 All manuals and user guides at all-guides.com P525 Assembly & Disassembly 22. Insert Mini SD card 23. Complete.
