Summary of Contents for PCB Piezotronics ICP 130A24
- Page 1 Model 130A24 ICP® Electret Array Microphone Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
-
Page 4: Table Of Contents
OPERATING GUIDE FOR 130 SERIES MICROPHONES Contents: 1.0 Introduction ....... 1 2.0 Product Description ....1 3.0 Powering ........2 130E20 4.0 Installation and Operation ..3 5.0 Calibration ......... 4 6.0 Service ........6 7.0 Warranty ........6 130E21 130A23 130E22 130A24... -
Page 5: Powering

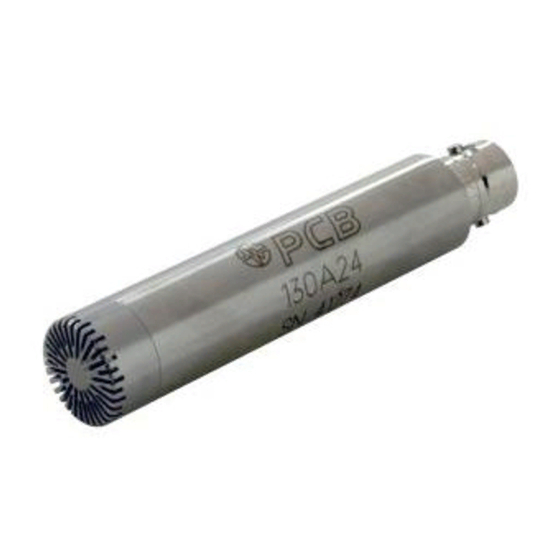

The 130E20, 130E21, 130E22, 130A23 and 130A24 Microphones (Figure 1) are all Array Microphones with integral preamplifiers. These Microphones are 7mm in diameter and have a dynamic range of up to 150dB before clipping occurs, depending on the model. The 130A24 is a rugged microphone that is water/dust resistant and 13mm in diameter. -
Page 6: Installation And Operation
normal operation and a “red” reading indicates a short circuit (example: a shorted cable). The signal conditioner provides a zero-based, AC-coupled, output signal that is compatible with most standard readout devices. Many FFT analyzers, data acquisition modules, and data collectors have the proper constant- ... -
Page 7: Calibration
The 130A24 microphone design includes a removable grid cap and replaceable protective cover. This unique feature allows the 130A24 to withstand harsh environments while extending the lifespan of the microphones’ critical sensitive components. Should the water and dust resistant cover get damaged due to prolonged exposure to harsh conditions, a removable grid cap Figure 4 allows the user to replace this protective cover quickly and easily... - Page 8 Calibration ratios for these types of devices are limited to 1:1. 5. See M anufacturer’s Specification Sheet for a detailed listing of performance specifications. 6. This certificate shall not be reproduced, except in full, without written approval from PCB Piezotronics, Inc 7. Calibrated per ACS-21.
-
Page 9: Service
(716-684-0001) to discuss your immediate dynamic instrumentation needs with a PCB Application Engineer. 7.0 Warranty All equipment and repair services provided by PCB Piezotronics, Inc. are covered by a limited warranty against defective material and workmanship for a period of one year. Visit www.PCB.com for a complete statement of our warranty. - Page 10 Model Number Revision: A Preliminary ICP® ELECTRET ARRAY MICROPHONE 130A24 ECN #: 44113 Performance ENGLISH OPTIONAL VERSIONS Nominal Microphone Diameter 1/2" 1/2" Optional versions have identical specifications and accessories as listed for the standard Frequency Response Characteristic(at 0° incidence) Free-Field Free-Field model except where noted below.
- Page 11 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. UPDATE TO REFLECT CURRENT HOUSING DESIGN 44113 .52 [13.2] 2.75 [69.9]...
