Summary of Contents for Plasma Air AutoClean 1560

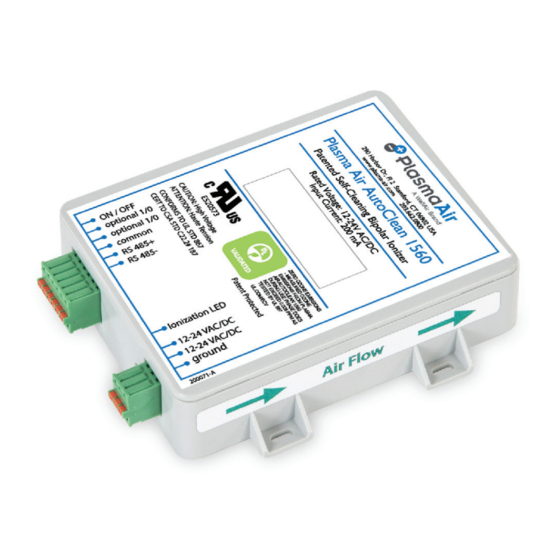

- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL Plasma Air AutoClean 1560 11/2021 www.plasma-air.com...
- Page 2 RTUs, PTACs, mini-splits, fan coil units and VRF systems. The AutoClean 1560 includes a BAS terminal block for status and control. Unit accepts 12-24V AC/DC without the use of an external power supply. The AutoClean 1560 is UL 2998 validated for zero ozone emissions.
- Page 3 (6 foot leads by Plasma Air) FIGURE 3 OPTIONAL BMS INTERFACE INSTALLATIONS The AutoClean 1560 has the following optional wiring features (wiring and BMS controller by others): BMS Compatible Status Output (On/Off Pin 1), See Figure 4. The status output is connected to the input of a BMS controller that is setup to detect a dry contact.
- Page 4 Verify that the supply fan is running to initiate operation, and that the orange LED illuminates. If the LED is green, and cleaning cycle is not active (wait afew minutes), contact Plasma Air for further support. ZERO OZONE EMISSIONS -...
