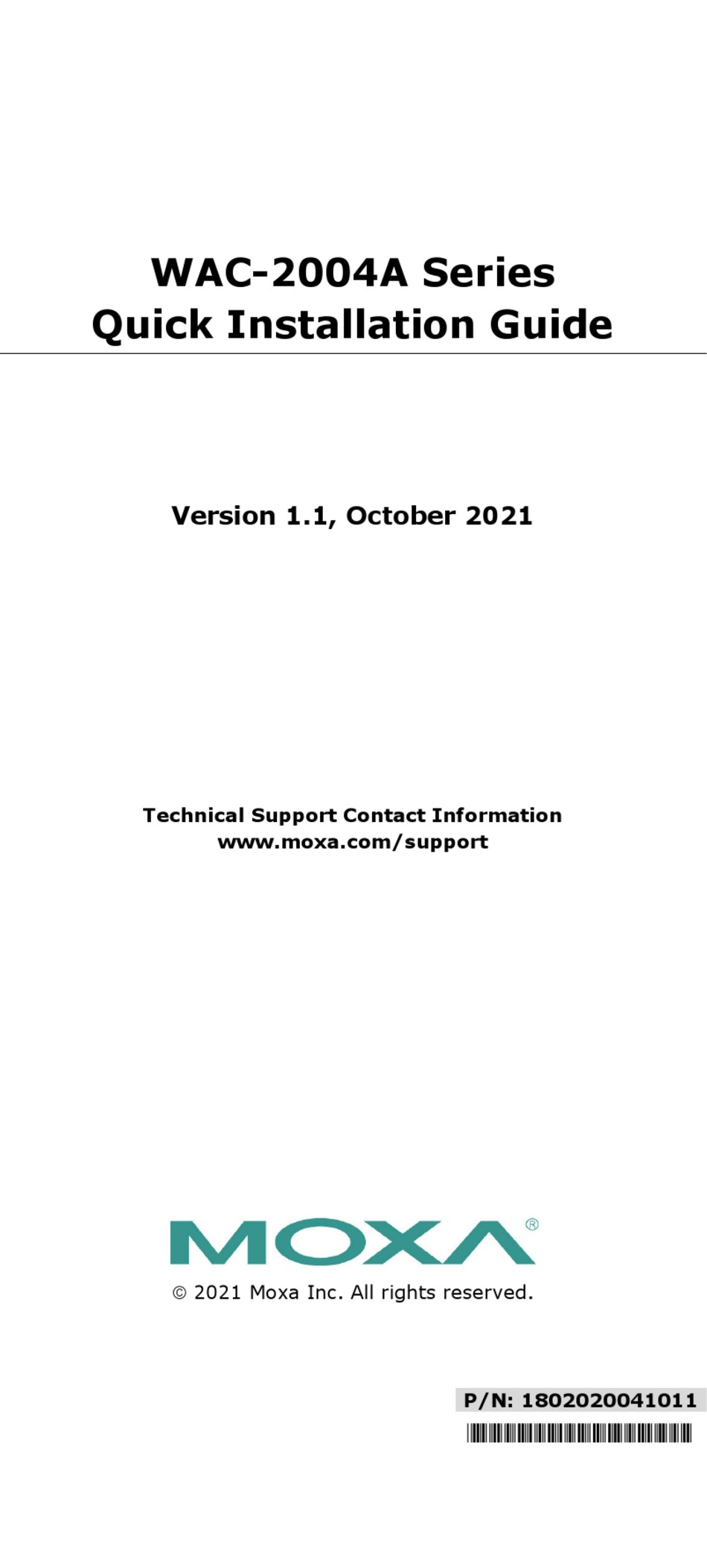

- Page 1 WAC-2004A Series Quick Installation Guide Version 1.1, October 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802020041011 *1802020041011*...
-
Page 2: Package Checklist
50°C and is rugged enough for on-site installation in any harsh industrial environment. Package Checklist The WAC-2004A Series wireless access controller is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative. -
Page 3: Back Panel View
Panel Layout of the WAC-2004A Series Front Panel View Back Panel View 1. Rackmount kit 2. LAN 1: 10/100/1000BaseT(X) (RJ45 type) LAN 2: Reserved for future expansion (RJ45 type) 3. RS-232 console port (DB9-type, male) 4. Reset button (reset power immediately) 5. -
Page 4: Mounting Dimensions
Mounting Dimensions Rackmount Use six screws to attach the WAC-2004A to a standard rack. - 4 -... - Page 5 Grounding the WAC-2004A Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground wire from the ground screw on the rear side (shown below) to the grounding surface prior to connecting devices. ATTENTION If protective earthing is used as a safeguard, the instructions shall require connection of the equipment protective earthing...
-
Page 6: Pin Assignments
ATTENTION Please make sure the switch on the PWR1 and PWR2 connectors on the back of the WAC-2004A are turned off before connecting the power cords and physically installing the device. Pin Assignments Gigabit Ethernet Port Connection The WAC-2004A provides 1 Gigabit Ethernet connector (LAN 1) and 1 reserved Ethernet connector (LAN 2) for future expansion. -
Page 7: Front Panel Leds
Front Panel LEDs Color State Description Front Panel LED Indicators (System) Power is being supplied from power input 1. PWR1 Green Power is not being supplied from power input 1. Power is being supplied from power input 2. PWR2 Green Power is not being supplied from power input 2. -
Page 8: Specifications
Specifications Technology Standards IEEE 802.11i for Wireless Security IEEE 802.3 for 10Base5 IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT Security WPA/WPA2 (IEEE 802.1X/RADIUS, TKIP and AES) Protocol Support General Protocols ARP, DNS, HTTP, HTTPS, ICMP, IP, LLDP, Proxy ARP, RADIUS, SMTP, SNMP, SNTP, SSH, SYSLOG, TCP, TELNET, TFTP, UDP Interface AC Power Sockets... - Page 9 IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 100 A/m Green Product RoHS, CRoHS, WEEE *Please check Moxa’s website for the most up-to-date certification status. WARRANTY 5 years See http://www.moxa.com/warranty ATTENTION The WAC-2004A is NOT designed for use by the general public. A well-trained technician is required to safely deploy the WAC- 2004A.
