Eurotronic Air Quality Sensor Quick Start Manual

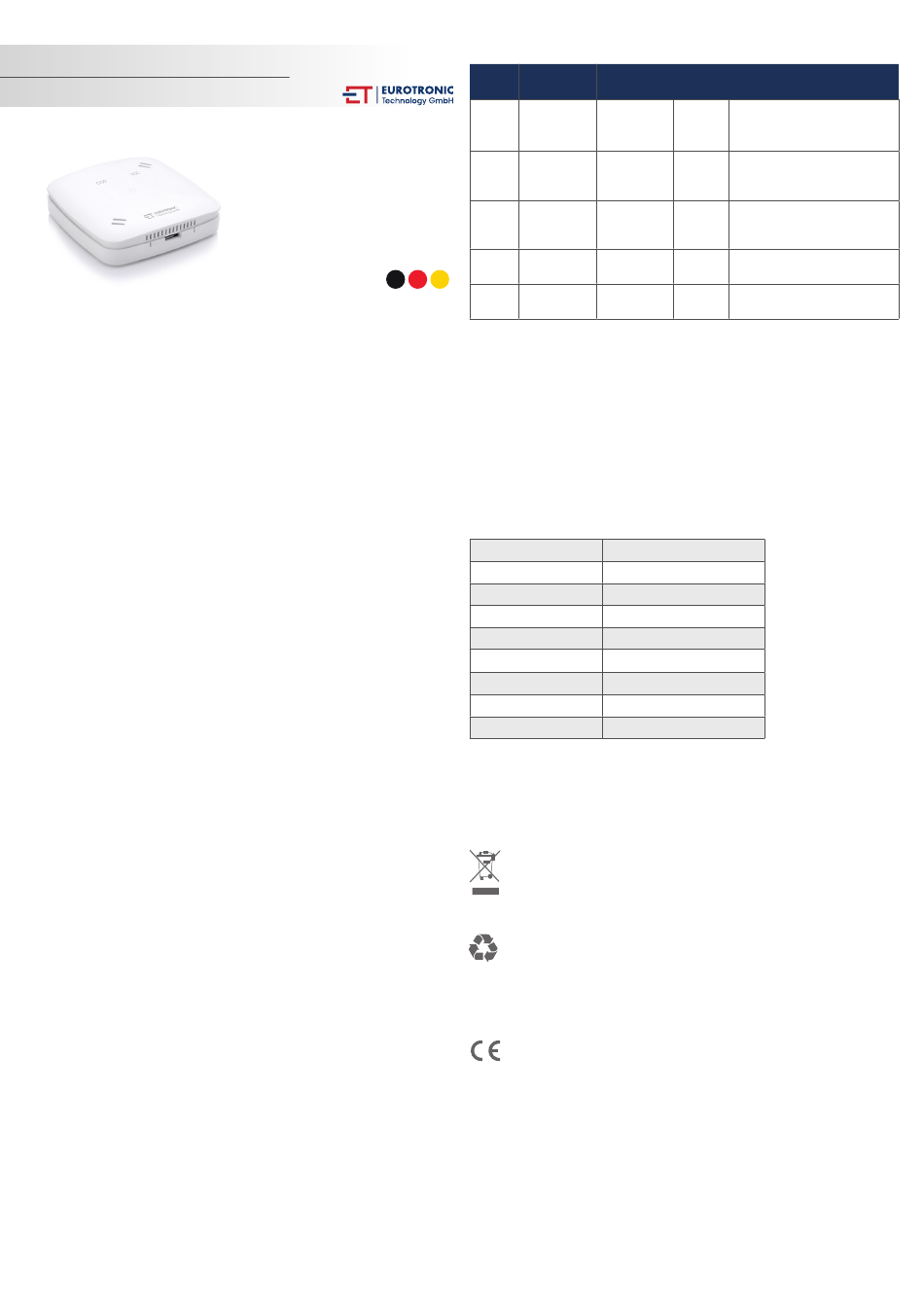

Air Quality Sensor
Quick Start Guide
WARNING AND SAFETY INSTRUCTIONS
Safety Instructions
- The Air Quality Sensor is designed for use in buildings.
- Operate the Air Quality Sensor only as described in the user manual.
- The Air Quality Sensor should only be put to use in a dry and dust-free place,
away from direct sunlight.
- Do not keep using the device when there is obvious damage.
- The Air Quality Sensor may not be rebuilt, modified or opened.
- The Air Quality Sensor is not to be used as a gas measuring instrument.
WARNING! RISK OF INJURY!
When children play with the thermostat or packaging, they might swallow small
parts and suffocate.
Do not let children play with the thermostat or packaging.

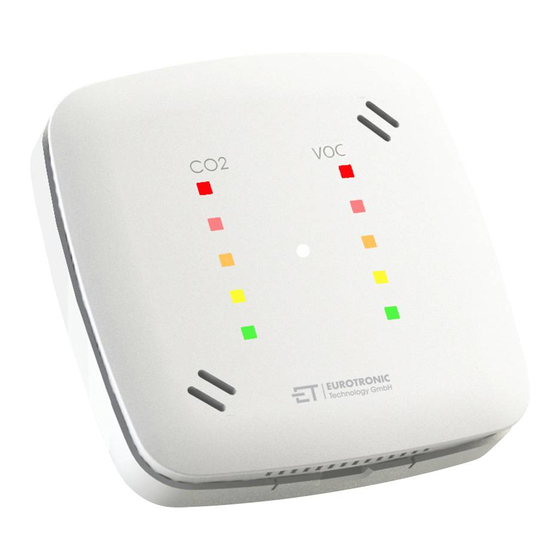

PRODUCT DESCRIPTION
By means of a complex algorithm, an air quality value based on CO
determined from a sum signal of all determined gases and is displayed as a clear
traffic light according to a WHO-compliant scale. While a „very good room air"
(<600 ppm) is indicated by means of a green LED, a red LED warns, if a room needs
to be ventilated urgently.
In addition, the modern metal oxide sensor also measures the VOC value,
interprets it and displays the value as a traffic light. VOC stands for the English
term „volatile organic compounds". They are gaseous or vaporous substances
that contain carbon. Volatile organic compounds are found for example in cleaning
products, disinfectants, care products (e.g. deodorant or perfume) and building
materials (e.g. paints and varnishes).
This only makes the product an „air quality sensor" and signals poor air quality
even where simple CO -sensors fail.
2
COMMISSIONING
Connect the micro-USB-cable to the plug-in power supply (1A, 5V) and to the Air
Quality Sensor and afterwards to a power outlet. For optimal performance please
use the products which are part of the delivery scope.
When the unit is switched on, the Air Quality Sensor is doing a self-test:
- Self-test: Both LED bars run simultaneously two times from the bottom to the top
- Sensor-check: each LED bar is blinking two times
- Buzzer-test: 3 short clicks of the buzzer
IMPORTANT NOTE:
When using the air quality sensor, make sure that the sensor is not disconnected
from the power supply, because the first 12 hours of operation the sensor learns
your corresponding room profile and also resulting air quality variations via a self-
calibrating algorithm.
After these 12 hours, the sensor guarantees you precise measurement results.
If the power supply is interrupted, this calibration process starts again.
Please also make sure that the room, in which the air quality sensor is operated, is
ventilated vigorously at least once a week.
This is important for the learning algorithm of the sensor.
Contact Information Customer Service
Eurotronic Technology GmbH
Südweg 1 | 36396 Steinau-Ulmbach
Telephone: +49 (0) 6667 91847-0
E-Mail: info@eurotronic.org
Internet: www.eurotronic.org
Made in Germany
-equivalent is
2
MEANING OF THE COLOURED LEDS
Colour CO in ppm VOC in ppb
2
Dark > 3000 > 2200
red
Bright 1800-3000 1600-2200
red (acoustic
signal starts)
Orange 1000-1800 1000-1600
Yellow 600-1000 500 - 1000
Green 0 - 600 0 - 500
NOTE
If the CO value does not improve, the acoustic signal sounds again.
2
The VOC value is only displayed visually (without an acoustic signal).
ACTIVATE / DEACTIVATE ACOUSTIC SIGNAL
To permanently deactivate the acoustic signal for CO
of the device pressed for 30 seconds. After successful deactivation of the acoustic
signal, the LEDs of the two bars run down once. By pressing the button again for 30
seconds, the acoustic signal can be reactivated at any time. After the acoustic signal
has been successfully activated, the LEDs of the two bars go up once.
TECHNICAL SPECIFICATION
Article Air Quality Sensor
EAN 4260012712148
Article Number 700209
Supply Voltage Plug-in power supply
Sensor Type MOS VOC / CO2-eq
Dimensions 68 x 68 x 17 mm
Weight 48 g
Degree of protection IP20
Degree of pollution 2
Technical modifications are subject to change. All descriptions for compatibility are
without engagement.
LEGAL NOTICE
Environmental Protection:
From the date of implementation of European guidelines 2012/19/EU into national
law, the following applies: Electric and electronic devices may not be
disposed of in house-hold waste. The consumer is obliged to return electric
and electronic devices to the public collection points established for them
or to the point of sale. Details are regulated by the respective national law.
Dispose of Packaging:
Dispose of the packaging sorted by type. Add paperboard and cardboard to
the waste paper, foils to the recyclables collection.
The symbols on the product, the instruction manual or the packaging refer
to these regulations. By recycling, material utilisation or other forms of utilisation
of old devices, you make an important contribuation to the protection of our
environement.
Delaration of conformity:
Hereby, Eurotronic Techology GmbH declares that the Air Quality Sensor is
in compliance with Directive 2014/53/EU. The full text of the EU declaration
of confirmity is available at the following internet address: https://eurotronic.org.
org/service/downloads/.
Warranty:
The 24-months warranty period begins at the day of purchase. Please keep the
receipt as evidence of purchase. During the warranty period, defective products
may be sent to your dealer or the address above. Please ensure sufficient postage
is paid. A new or repaired device will then be sent to you free of charge. No new
warranty period begins with the repair or replacement of the device.
After the warranty period has expired, you also have the option of sending the
defective device to the specified address with sufficient postage for repair.
Repairs after the warranty period have expired are subject to a charge. Your
statutory rights are not limited by this warranty.
Air Recommendations
Quality
unaccep- It must be ventilated immediately.
table Use room only when unavoidable.
low Increased ventilation is absolutely
necessary.
medium Ventilation is necessary. Check and
improve ventilation behaviour.
good No relevant concerns. Regular
ventilation is recommended.
very good No concerns. No action necessary.
, keep the button on the back
2
