Tripp Lite DMCSP4560HDS Owner's Manual

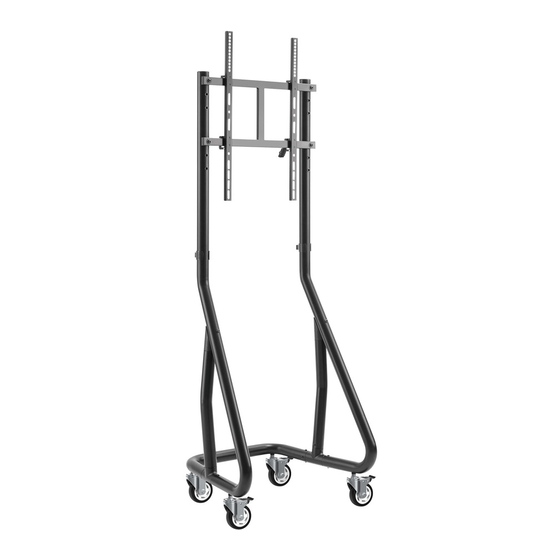

Heavy-duty streamline portrait mobile cart
Hide thumbs Also See for DMCSP4560HDS:

Advertisement

Quick Links

Download this manual
Owner's Manual
200 x 200/300 x 200
300 x 300/400 x 200
400 x 300/400 x 400
600 x 400
Este manual esta disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Heavy-Duty
Streamline Portrait
Mobile Cart
Model: DMCSP4560HDS
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR
PROPERTY DAMAGE MAY OCCUR!
60"
MAX
®
