Weatherly Collection

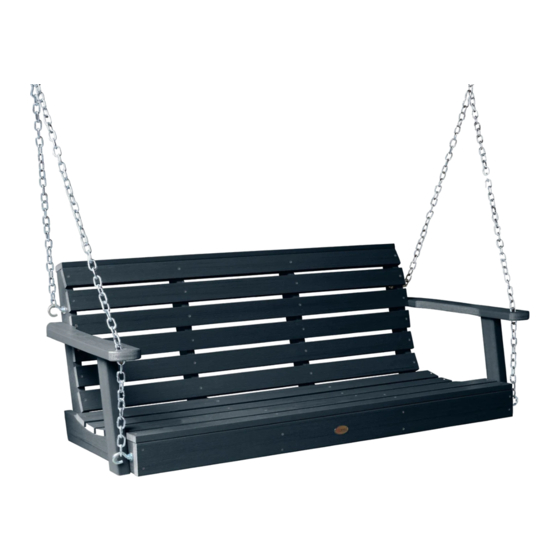

Weatherly Porch Swing
Assembly Guide
IMPORTANT!
DO NOT fully tighten the bolts until all bolts are started.
Once all bolts are inserted, go back & tighten all the bolts.
HARDWARE INCLUDED
A
1/4-20 x 1.5"
B
1/4-20 x 2"
**
Chain Attachment Kit
5/16-18 x 2" Eyebolt - Qty: 4
5/16-18 Nylon Lock Nut - Qty: 4
5/16 Flat Washer - Qty: 4
HDK-CHAINLONG - Qty: 2
HDK-CHAINSHORT - Qty: 2
Chain Link Connector - Qty: 2
SEAT
Qty: 10
Qty: 4
BACK
For information on Care and Cleaning or to Register your
highwood product, please visit www.highwood-usa.com.
TOOLS INCLUDED
CUSTOMER SUPPLIED TOOLS
1/2" or 13mm Wrench/Socket
STEP 1 BACK OUTER
Attach Back to Seat using
(2) A Bolts on each side.
A
5/32" HEX KEY
AD-PORW1|AD-PORW2
03.12.21
PAGE 1 OF 2
