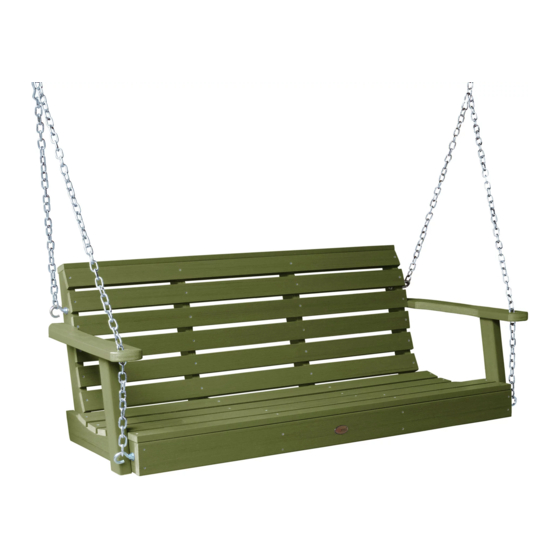

Weatherly Porch Swing
Assembly Guide
BACK
SEAT
1) Attach Back To Seat Using Eight "A" Bolts as Shown.
highwood
NATURE'S CLOSEST RIVAL
A
A
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
A
B
C
A
HARDWARE
x 10
1/4"-20 X 1.5"
1/4"-20 X 2"
x 2
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
PORW1/2
10.21.2016
x 4
PAGE 1 OF 2
