Lehigh Porch Swing
Assembly Guide
IMPORTANT!
DO NOT fully tighten the bolts until all bolts are started.
Once all bolts are inserted, go back & tighten all the bolts.
HARDWARE INCLUDED
A
1/4-20 x 1.5"
B
1/4-20 x 2"
C
1/4-20 x 3"
**
Chain Attachment Kit
5/16-18 x 2" Eyebolt - Qty: 4
5/16-18 Nylon Lock Nut - Qty: 4
5/16 Flat Washer - Qty: 4
HDK-CHAINLONG - Qty: 2
HDK-CHAINSHORT - Qty: 2
Chain Link Connector - Qty: 2
BACK
SEAT
Qty: 6
Qty: 8
A
For information on Care and Cleaning or to Register your
highwood product, please visit www.highwood-usa.com.
Qty: 2
CUSTOMER SUPPLIED TOOLS
1/2" or 13mm Wrench/Socket
TOOLS INCLUDED
5/32" HEX KEY
STEP 1 BACK
Attach Back to Seat using
(2) A Bolts on each side.
AD-PORL1|AD-PORL2
02.26.21
PAGE 1 OF 2
Advertisement
Related Manuals for highwood Lehigh AD-PORL1
Summary of Contents for highwood Lehigh AD-PORL1

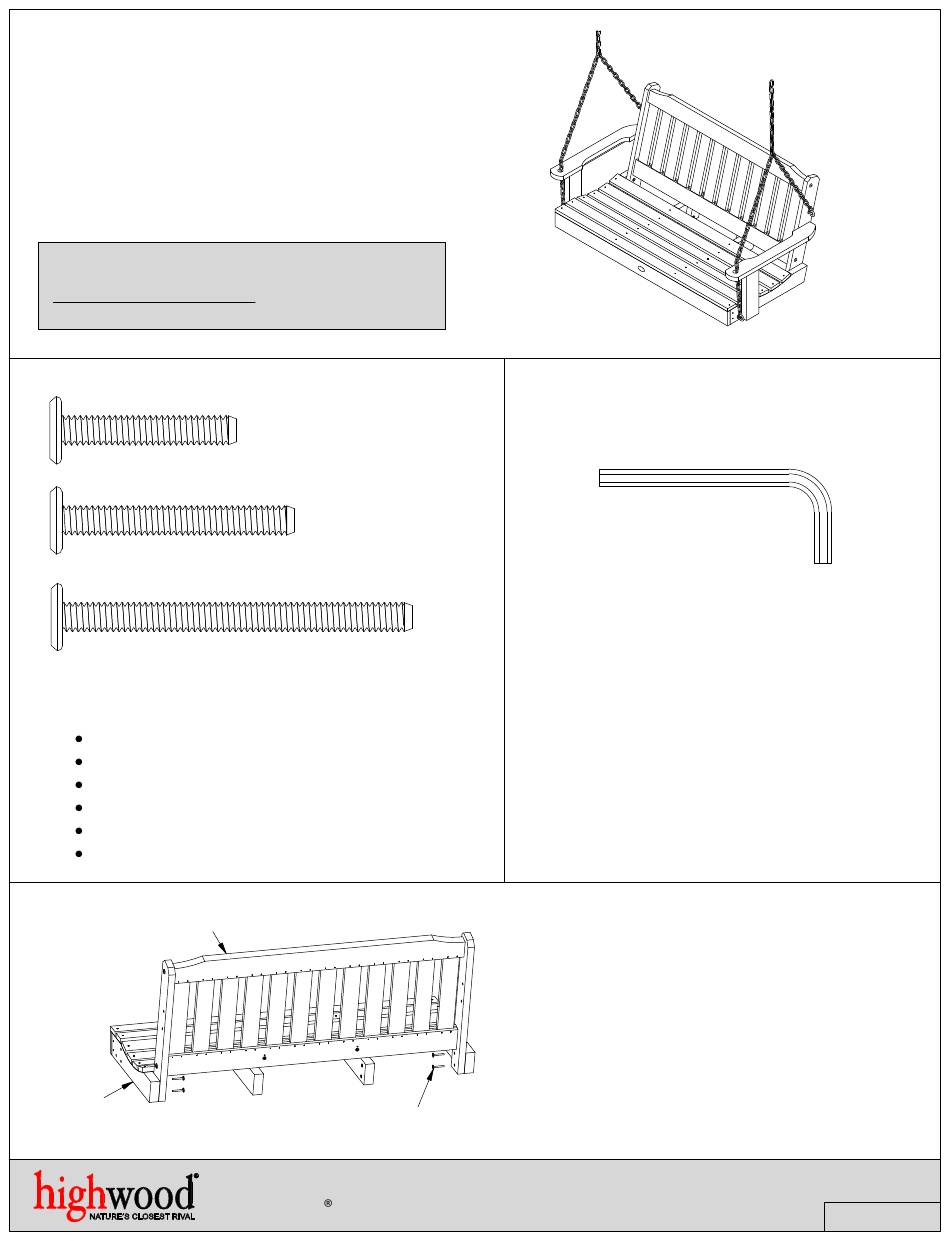

- Page 1 Chain Link Connector - Qty: 2 BACK STEP 1 BACK Attach Back to Seat using (2) A Bolts on each side. SEAT AD-PORL1|AD-PORL2 For information on Care and Cleaning or to Register your 02.26.21 highwood product, please visit www.highwood-usa.com. PAGE 1 OF 2...
