Connecting Your A90 Elevation Module

Now, run speaker wire from any compatible Atmos or DTS:X receiver binding posts (often titled HEIGHT) to the top

set of binding posts (titled: HEIGHT) on the bottom, rear side of your BP9000 speakers. Be sure to match + to +,

and – to -.

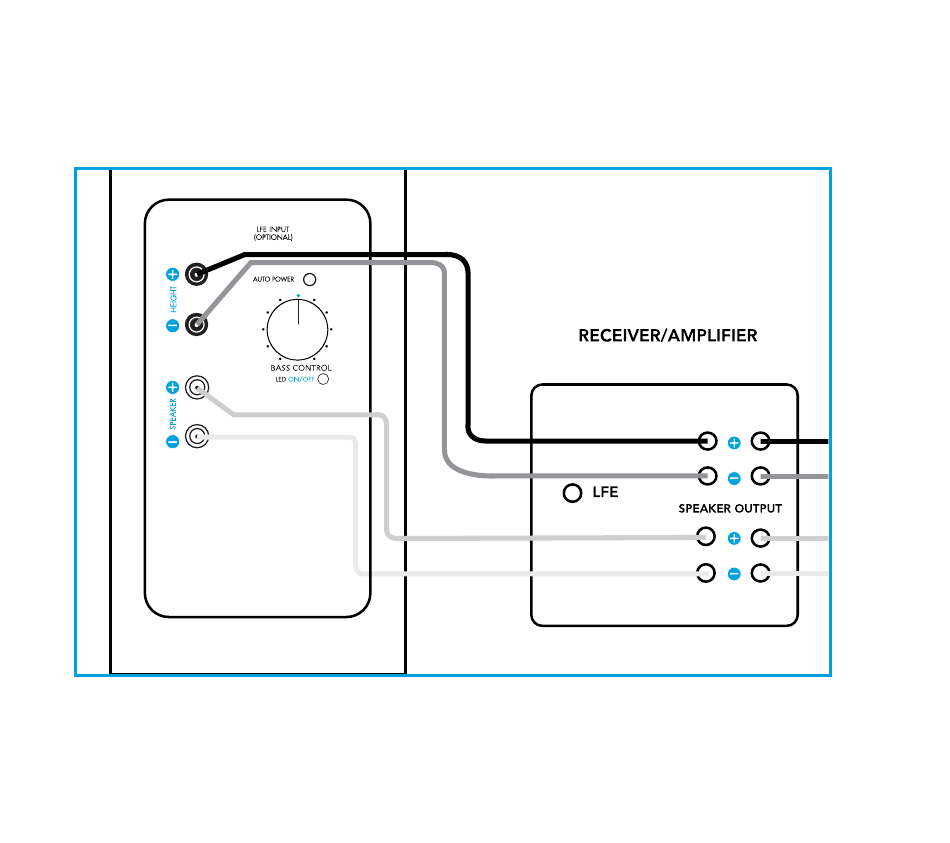

A90 ELEVATION MODULE CONNECTION

HEIGHT OUTPUT

Note: The A90 elevation speaker module for your BP9000 speakers requires an Dolby Atmos/DTS:X-enabled

receiver and is maximized by Dolby Atmos/DTS:X-encoded source material. Visit www.dolby.com or www.dts.com

for more information on available titles.
