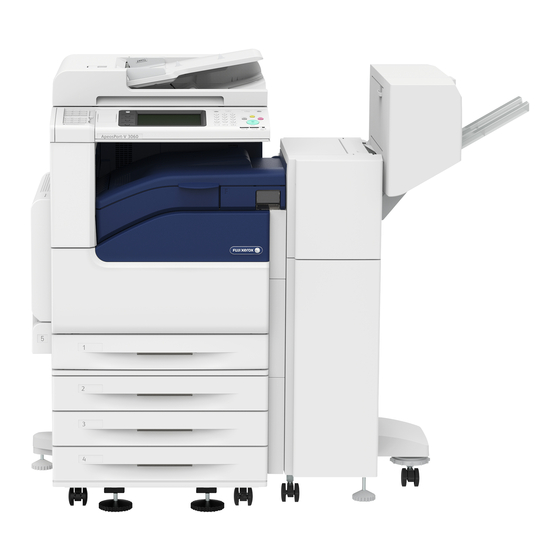

Fuji Xerox ApeosPort-V 3065 Manual

Administrator Guide (AG̲Eng.pdf / ME7494E2-1) P.619
Incorrect
Low Power mode: 81 W or less
Quick Reference Guide (QRG̲ID.pdf / ME7496ID0-1) P.20
Pemutus kegagalan arde tertanam dalam produk ini. Jika terjadi kebocoran
arus, pemutus kegagalan arde secara otomatis memutus sirkuit daya untuk
Incorrect mencegah sengatan listrik dan kebakaran. Pemutus kegagalan arde
normalnya HIDUP (ON). Periksa sekali sebulan apakah pemutus kegagalan
arde bekerja dengan baik sesuai dengan prosedur berikut ini:
Correct
The description including step 1 to 6 is deleted.
Quick Reference Guide (QRG̲ID.pdf / ME7496ID0-1) P.30
5 Tombol RESET Secara otomatis mematikan mesin bila terdeteksi ada
Incorrect
kebocoran arus listrik.
Correct
The description is deleted.
Quick Reference Guide (QRG̲ID.pdf / ME7496ID0-1) P.38
Incorrect
Tombol <RESET>
Quick Reference Guide (QRG̲ID.pdf / ME7496ID0-1) P.93 Kapasitas Baki Kertas
Incorrect
Model 4 Baki
Standar:
500 lembar ™ 4 baki + 100 lembar (baki bypass)
Kapasitas kertas maksimum:
2.100 lembar (standar)
Model 2 Baki
Standar:
500 lembar ™ 2 baki + 100 lembar (baki bypass)
Kapasitas kertas maksimum:
1.100 lembar (standar)
Quick Reference Guide (QRG̲ID.pdf / ME7496ID0-1) P.92 Waktu Pemanasan
Incorrect
Bila HDD tidak diinstal:
32 detik atau kurang*
Bila daya utama dihidupkan, diperlukan 22 detik atau kurang*.
Bila HDD diinstal:
32 detik atau kurang*
Bila daya utama dihidupkan, diperlukan 14 detik atau kurang*.
*: Nilai ini berdasarkan suhu ruangan 24 °C dan pengaturan
default pabrik.
Quick Reference Guide (QRG̲ID.pdf / ME7496ID0-1) P.94 Pemakaian Daya Mode Tidur:
Incorrect
<ApeosPort-V 3065, DocuCentre-V 3065>
CPS (AC 115 V) CF (AC 115 V)
1.3 W atau kurang 1.0 W atau kurang
Correct
Low Power mode: 52 W (115 V), 51W (230V)
Correct
Tombol <RESET>
Tombol <TEST>
Correct
Model 4 Baki
Standar:
500 lembar ™ 4 baki + 96 lembar (baki bypass)
Kapasitas kertas maksimum:
2.096 lembar (standar)
Model 2 Baki
Standar:
500 lembar ™ 2 baki + 96 lembar (baki bypass)
Kapasitas kertas maksimum:
1.096 lembar (standar)
Correct
Bila HDD tidak diinstal:
32 detik atau kurang*
Bila daya utama dihidupkan, diperlukan 23 detik atau kurang*.
Bila HDD diinstal:
32 detik atau kurang*
Bila daya utama dihidupkan, diperlukan 14 detik atau kurang*.
*: Nilai ini berdasarkan suhu ruangan 23 °C dan pengaturan
default pabrik.
Correct
<ApeosPort-V 3065, DocuCentre-V 3065>
CPS (AC 115 V) CF (AC 115 V)
1.0 W atau kurang 1.3 W atau kurang
4
ApeosPort-V 3065 DocuCentre-V 3065
ApeosPort-V 3060 DocuCentre-V 3060

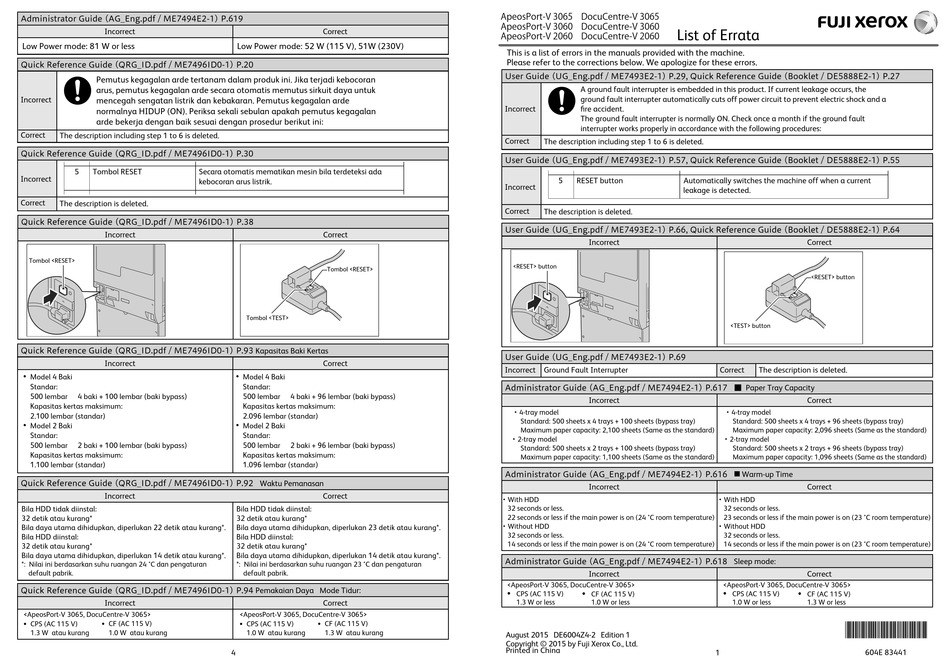

List of Errata

ApeosPort-V 2060 DocuCentre-V 2060
This is a list of errors in the manuals provided with the machine.
Please refer to the corrections below. We apologize for these errors.
User Guide (UG̲Eng.pdf / ME7493E2-1) P.29, Quick Reference Guide (Booklet / DE5888E2-1) P.27
A ground fault interrupter is embedded in this product. If current leakage occurs, the
ground fault interrupter automatically cuts off power circuit to prevent electric shock and a
Incorrect fire accident.
The ground fault interrupter is normally ON. Check once a month if the ground fault
interrupter works properly in accordance with the following procedures:
Correct
The description including step 1 to 6 is deleted.
User Guide (UG̲Eng.pdf / ME7493E2-1) P.57, Quick Reference Guide (Booklet / DE5888E2-1) P.55
5

RESET button

Incorrect
Correct
The description is deleted.
User Guide (UG̲Eng.pdf / ME7493E2-1) P.66, Quick Reference Guide (Booklet / DE5888E2-1) P.64
Incorrect
<RESET> button
User Guide (UG̲Eng.pdf / ME7493E2-1) P.69
Incorrect

Ground Fault Interrupter

Administrator Guide (AG̲Eng.pdf / ME7494E2-1) P.617 ■ Paper Tray Capacity
Incorrect
・ 4-tray model
Standard: 500 sheets x 4 trays + 100 sheets (bypass tray)
Maximum paper capacity: 2,100 sheets (Same as the standard)
・ 2-tray model
Standard: 500 sheets x 2 trays + 100 sheets (bypass tray)
Maximum paper capacity: 1,100 sheets (Same as the standard)
Administrator Guide (AG̲Eng.pdf / ME7494E2-1) P.616
Incorrect
・With HDD
32 seconds or less.
22 seconds or less if the main power is on (24 °C room temperature)
・Without HDD
32 seconds or less.
14 seconds or less if the main power is on (24 °C room temperature)
Administrator Guide (AG̲Eng.pdf / ME7494E2-1) P.618 Sleep mode:
Incorrect
<ApeosPort-V 3065, DocuCentre-V 3065>
CPS (AC 115 V) CF (AC 115 V)
1.3 W or less 1.0 W or less
August 2015 DE6004Z4-2 Edition 1
Copyright © 2015 by Fuji Xerox Co., Ltd.
Printed in China
Automatically switches the machine off when a current
leakage is detected.
Correct
<RESET> button
<TEST> button
Correct The description is deleted.
Correct
・ 4-tray model
Standard: 500 sheets x 4 trays + 96 sheets (bypass tray)
Maximum paper capacity: 2,096 sheets (Same as the standard)
・ 2-tray model
Standard: 500 sheets x 2 trays + 96 sheets (bypass tray)
Maximum paper capacity: 1,096 sheets (Same as the standard)

Warm-up Time

■
Correct
・With HDD
32 seconds or less.
23 seconds or less if the main power is on (23 °C room temperature)
・Without HDD
32 seconds or less.
14 seconds or less if the main power is on (23 °C room temperature)
Correct
<ApeosPort-V 3065, DocuCentre-V 3065>
CPS (AC 115 V) CF (AC 115 V)
1.0 W or less 1.3 W or less
1 604E 83441
