Flight Display Systems FD932DVD-BLU Installation And Operation Manual

Blu-ray/dvd/cd/mp3 player, component video
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

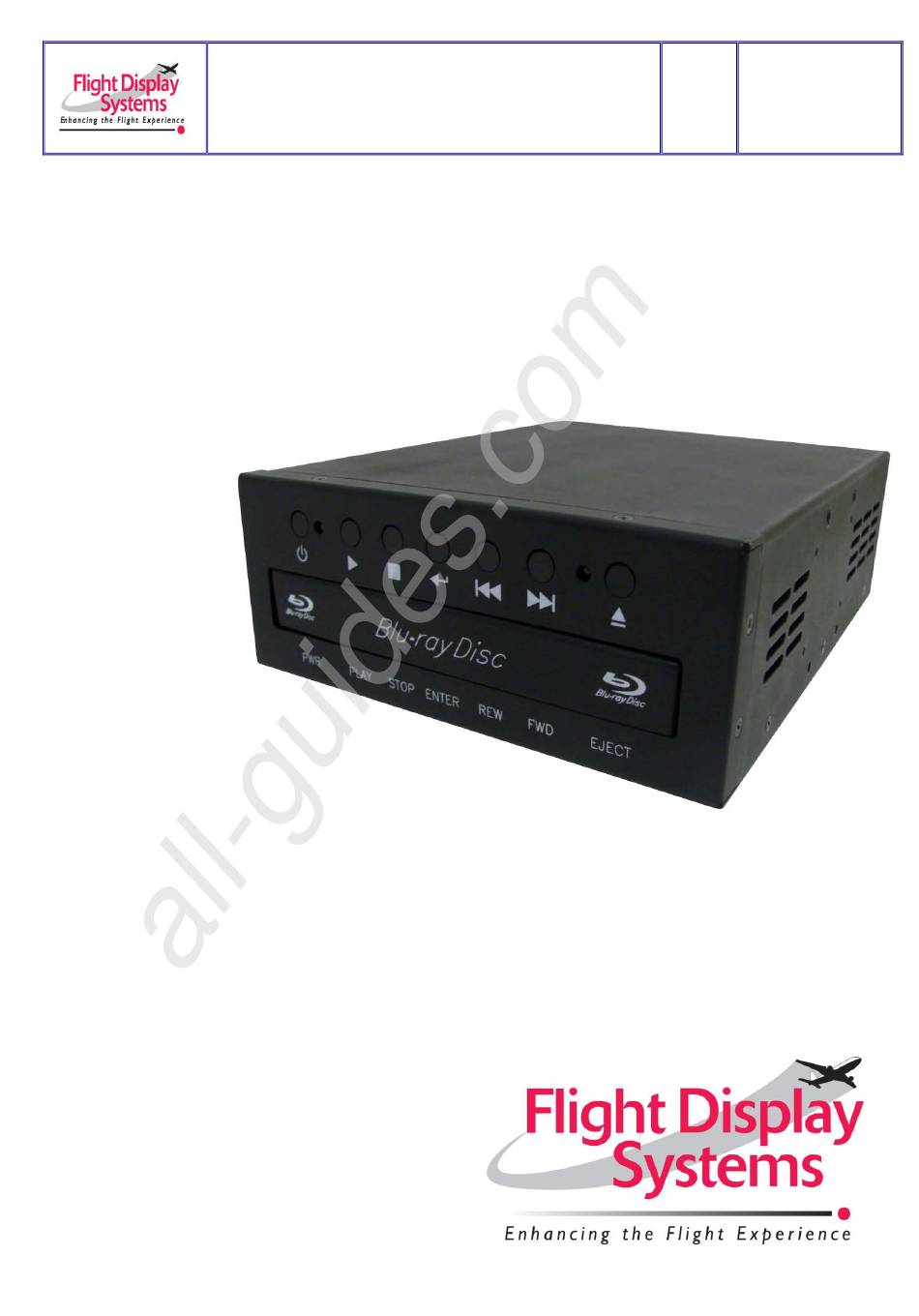

Document Number:
Rev:
Revision Date:
12/01/2011
Q
MAN – FD932DVD-BLU
Page 1 of 35
FD932DVD-BLU & FD932DVD-BLU Ver CV
Installation and Operation Manual
Blu-ray/DVD/CD/MP3 Player, Component Video
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD932DVD-BLU and is the answer not in the manual?

Questions and answers

Related Manuals for Flight Display Systems FD932DVD-BLU

Summary of Contents for Flight Display Systems FD932DVD-BLU

  • Page 1 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 1 of 35 FD932DVD-BLU & FD932DVD-BLU Ver CV Installation and Operation Manual Blu-ray/DVD/CD/MP3 Player, Component Video TECHNICAL SUPPORT 678-867-6717, or www.FlightDisplay.com...
  • Page 2 Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 2 of 35 FD932DVD-BLU & FD932DVD-BLU Ver CV BLU-RAY/DVD/CD/MP3 PLAYER, Component Video © 2009 Flight Display Systems. All Rights Reserved. Flight Display Systems 1765 Grassland Parkway Alpharetta, GA 30004 678-867-6717 Phone 678-867-6742 Fax sales@flightdisplay.com...

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 3 of 35 Table of Contents General Information ........................4 1. Features ..........................4 2. Front View ..........................4 3. Ventilation ..........................5 Specifications ..........................6 Installation Instructions ......................6 1.

  • Page 4: General Information

     Blu-ray playback through HDMI requires a HDCP compatible monitor  The unit is capable of outputting composite, and HD signals simultaneously  1 component video output (FD932DVD-BLU Ver CV). Contact your local sales associate for details on purchasing this Blu-ray version...

  • Page 5: Ventilation

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 5 of 35 DO NOT STARE INTO BEAM. Ventilation Slots and openings in the player are provided for ventilation, to ensure correct operation of the product.

  • Page 6: Specifications

    Approved Installation Instructions All cabin entertainment equipment, such as the FD932DVD-BLU & FD932DVD-BLU Ver CV, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system should become necessary.

  • Page 7: Front Panel

    Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 7 of 35 Power The FD932DVD-BLU & FD932DVD-BLU Ver CV requires 28VDC rated at 750mA to function. Front Panel 1. Standby/On 2. Power Indicator 3. Play 4. Stop 5. Enter/Menu 6.

  • Page 8: Assembly Of Connector Spring Latch

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 8 of 35 Assembly of Connector Spring Latch (WPI Interconnect Products P/N 17-529) Unlocked Locked Spring Latch Assembly Spring Latch Assembly #4-40 Latch, Spring...

  • Page 9: Video Wiring Suggestions

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 9 of 35 Video Wiring Suggestions Avoid routing video wiring parallel to:  AC wiring  Strobe wiring  DC motor supply cables ...

  • Page 10: Power And Ground Wiring

    The shield will be connected to the fuselage at one place only. NOTE: The FD932DVD-BLU has high impedence balanced outputs instead of the more popular low impedence inputs. This is usually not a problem. External audio level pads may be installed at the installer‟s discretion.
  • Page 11 Page 11 of 35 NOTE: On the following Pinout pages, Pin 14, 15, 16 are reserved for CAN BUS integration. The FD932DVD-BLU & FD932DVD-BLU Ver CV is only intended to easily integrate with the Flight Display Systems Select CMS. If more information regarding the CAN BUS integration with this device is required please contact Flight Display Systems Technical Support at 678-867-6717.

  • Page 12: Pinout For Db-25 Receptacle

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 12 of 35 Pinout for DB-25 Receptacle (For current Blu-ray players with embedded serial CODE: X10629XXX or X70014XXX,X70024XXX and Greater) Connector P/N: DB-F25CH...
  • Page 13 P/N: M39029/63-368 or Equivalent NOTE: Pin 14, 15, 16 are reserved for CAN BUS integration. The FD932DVD-BLU & FD932DVD-BLU Ver CV is only intended to easily integrate with the Flight Display Systems Select CMS. If more information regarding the CAN BUS integration with this device is required please contact Flight Display Systems Technical Support at 678-867- 6717.
  • Page 14 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 14 of 35 Pinout for DB-25 Receptacle (For older Blu-ray players with embedded serial CODE: X745XXX, X755XXX, X757XXX, X761XXX or X70001XXX) Connector P/N: DB-F25CH...

  • Page 15: Ship Kit Items

    12/01/2011 MAN – FD932DVD-BLU Page 15 of 35 Ship Kit Items Product FD932DVD-BLU & FD932DVD-BLU Ver CV Shipping Materials  (1) DB25F Latch Kit (750-DB25F-LATCH)  (1) Remote w/2 Batteries  (2) Angle, HD Enclosure Mounting (08N43)  (4) Screws, 6-32 Pan Head (300-63201-250) ...

  • Page 16: Rs485 Controls

    Page 16 of 35 RS485 Controls Full control of the FD932DVD-BLU & FD932DVD-BLU Ver CV can be achieved through a standard RS485 port on the rear panel. All controls available on the front panel and all controls on the Blu-ray remote control are supported.
  • Page 17 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 17 of 35 Actual face for button reference Image for RS485 Control Reference with command number layover...
  • Page 18 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 18 of 35 Available Commands For Units With Serial Number x10629 or x761 and Greater Actual remote for button reference Image for RS485 Control Reference...
  • Page 19 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 19 of 35 RS485 Commands Cont’d PA Commands: “PA ON” will enable PA interrupt. “PA OFF” will disable PA interrupt. NOTE: “PA ON” command must be received every 9 seconds or interrupt will time out.

  • Page 20: Infrared Control

    Page 20 of 35 Infrared Control The FD932DVD-BLU & FD932DVD-BLU Ver CV has the ability to use an infrared external eye, which is supplied by Flight Display Systems. The following guidelines should be met when using the external IR eye to insure correct and optimal operation.

  • Page 21: Operating Instructions

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 21 of 35 Operating Instructions Using Front panel and Remote Control Basic Playback Playback 1. Press the PWR button on the front panel to turn 1.
  • Page 22 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 22 of 35 Expanded Operating Instructions Using Remote Control This functionality cannot be utilized from the front panel. Operation Instructions continued: Angle During playback, press this button to change the angle of the picture.

  • Page 23: Remote Control

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 23 of 35 Remote Control Function Function STANDBY 16. On Remote ONLY: COLOR Buttons: RED 2. On Screen Display (OSD) (A),GREEN (B),YELLOW (C),BLUE (D) 3.
  • Page 24 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 24 of 35...
  • Page 25 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 25 of 35 Operating with the Remote About 7m 30° 30° Distance: Approximately 7m (23 feet) from The front of the remote sensor.
  • Page 26 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 26 of 35 IMPORTANT NOTICE: THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO BD DISCS. IF OTHER DISC FORMATS ARE PLAYED, SCREEN DISPLAY AND OPERATION WILL BE DIFFERENT.
  • Page 27 Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 27 of 35 There are two instructions for Region setup (depending on the Blu-ray) 1) If you have the Blu-ray with a transparent menu on the left side of the screen that says (28 product code), open the Blu-ray, press setup and immediately press 9113.

  • Page 28: Region Codes

    Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 28 of 35 Region Codes 0 – Informal term meaning “worldwide.” Region 0 is not an official setting; discs that bear the region 0 either have no flag set or have region 1-6 flags set.
  • Page 29 2. Burn this file to a DVD or CD 3. Put the disc into the FD932DVD-BLU 4. After reading the disc, the screen connected to the FD932DVD-BLU will prompt you to select the “Update” button 5. Press ENTER on your remote 6.

  • Page 30: Technical Drawing

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 30 of 35 Technical Drawing...

  • Page 31: Troubleshooting

    • Replace battery in remote control. Will not Physically Accept Discs The FD932DVD-BLU & FD932DVD-BLU Ver CV may be in Standby Mode. Even though you may be able to hear a cooling fan blowing air, the Blu-ray player may still be in standby mode.

  • Page 32: Technical Support

    For further product information, technical data and sample wiring diagrams, please click on the Dealers section of our web site at www.flightdisplay.com Instructions for Continued Airworthiness The FD932DVD-BLU & FD932DVD-BLU Ver CV is designed not to require regular general maintenance.
  • Page 33 If the return of the unit to the factory is required, an RMA number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our discretion.
  • Page 34 Updates made to Audio Inputs Updated Command Notes, additional note on PA M** 09/06/2011 15, 18 Commands Added instructions for Region setup, added low audio volume info, updated warranty info, corrected 10/12/2011 REV, Added FD932DVD-BLU Ver CV info/pin, additional serial numbers added to pinouts...
  • Page 35 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 12/01/2011 MAN – FD932DVD-BLU Page 35 of 35 Added new faceplate image, added firmware update 12/01/2011 15, 17, 28 info, updated shipping kit info...
