INSTALLATION – Current Transformer
IMPORTANT Current Transformer Rules
•

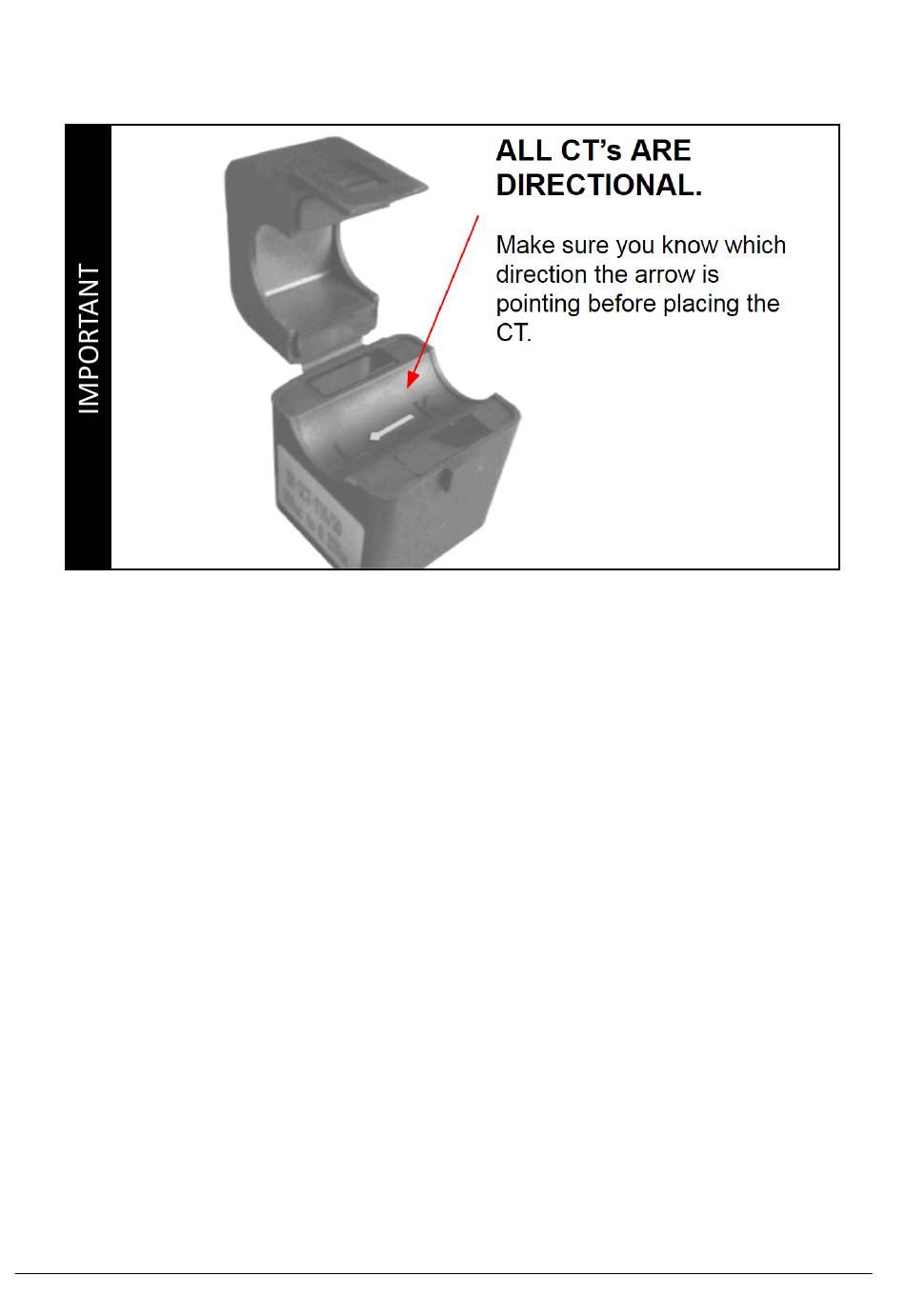

The arrows next to the CT's in the wiring diagram represent the
arrows on the inside of the CT's.
•
Matching the CT's to the correct phase is critically important
special care must be taken to ensure this happens.
•
NEVER disconnect CT's from the Solar Relay while they are
wrapped around a current carrying conductor.
•
Multiple wires can be put through the CT, as long as all currents are
in the same direction and in phase.
